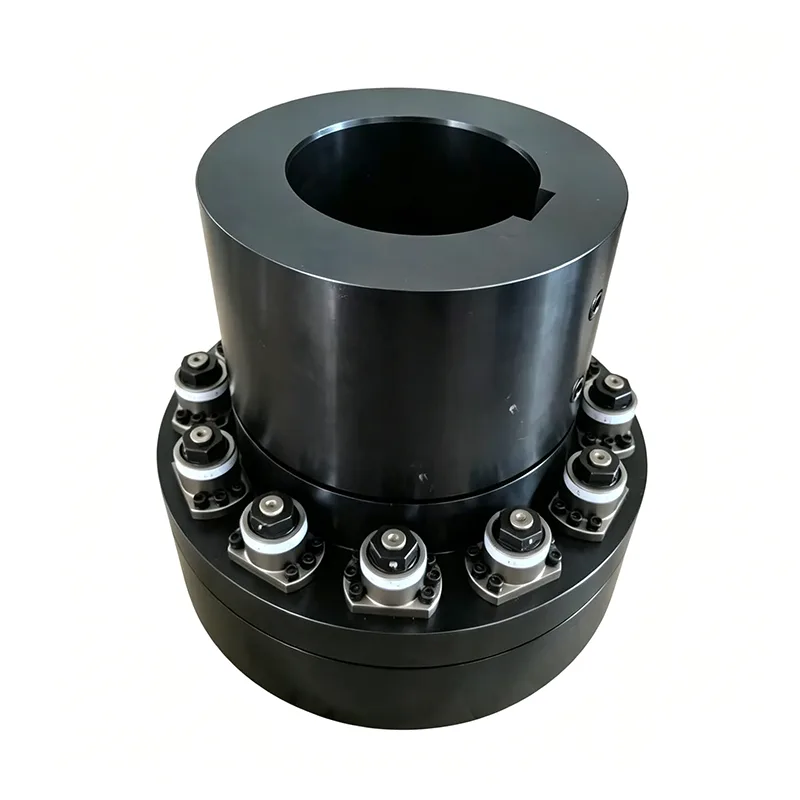

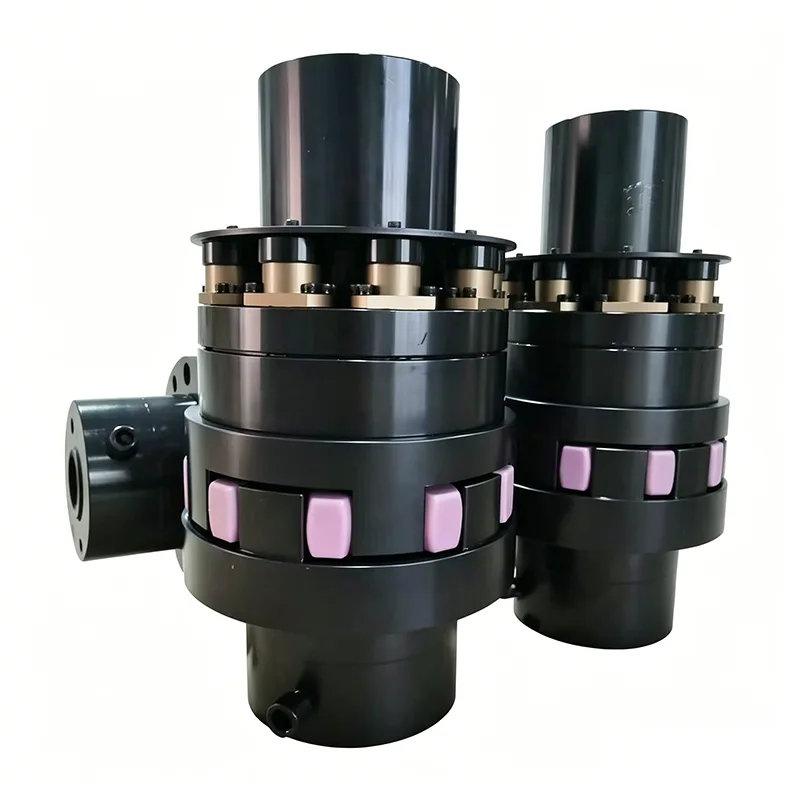

As a professional manufacturer and supplier of transmission components, Jiteng presents the Modular Torque Limiter—a mechanical overload protection assembly specifically developed by our company. Its core highlight lies in its standardized, modular architecture. Unlike conventional one-piece torque limiters, this system allows for flexible configuration of torque units, connection modules, and complementary accessories based on specific on-site requirements, enabling the creation of tailored protection solutions.
The product is available in two structural types: friction-based and ball-detent-based. When torque exceeds a preset threshold, the friction-based model provides continuous slip protection, while the ball-detent model instantly disengages to cut off power transmission. These two distinct forms effectively cover a wide spectrum of protection requirements.
Different torque units and connection modules can be freely combined to flexibly adapt to various transmission systems, including conveyors, packaging machinery, and automated production lines. The product interfaces comply with universal standards, allowing for direct integration with standard components such as IEC motors, reducers, sprockets, and pulleys—eliminating the need for additional machining or custom adapter structures. This ensures highly convenient on-site installation and integration.
Individual modules—such as friction plates, springs, and sensors—can be replaced quickly and independently. This eliminates the need to dismantle the entire transmission assembly during maintenance, thereby significantly reducing equipment downtime. All modules are standardized, mass-produced components, facilitating easy procurement and stocking; this effectively alleviates inventory pressure and reduces procurement costs for businesses.
Torque settings are precise with minimal deviation, and parameters remain stable even after repeated adjustments, ensuring no performance degradation over long-term use. The friction-based structure provides continuous slip protection, while the ball-detent structure enables instantaneous power disconnection; each structure fulfills its specific function, effectively meeting overload protection requirements across diverse operating conditions.
The Modular Torque Limiter is suitable for use with belt conveyors, chain conveyors, bucket elevators, and similar equipment. It effectively prevents failures—such as broken shafts or damaged gear teeth—caused by material jamming or shaft seizure, thereby ensuring the stable and reliable operation of material handling systems.
When integrated with strapping machines, labeling machines, and various automated production lines, the system acts as a buffer against instantaneous impact loads. It protects the precision internal transmission mechanisms of the equipment, preventing component damage caused by sudden mechanical shocks.
Applicable to equipment such as cranes, electric hoists, and positioning motor systems, it strictly limits operating torque to prevent safety accidents caused by overloading, thereby enhancing the safety coefficient of lifting operations.
Installable on heavy-duty machinery—including mixers, crushers, and woodworking equipment—it effortlessly withstands impact loads and momentary overloads during operation, reinforcing equipment operational safety.
The Modular Torque Limiter effectively mitigates common industrial equipment issues such as material jamming, gearbox shaft fractures, and gear tooth chipping. Simultaneously, it prevents cascading secondary failures triggered by operational errors, thereby reducing the frequency of equipment malfunctions.
Its modular structure facilitates easy integration and retrofitting into existing equipment; installation, disassembly, and commissioning are straightforward. This design aligns perfectly with the production requirements of automated lines, which demand rapid line changeovers and minimal downtime. When paired with sensors, it also enables intelligent overload monitoring, elevating the overall automation level and safety rating of the equipment.
While the initial purchase price of the Modular Torque Limiter is comparable to that of traditional one-piece torque limiters, subsequent maintenance costs can be reduced by 30% to 50%. The highly standardized modules offer strong versatility and short lead times, ensuring that production lines do not grind to a halt due to spare parts shortages, thereby guaranteeing production continuity.
The standardized, modular design simplifies equipment assembly, maintenance, and retrofitting, enabling equipment manufacturers to optimize their product structures more effectively. Furthermore, the inclusion of intelligent protection features endows the complete machine with a distinct market advantage when compared to similar products in its class.
As the original manufacturer, we have independently developed and produced this entire modular system in-house. All module dimensions and interfaces are standardized and unified, allowing for the complete interchangeability of components across different specifications—ensuring unrestricted selection and replacement options in the field.
We offer two distinct structural designs: friction-type and steel-ball-type. Based on the specific requirements of the customer's site—whether continuous buffering/slippage or instantaneous force disconnection is needed for protection—we can precisely recommend the optimal solution, ensuring a perfect match between the product and the specific operating conditions.
We provide clients with complete modular configuration solutions, installation guidance, and parameter calibration services. Standard modules are kept in stock to ensure rapid delivery; additionally, we support customized configurations based on these standard modules to meet specific operational requirements.
Prior to shipment, every Modular Torque Limiter undergoes rigorous torque testing, durability testing, and operational condition simulations. This ensures precise torque settings and guarantees that performance remains undiminished over the long term, thereby providing industrial equipment with durable and stable overload protection.
