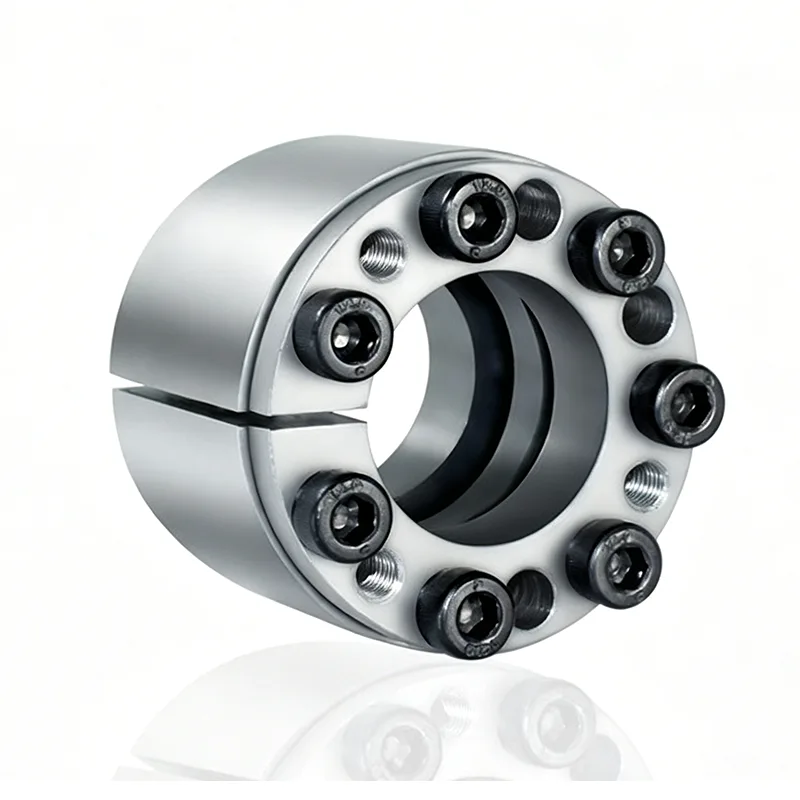

Type Z12 Locking Assembly

The Type Z12 Locking Assembly is a high-strength, keyless connection component specifically developed for large-diameter transmission shafts. Utilizing the principle of tapered-surface friction locking, it achieves precise centering and stable torque transmission. With its integrally thickened, forged construction, it exhibits outstanding resistance to torsion and impact, making it perfectly suited for the high-torque, continuous heavy-load operating conditions typical of heavy industry.

Materials, Processing, and Transmission Reliability

1.  Forged and Heat-Treated Alloy Steel; Superior Mechanical Properties

Crafted from high-quality alloy steel through an integral forging process, and paired with professional tempering and quenching heat treatments, the finished product boasts high hardness and balanced toughness. It exhibits exceptional wear resistance and deformation resistance, ensuring that structural fatigue damage is unlikely to occur during prolonged heavy-load operation.

2.  Large-Surface Uniform Clamping; Zero Offset and No Slippage

The tapered surfaces provide ample contact area, ensuring that the clamping force is distributed uniformly across the entire contact zone once locked, leaving no "dead spots" in force application. During full-load operation of the equipment, there is no risk of transmission slippage or axial displacement; power transmission remains stable and reliable throughout the entire process, effectively eliminating issues related to power attenuation.

3.  Keyless "Cold-Fit" Structure; Long-Term Protection for the Main Shaft

Utilizing a keyless assembly method, this component eliminates the need for slotting or drilling operations on large-diameter shafts or hubs. This preserves the original structural integrity of the main shaft at the source, effectively reducing the probability of failures such as shaft breakage, shaft wear, or loose connections, thereby lowering the overall failure rate of the equipment's transmission system.

4.  Flexible and Adjustable Assembly; Supports Load Expansion via Multiple Units

The Type Z12 Locking Assembly employs a "cold-fit" installation process—requiring no heating equipment—whereby locking and positioning are achieved simply by tightening the fastening bolts. The installation position can be freely fine-tuned, and disassembly for future maintenance is convenient. Furthermore, the system supports the combined installation of multiple units, effectively boosting overall transmission torque to accommodate ultra-high-load operating conditions.

Comprehensive Operational Adaptability

1. Dedicated Large-Bore Adaptation: Specifically engineered to match equipment with large shaft diameters. Designed for the transmission connections of large-diameter drive shafts, it precisely fits the shaft specifications of various heavy industrial machinery, effectively resolving common pain points associated with standard locking assemblies—namely, insufficient bore size, inadequate load-bearing capacity, and poor compatibility.

2. Direct, Modification-Free Installation for New and Existing Equipment: The Type Z12 Locking Assembly boasts exceptional versatility and adheres to universal industry standard dimensions. It requires no structural modifications to the main equipment body, allowing for direct integration into new equipment during pre-assembly or serving as a direct replacement for transmission upgrades in aging heavy machinery. This ensures a low barrier to retrofitting and rapid implementation speeds.

3. Fatigue-Resistant and Resilient to Alternating Loads; Supports 24/7 Continuous Operation: Exhibiting superior resistance to fatigue and alternating loads, this assembly is capable of enduring the continuous, high-load operating conditions typical of heavy industrial machinery over extended periods. It maintains stable locking integrity even when subjected to frequent load fluctuations and continuous shock loads, ensuring high durability and longevity in long-term operation.

Practical Value

1. Comprehensive Standard Specifications; High Interchangeability for Easy Replacement: The entire product series is manufactured to standardized specifications, featuring a complete model lineup and excellent interchangeability. In the event of damage, units can be directly replaced with matching counterparts without the need for secondary machining or adaptation, thereby significantly reducing the complexity of equipment maintenance and component replacement.

2. No Wear-Prone Components; Achieves Maintenance-Free Operation: The Type Z12 Locking Assembly contains no consumable or wear-prone parts, featuring a robust and durable structural design. It requires no routine lubrication or periodic inspection and maintenance, substantially reducing the labor and material costs associated with equipment operation and maintenance, and offering outstanding long-term economic efficiency.

3. Optimized for Heavy Industry Scenarios; Maximized Versatility: Widely compatible with heavy-duty transmission applications—including large-scale fans, mining equipment, heavy-duty conveyor systems, heavy-duty gear reducers, and construction machinery—it stands as the preferred keyless connection component for high-torque transmission systems in heavy industrial equipment.

Specialized Load-Bearing Advantages for Heavy-Duty Applications

Distinguished from conventional small-to-medium-sized locking assemblies, the Type Z12 Locking Assembly features a specialized, thickened, and integrated heavy-duty structure. It is specifically optimized to handle conditions involving ultra-heavy loads, shock loads, and continuous full-load operation.

1. Thickened, One-Piece Forging—Maximized Structural Rigidity: Featuring a thickened, integral forged structure, its overall rigidity far exceeds that of standard locking assemblies. Compressive and torsional resistance are significantly enhanced, structurally meeting the extreme load requirements of heavy-duty equipment.

2. Withstands Extreme Rated Torque—Deformation-Free Operation: Capable of stably sustaining exceptionally high rated torque and radial loads over extended periods. It remains free from structural deformation or loosening issues during continuous heavy-load operation, ensuring superior load-bearing stability.

3. Resilient Against Sudden Impacts—Highly Adaptable to Operating Conditions: Even when subjected to the transient impact loads generated by equipment start-ups, shut-downs, or sudden load fluctuations, it maintains a steadfast lock. It prevents loosening, slippage, or structural misalignment, thereby safeguarding continuous, full-capacity production in heavy industrial machinery.

Basic Dimensions and Parameters of Type Z12 Locking Assemblies

Purchase Now

As a professional Chinese manufacturer and supplier of locking assemblies, Jiteng offers the High-Performance Type Z12 Locking Assembly, featuring an easy-to-maintain structure. All products are kept in stock for rapid delivery, and we welcome bulk orders backed by our commitment to consistent quality. We provide direct-from-factory supply with strict quality control and offer competitive factory-direct pricing, helping our global clients reduce procurement costs and shorten delivery cycles for heavy machinery transmission applications.
