Type Z6 Locking Assembly

Jiteng is a professional manufacturer and supplier of Type Z6 Locking Assembly in China. We utilize a thickened, widened, and integrally forged alloy structure that has undergone deep heat treatment for enhanced strength, endowing it with exceptional load-bearing capacity and resistance to environmental interference. Featuring a keyless, heat-free installation design, the assembly supports capacity expansion through multi-unit series connection and is capable of withstanding massive impact loads over extended periods.

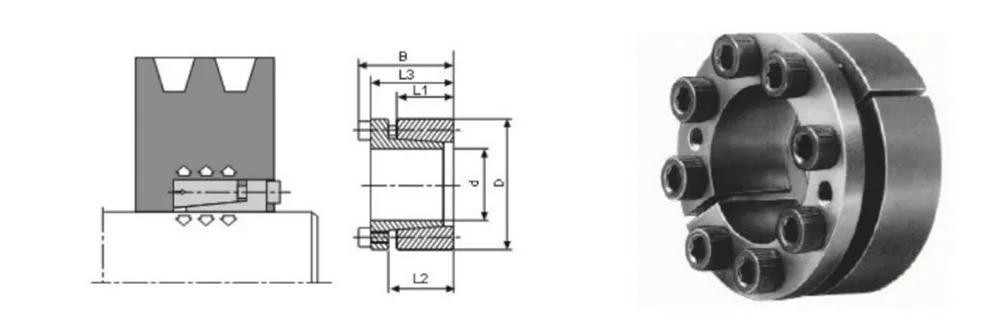

Basic Dimensions and Parameters of Type Z6 Locking Assemblies

Core Product Features

1. Thickened, Widened, and Integrally Forged Structure

The Type Z6 Locking Assembly is formed using an ultra-thick, ultra-wide integral forging process, utilizing carefully selected, high-quality, high-strength alloy steel raw materials. The conical contact area has been significantly expanded, ensuring uniform axial force distribution while providing a radial clamping force that remains consistently strong and stable over time. It is capable of withstanding massive static, dynamic, and alternating impact loads over the long term, making it ideally suited for extreme, high-intensity operating environments such as those found in mining, metallurgy, and port operations.

2. Keyless and Hole-Free Assembly

During installation and operation, there is no need to machine keyways or positioning holes into the shaft or hub components, thereby fully preserving the original mechanical strength of the workpieces. This fundamentally eliminates common failure modes—such as shaft breakage, shaft distortion, loose connections, and transmission failure—resulting in smoother equipment transmission and significantly enhanced operational safety.

3. Heat-Free Installation; No Precision Tooling Required

Installation requires neither heating (shrink-fitting) processes nor high-precision specialized tooling; the assembly can be quickly locked into position simply by tightening the bolts, allowing for freely adjustable installation placement. Even after prolonged operation, disassembly remains trouble-free, avoiding issues such as seizing or jamming. Furthermore, the design supports the use of multiple units in series, breaking through the torque limitations of single components to meet the ultra-high torque transmission demands of massive-scale equipment.

4. Deep Heat Treatment Process

Through a deep tempering and quenching heat treatment process, the product achieves high hardness, excellent toughness, and superior resistance to compression and deformation. The surface features a multi-layer anti-rust and anti-corrosion treatment, offering exceptional resistance to wear, extreme temperatures (both high and low), acids, alkalis, and oil contamination. This enables the assembly to withstand the corrosive effects of various harsh operating conditions, ensuring long-term, stable service performance.

Performance Advantages

1. Ultra-High Structural Rigidity

The overall structure of the Type Z6 Locking Assembly possesses extremely high rigidity, offering a high maximum load-bearing capacity and exceptional vibration resistance. Even when subjected to harsh operating conditions—such as frequent start-stops, sudden load fluctuations, or prolonged continuous operation at full capacity—the assembly maintains precise coaxial alignment and consistently stable transmission accuracy, remaining free from issues involving misalignment, loosening, or slippage.

2. Effective Vibration Damping and Noise Reduction

It effectively dampens operational vibrations and suppresses transmission noise, thereby minimizing mechanical wear on transmission components—such as shafts, hubs, and bearings. This significantly slows down the rate of component deterioration and extends the equipment's overall service life.

3. Enhanced Transmission Efficiency

Featuring a stable, backlash-free friction-based transmission structure, the assembly effectively boosts the overall transmission efficiency of the machinery while minimizing power loss. It leads to a substantial reduction in equipment failure rates and a marked decrease in the frequency of downtime for maintenance, thereby helping enterprises continuously improve their overall production and operational efficiency.

Maintenance Recommendations

1. Periodic Bolt Retightening and Inspection: For operating conditions involving frequent start-stops or heavy shock loads, it is recommended to periodically inspect the tightness of the locking bolts. Prolonged vibration can lead to slight loosening; timely retightening prevents transmission misalignment and uneven load distribution, thereby averting slippage issues under heavy loads.

2. Surface Cleaning and Corrosion Inspection: Periodically remove accumulated dust, grease, and acid/alkali residues from the surface of the Type Z6 Locking Assembly, and inspect the integrity of the surface's anti-corrosion coating. In harsh environments characterized by high humidity, acidic/alkaline substances, or oil contamination, promptly repair any damaged protective layers to prevent localized corrosion from compromising the structural integrity of the assembly.

3. Specialized Inspection for Series Configurations: In applications where multiple locking assemblies are utilized in series, it is essential to periodically inspect the contact and load-bearing status of each individual locking set. This ensures that the load is distributed evenly across all sets, preventing fatigue damage caused by overloading on a single unit, and thereby safeguarding the assembly's overall capacity to handle ultra-high torque loads.
