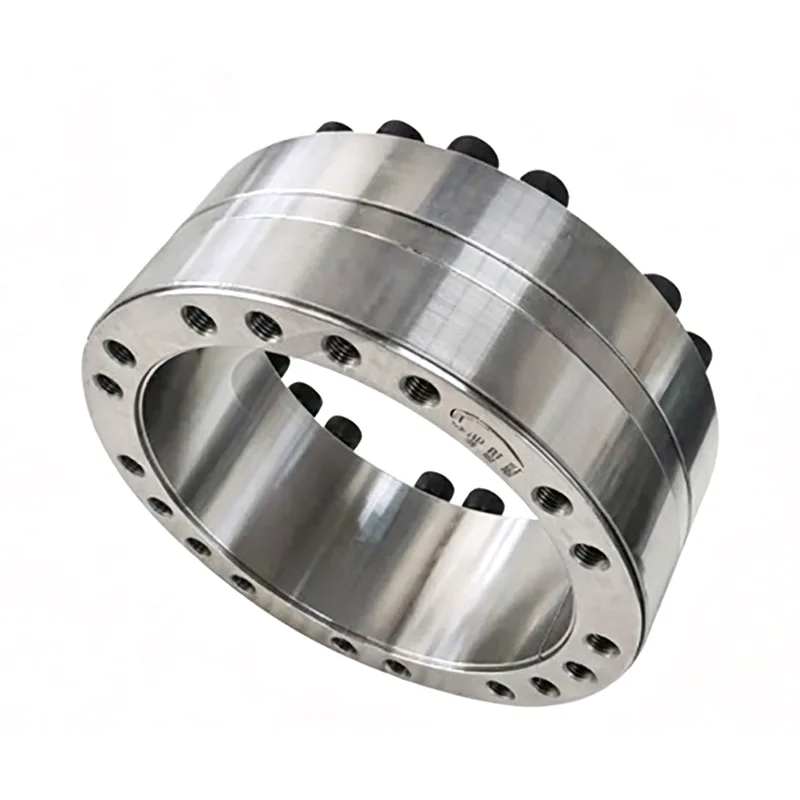

Type Z5 Locking Assembly

The Type Z5 Locking Assembly is a specialized connecting component designed for heavy-duty equipment featuring large-diameter shafts. It eliminates complex assembly procedures—requiring neither thermal fitting nor specialized tools—and boasts an exceptionally low barrier to installation. It supports the serial connection of multiple units to accommodate varying torque requirements, is compatible with both new and legacy heavy industrial machinery, serves as a direct replacement for imported components, and is engineered to withstand extreme operating conditions, thereby facilitating cost-effective upgrades to equipment transmission systems.

1.Type Z5 locking assembly is used for the connection between a shaft and components mounted on the shaft, to transmit torque, axial force, or a combined load of both.

2.The tolerance zone for the shaft mated with the locking assembly is h8, and the tolerance zone for the bore is H8.

Marking Example:

Type Z5 locking assembly with inner diameter d=300mm and outer diameter D=375mm:

Locking Assembly: Z5-300×375

GB 5867-86

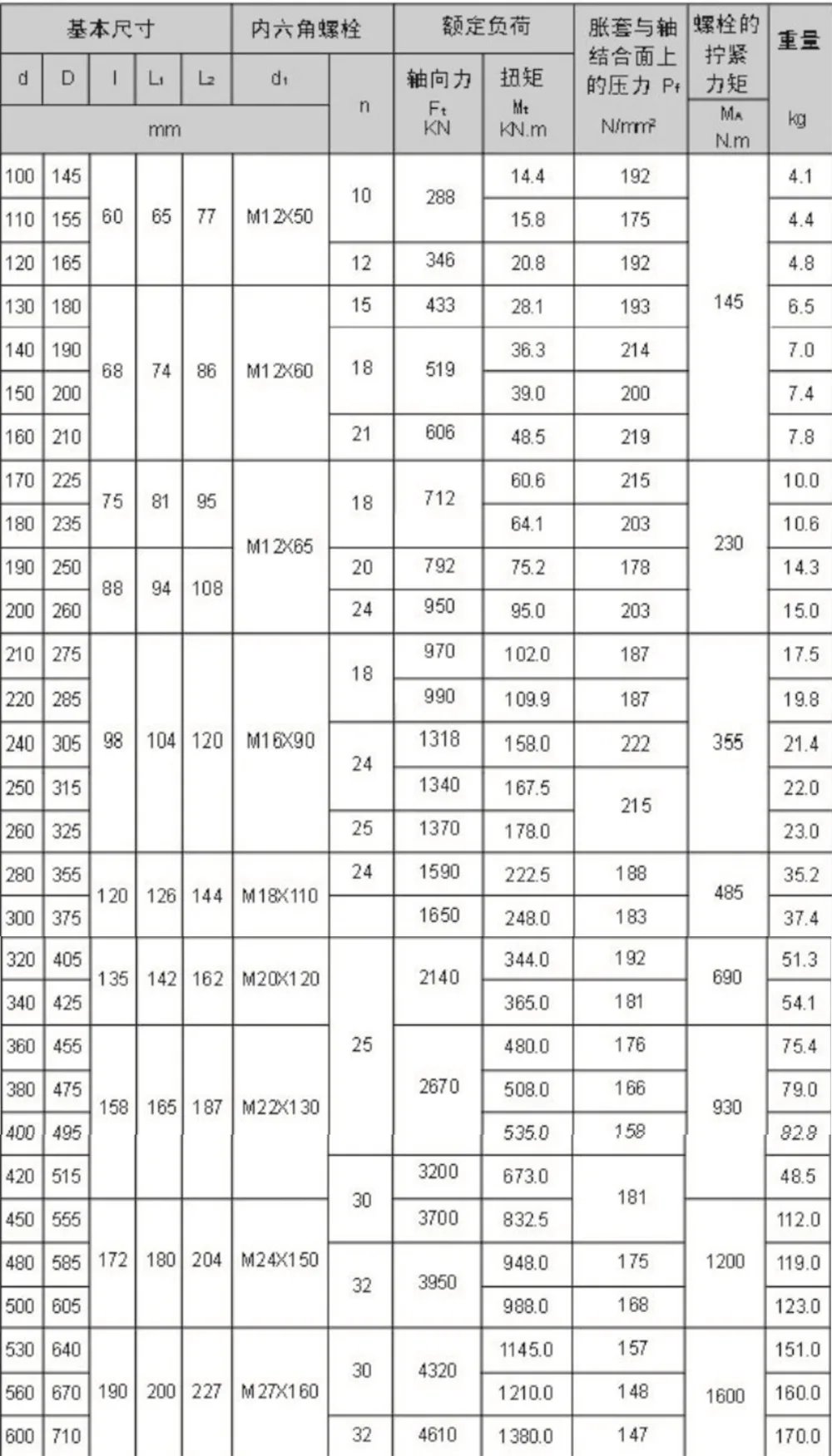

Basic Dimensions and Parameters of Type Z5 Locking Assemblies (GB 5867-86)

Installation and Application Advantages

The Type Z5 Locking Assembly is specifically optimized to address common pain points associated with the on-site installation, commissioning, and maintenance of large-scale heavy industrial machinery. It streamlines the entire operational workflow, reduces the difficulty of on-site construction, lowers labor costs, and adapts seamlessly to the diverse and variable installation conditions encountered at various job sites.

1. Simplified Assembly Process, Zero Technical Barrier: The product completely eliminates the complex assembly procedures typical of traditional heavy-duty connecting components. It requires neither high-temperature thermal fitting processes nor custom-made specialized tooling; locking and securing can be achieved using only standard fasteners. On-site installation presents no technical barriers, allowing even operators with no prior technical background to complete assembly tasks efficiently, making it suitable for a wide range of construction site scenarios.

2. Precise Axial Micro-Adjustment, High Alignment Efficiency: During assembly, the product allows for free and precise fine-tuning of the axial position. Aligning the equipment's shaft center and performing precision calibration are simple and rapid operations. This effectively resolves the challenges associated with difficult alignment and tedious calibration in large-scale machinery, significantly shortening the overall installation and commissioning cycle for the complete machine.

3. Smooth, Jam-Free Disassembly, Reduced Downtime Losses: During subsequent routine maintenance, component replacement, or operational upgrades, the product can be easily loosened and removed. The process remains entirely free of jamming or seizing failures, thereby drastically reducing equipment downtime required for servicing and ensuring the continuous, stable operation of the production line.

4. Modular Series Connection, Flexible Load Adaptability: The system supports the flexible combination and serial connection of multiple Type Z5 locking assemblies. This allows users to dynamically adjust the overall load-bearing capacity based on the equipment's actual operational torque requirements. It enables adaptation to a wide variety of load conditions without the need to replace components with different specifications, thereby significantly reducing the complexity and labor costs associated with on-site commissioning.

Equipment Compatibility Performance

As a specialized connecting component designed exclusively for heavy-duty applications involving large-diameter shafts, the Type Z5 Locking Assembly boasts exceptional equipment compatibility. It covers the full spectrum of application scenarios—including integration into new machinery, retrofitting of legacy equipment, and direct replacement of imported components—and is engineered to withstand the most extreme operating conditions encountered in heavy industry.

1. Seamless Replacement for Imported Parts; Localized Production for Cost Reduction: Compatible with a wide range of large-scale, heavy-duty host machinery, these components offer high interchangeability and serve as direct replacements for numerous high-end imported locking assemblies. Their transmission performance and locking precision rival those of imported products, enabling users to achieve equivalent operational results at significantly lower procurement costs.

2. Non-Destructive Retrofitting for Enhanced Equipment Performance: Designed for upgrading the transmission systems of aging heavy industrial machinery, these components require no modification to the equipment's main structural body. Direct replacement and installation effectively boost transmission stability and increase the overall load-bearing capacity of the equipment—a retrofitting process characterized by its simplicity, low investment cost, and remarkable performance improvements.

3. Simplified New Machine Design; Accelerated R&D Cycles: When integrated into brand-new heavy industrial machinery, these components allow for the streamlining of transmission system layouts and the elimination of redundant structural elements. This effectively shortens the overall R&D, structural optimization, and mass production cycles for the complete machine, thereby enhancing the efficiency with which equipment manufacturers bring new products to market.

4. Adaptability to Extreme Conditions; Elevated Equipment Quality: Capable of withstanding a diverse array of complex and extreme industrial operating environments, these components provide a one-stop solution for upgrading the high-torque transmission connections of large-scale machinery. They effectively enhance the equipment's overall operational precision, stability, and comprehensive quality, thereby reinforcing its long-term performance and durability.
