For bulk purchases of the Type Z1 Locking Assembly, direct supply from the original manufacturer, Jiteng, is available. Featuring a streamlined design with an integrated conical ring, this assembly enables keyless friction transmission with zero backlash. It allows for rapid installation without the need for heating or specialized tools. Compact in size and highly adaptable, it is available in a full range of standard stock specifications and supports custom non-standard dimensions. It is widely suited for precision transmission applications involving small to medium torque—such as in automation systems, CNC machinery, and light industrial equipment.

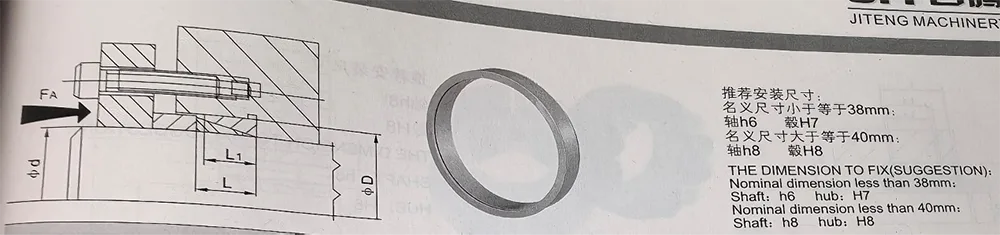

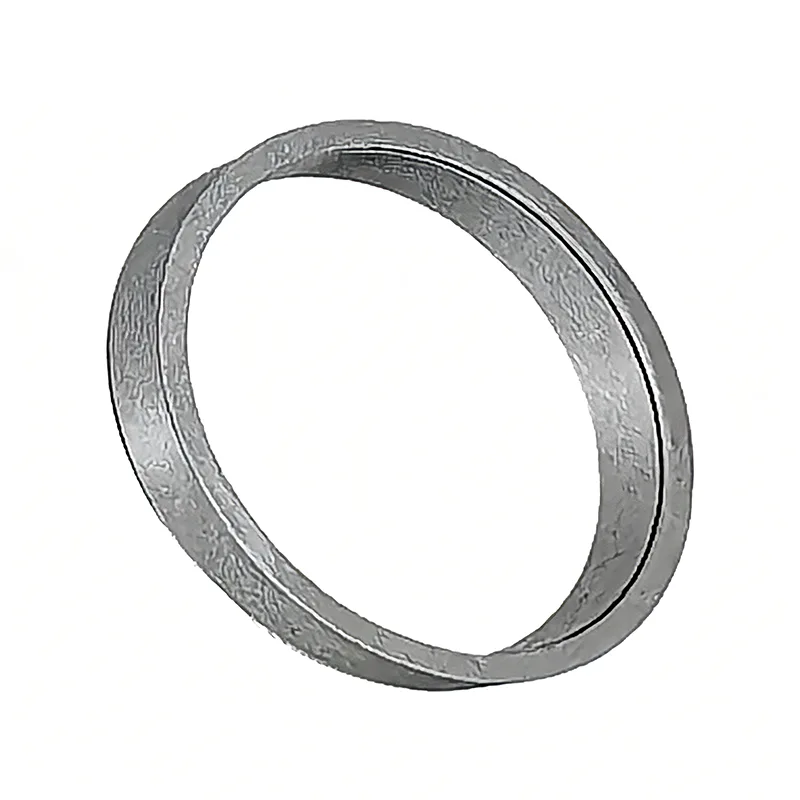

The Type Z1 Locking Assembly utilizes a streamlined, integrated structure comprising inner and outer conical rings. It requires no additional auxiliary clamping components, resulting in a shorter overall axial length and lighter weight.
It effectively resolves the drawbacks associated with traditional connection components—namely, their bulkiness and excessive space requirements. Specifically designed for compact transmission systems where internal installation space is limited, it serves as a standard, essential component for small-scale precision transmission equipment.
By eschewing traditional keyway connection structures, the shaft and hub require no slotting or drilling operations. This fundamentally eliminates potential failure modes such as reduced shaft strength, stress concentration, key wear, and loosening during long-term operation.
Torque is transmitted via uniform friction generated by the compressive force between the conical surfaces, achieving backlash-free transmission. This ensures high coaxiality precision and smooth operation, significantly extending the service life of core transmission components and effectively reducing long-term maintenance and operational costs.
On-site assembly requires neither heating nor press-fitting processes, nor does it necessitate specialized tooling. Installation and secure fastening can be completed rapidly simply by applying pressure to the end face.
The disassembly process is simple and convenient, and the installation position allows for precise micro-adjustment, thereby significantly enhancing the efficiency of equipment assembly, maintenance, and retrofitting.
Multiple units can be installed in series to meet specific load requirements, effectively boosting overall load-bearing capacity and accommodating a diverse range of torque transmission conditions.
The Type Z1 Locking Assembly is specifically engineered for precision transmission applications involving small to medium torque. It is compatible with a broad spectrum of equipment types, offering exceptional versatility.
Its primary applications include precision transmission mechanisms found in automation equipment, packaging machinery, printing machinery, textile machinery, CNC machine tools, small-scale speed reducers, conveyor systems, and servo drive assemblies.

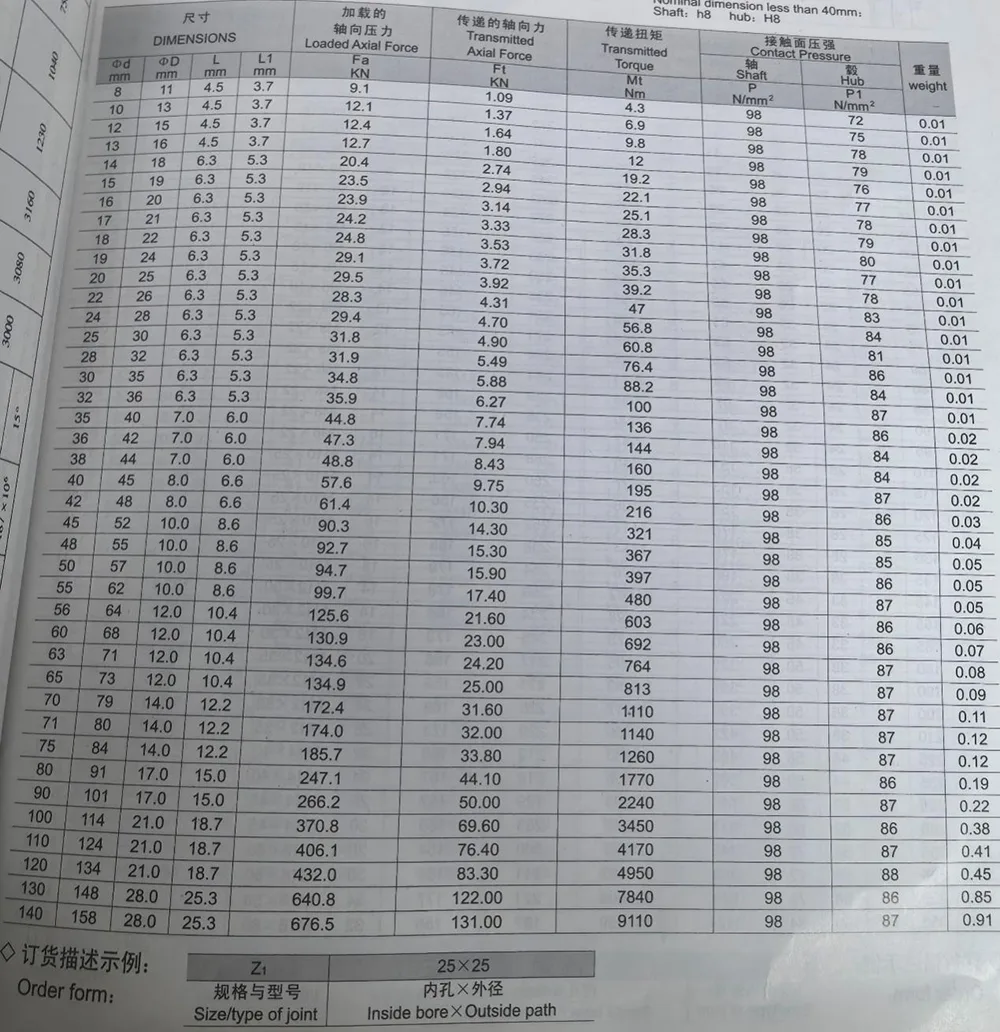

The entire product series features a comprehensive range of standard shaft diameters with ample stock availability. Additionally, the product supports customization for non-standard dimensions, enabling it to meet the unique assembly and retrofitting requirements of various types of equipment.
The installation process is extremely simple, requiring no heat treatment, specialized tools, or complex procedures. Assembly can be completed rapidly simply by applying axial compression, and disassembly is effortless—requiring only the loosening of fasteners. The installation position is freely adjustable, significantly reducing the labor and time costs associated with equipment maintenance and component replacement.
Usage is highly flexible: a single unit can be used independently, or multiple units can be stacked in series to increase load-bearing capacity, providing comprehensive adaptability for various torque load conditions.
- Q1: What is the greatest advantage of the Type Z1 Locking Assembly compared to traditional keyed connections?
- A1: Traditional keyed connections require machining keyways and drilling holes, which weakens the shaft's structural integrity and creates stress concentration points. Over long periods of operation, this often leads to wear, loosening, and the development of transmission backlash. The Model Z1 utilizes a keyless friction-based transmission mechanism; it causes no damage to the shaft, ensures zero-backlash transmission, and offers superior concentricity. Consequently, its operational precision and stability far exceed those of traditional keyed connections, while requiring minimal maintenance over time.
- Q2: Does installing the Z1 locking assembly require heating, press-fitting, or specialized equipment?
- A2: No. The Model Z1 features a "heat-free, press-free" structural design. It requires neither specialized tools nor complex procedures; assembly is completed simply by tightening standard bolts to apply axial compression. Both disassembly and fine-tuning of the position are extremely convenient, significantly lowering the barriers to on-site installation.
- Q3: What should be done if the equipment's torque load is high and a single Z1 locking assembly unit lacks sufficient load-bearing capacity?
- A3: You can employ a multi-unit series installation configuration. By stacking multiple units based on actual operating conditions, you can effectively increase the overall torque-bearing capacity. This offers flexible adaptability for medium-to-high load applications without the need to switch to a larger-sized locking assembly, thereby providing superior adaptability and cost-effectiveness.
- Q4: Which types of equipment are primarily compatible with the Type Z1 Locking Assembly? Is non-standard customization available?
- A4: This product is primarily designed for precision transmission applications involving small to medium torque loads. It is compatible with equipment in sectors such as automation, packaging, printing, textiles, CNC machinery, small-scale gear reducers, and servo drive systems. Standard sizes are readily available in stock, and we also support customization for non-standard bore diameters and special dimensions, making the product ideal for retrofitting older equipment and accommodating unique installation requirements.
- Q5: Given its keyless friction-based transmission structure, is there a risk of slippage or loosening during long-term operation?
- A5: No. The Z1 transmits torque by relying on the uniform compressive friction generated by tapered surfaces. It ensures uniform load distribution and backlash-free transmission, thereby eliminating the wear and resulting play typically associated with keyed connections. Once properly assembled and tightened, it remains highly resistant to slippage or loosening during prolonged, continuous operation, ensuring stable transmission precision. This makes it ideally suited for use in precision servo systems and continuously operating machinery.
