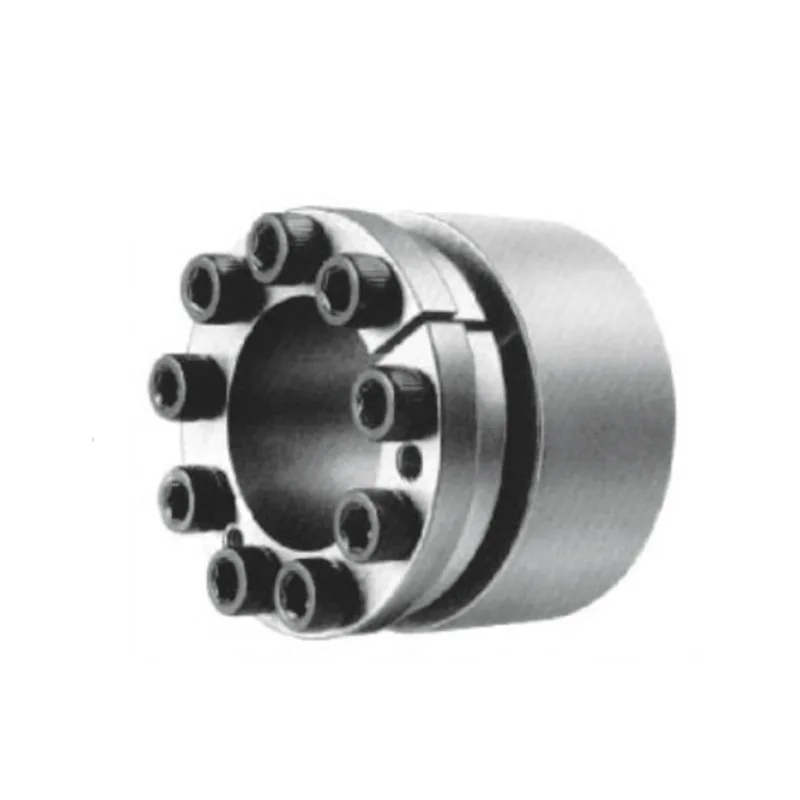

The Type Z4 Locking Assembly stands apart from conventional small-to-medium-sized locking assemblies as a large-bore, heavy-duty coupling component. It is specifically designed to address critical industry challenges associated with large industrial equipment, such as difficulties in transmitting ultra-high torque, locking instability, and the susceptibility of traditional keyed connections to damage. Leveraging its widened, thickened, and integrated structure—combined with precision heat treatment processes—the assembly strikes an optimal balance between high load-bearing capacity, protection of the host equipment's base structure, and cost-effective maintenance. Consequently, it serves as an essential, indispensable keyless connection component for both the initial installation of new heavy industrial machinery and the retrofitting and upgrading of aging equipment.
1. Large-Bore, Thickened, Integrated Structure: Adopting an industry-leading design that is enlarged, widened, and thickened into a single integrated unit, this assembly features ample material margins for both inner and outer diameters—a distinct departure from the thin-walled structures typical of conventional small locking assemblies. The overall structure exhibits superior rigidity, while the contact area of the conical surfaces is significantly expanded. This provides a robust structural foundation for transmitting ultra-high torque, ensuring the assembly is structurally optimized to meet the heavy-duty demands of large-scale machinery.
2. Uniform Bi-directional Locking (Axial & Radial): Upon compression, the product generates a uniform axial locking force alongside a stable and powerful radial clamping force, ensuring a force distribution free of "dead zones" (unloaded areas). This eliminates issues such as localized over-compression or uneven loosening, enabling the assembly to withstand the immense static and dynamic shock loads characteristic of large-scale machinery over extended periods. It is perfectly suited for high-intensity, continuous production environments operating 24 hours a day.
3. Capacity Expansion via Series Stacking: While a single unit is sufficient to meet standard high-torque transmission requirements, the Type Z4 Locking Assembly supports the stacking of multiple units in series to handle extreme, ultra-high-torque operating conditions. This allows for the flexible expansion of the overall load-bearing ceiling, effectively meeting the diverse and specialized transmission requirements of various types of heavy industrial machinery.
- Preserves Original Shaft Strength; Eliminates Shaft Fracture and Deformation: Traditional keyed connections require milling slots or drilling holes into the shaft, a process that inherently weakens the shaft's structural integrity and creates points of stress concentration. The keyless design of the Type Z4 Locking Assembly bypasses these invasive modifications, thereby preserving the shaft's original structural strength and completely eliminating the risks of shaft fracture or deformation. The Type Z4 Locking Assembly utilizes a purely keyless mounting method, eliminating the need for secondary machining on shafts or hub components. This fully preserves the original structural integrity of the equipment base, thereby fundamentally preventing issues such as shaft breakage or deformation under heavy-load operating conditions.
- Eliminates Keyway Wear and Prevents Transmission Looseness/Slippage: Torque transmission relies on tight frictional contact between tapered surfaces; with no keyways to wear down and no clearance gaps in the fit, the assembly remains free from faults—such as loose connections, transmission slippage, or power degradation—even during prolonged heavy-load operation. This significantly enhances equipment operational stability and reduces the risk of sudden, unexpected downtime.
- Versatile Retrofitting for New and Existing Equipment: Requiring no modification to the equipment's main structural body, this assembly serves equally well as a standard component for new heavy-duty machinery or as a direct replacement for aging, failed key-connection systems. It enables rapid upgrades to equipment transmission systems, offering low retrofit costs and immediate operational benefits.
Manufactured from carefully selected high-strength alloy steel and shaped via precision CNC machining, the components feature high material density and exceptional resistance to compressive and torsional stresses. Compared to standard carbon steel locking assemblies, this design offers significantly enhanced fatigue resistance under heavy loads, making it ideally suited for prolonged operation under ultra-high load conditions.
Subjected to a dual heat-treatment process involving professional tempering and quenching, the product achieves an optimal balance between high hardness and high toughness. It resists deformation under heavy loads without succumbing to brittle fracture; its internal metallographic structure remains stable, ensuring high resistance to fatigue damage even under prolonged alternating load conditions.
Featuring an advanced surface treatment for enhanced rust and corrosion resistance, the assembly offers multi-functional protection against oil, moisture, and dust. It performs reliably in complex and harsh environments—such as heavy-industry workshops, outdoor installations, and dusty or humid settings—thereby effectively extending the product's service life.
The Type Z4 Locking Assembly requires no heating, press-fitting, or specialized tooling equipment. Locking and precise positioning are achieved simply by tightening the fastening bolts. This assembly process is both simple and highly efficient, significantly reducing the overall time required for equipment assembly.
Installation positions can be finely tuned as needed, accommodating minor assembly deviations in equipment. This simplifies on-site alignment and commissioning, while ensuring easy disassembly and reassembly—saving both time and effort during future equipment maintenance and component replacement.
Completely eliminates secondary machining operations—such as milling keyways or drilling holes in shafts and hubs—thereby simplifying the component manufacturing process. This shortens the overall production and assembly cycle for equipment, directly reducing the enterprise's costs for machining consumables and labor.
1. Dual-Scenario Adaptability, High Flexibility: Equally suitable for standard original equipment installations in new large-scale industrial machinery and for the structural retrofitting of transmission systems in aging equipment. It perfectly resolves the challenges associated with high-torque transmission connections in heavy machinery, offering limitless applicability across various scenarios.
2. Comprehensive Specifications, Easy Selection and Stocking: The product line features a complete range of specifications, with standard models consistently kept in stock. This simplifies the procurement and selection process, facilitates convenient bulk stocking, and enables rapid response to procurement demands for new equipment integration, project maintenance, and bulk replacements.
3. Long-Term Economy, High Cost-Effectiveness: Once assembled, it ensures long-term stable operation with a low failure rate, minimal maintenance costs, and extended replacement cycles. Compared to traditional key connections and standard shrink discs, it offers a significantly lower total cost of ownership, making it the economical accessory of choice for large-scale, heavy-duty equipment.
- Q1: What is the core difference between the Type Z4 Locking Assembly and the Z1/Z2/Z3 series shrink discs?
A1: The Z1 and Z2 series are standard, general-purpose models designed for small to medium torque applications, while the Z3 series is a standard heavy-duty model. In contrast, the Type Z4 is a specialized heavy-duty model designed exclusively for large-bore diameters and ultra-high torque applications. It features a thickened and widened integral structure, specifically engineered to interface with large transmission shafts and heavy-duty wheel/disc assemblies. Its load-bearing capacity and structural strength far exceed those of other models, making it the ideal solution for the demanding operating conditions of large-scale heavy industrial machinery.
- Q2: If large-scale equipment operates continuously under heavy loads for extended periods, is there a risk of the Z4 shrink disc slipping or loosening?
A2: The Z4 features an exceptionally large tapered contact area and uniform radial clamping force. Combined with its heat-treated, reinforced structure, it exhibits superior resistance to impact and fatigue. Utilizing a keyless friction-based transmission mechanism, it ensures zero backlash; it remains securely locked—without slipping or loosening—even during prolonged, high-intensity continuous operation or under fluctuating load conditions.
- Q3: How can the use of Type Z4 Locking Assemblies help companies reduce production costs?
A3: It completely eliminates the secondary machining costs associated with milling keyways and drilling holes in shafts and hubs, thereby saving on labor and consumable expenses for machining operations. Furthermore, it prevents failures such as shaft breakage, key wear, and transmission loosening, thereby minimizing losses due to equipment downtime and reducing the frequency of component replacements. This results in a significant reduction in overall long-term maintenance and operational costs.
- Q4: Is the Z4 Locking Assembly suitable for the retrofitting of older, large-scale industrial equipment?
A4: The Type Z4 Locking Assembly offers high versatility and adjustable installation, requiring no modifications to the main structure of the equipment. It can serve as a direct replacement for aging keyed connections or failed standard locking assemblies, enabling the rapid upgrade of transmission systems in large-scale machinery. This ensures a short retrofitting timeline and delivers stable, reliable performance.
