Requiring no lubrication and minimal maintenance, they are widely applicable to general machinery such as fans, water pumps and compressors.

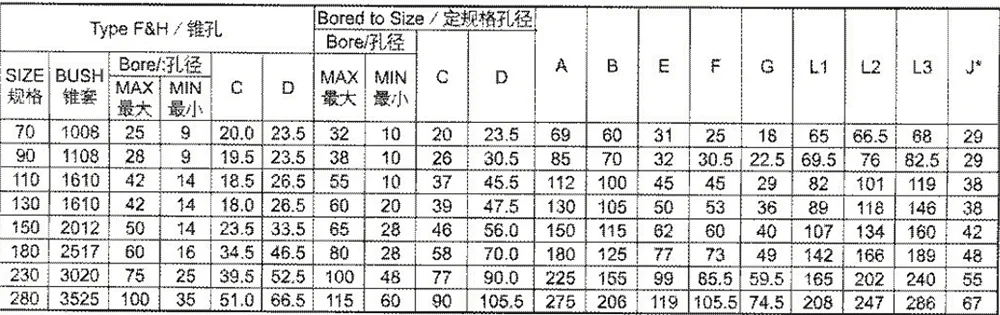

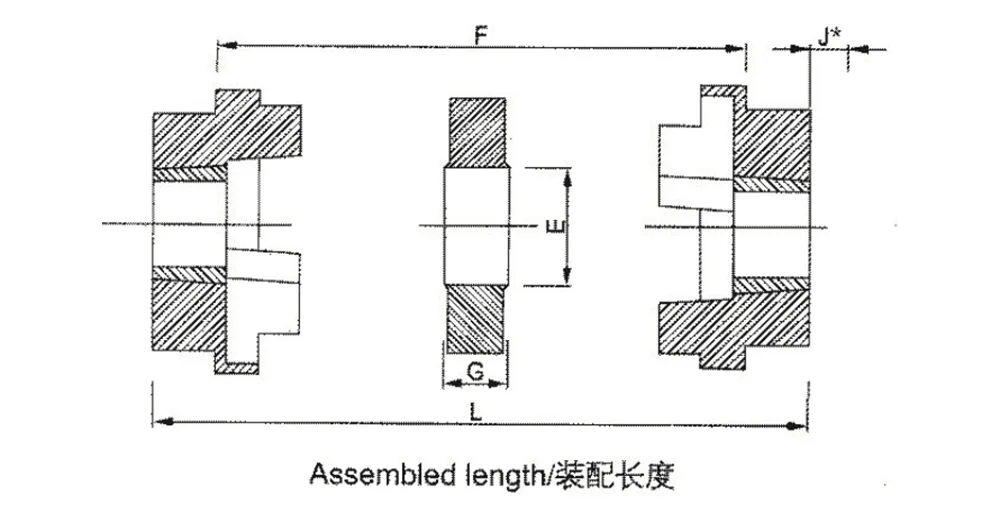

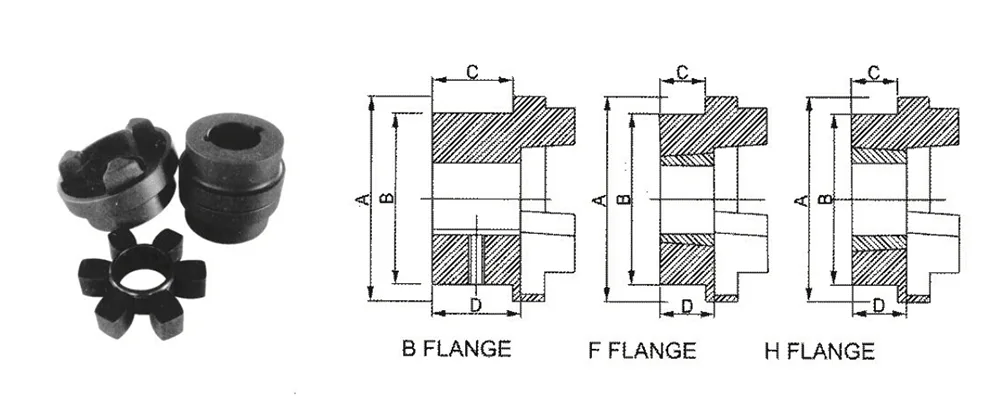

L1 is the length with assembly combinations F.F-H.H-F.H
L2 is the length with assembly combinations F.B-H.B
L3 is the length with assembly combinations B.B
J* is the wrench clearance required for tightening and loosening the bush on the shaft. The use of a shortened key will allow this dimension to be reduced
Built with high-toughness elastic buffer body, HRC Industrial Coupling effectively absorbs operational vibration and impact, buffers instantaneous load during start and stop, ensures low-noise and smooth operation, and greatly improves equipment running stability.
It flexibly compensates radial, axial and angular installation deviations and running offsets, eliminates assembly errors, reduces rigid wear of shaft systems and extends service life of equipment.
Made of high-quality wear-resistant materials, it features excellent oil resistance, aging resistance and fatigue resistance. It stably works under various working conditions such as oily and normal temperature environments without easy deformation or damage.
No grease filling is required. It needs almost no daily maintenance, lowers later operating costs, reduces downtime frequency and helps enterprises boost production efficiency.
Start-stop impact, operating vibration and shaft misalignment are the main causes of damage to motors, bearings and reducers. Featuring a high-elasticity spider structure, the HRC Industrial Coupling delivers outstanding shock absorption and cushioning performance. It can flexibly relieve instantaneous impact loads, automatically compensate for radial, axial and angular misalignment, reduce eccentric friction of shaft systems and avoid rigid wear caused by rigid connection. It lowers equipment load at the power transmission source, effectively cuts down failure rates and extends the overall service life of mechanical equipment.
- Routine Visual Inspection: During daily production, only regular visual checks are required to observe the condition of the elastomer. Check whether the HRC Industrial Coupling has been subjected to compression deformation, local cracking, aging hardening, or detachment and offset. Also, inspect the tightness of the cone sleeve to prevent loose fasteners caused by long-term vibration, which may lead to transmission deviation and abnormal noise.
- No Lubrication Maintenance: This coupling is designed without lubrication. There is no need to add grease or lubricating oil throughout the process. It eliminates the need for regular oil replenishment and replacement, and will not cause oil leakage or dust accumulation and jamming. This significantly simplifies the daily operation and maintenance process.
- Special Inspection for Oil-Sprayed Environments: The product has good oil resistance and is suitable for mild oil contamination conditions. However, it is necessary to regularly clean the accumulated oil, dust, and impurities on the surface of the coupling to prevent accelerated aging of the elastomer due to long-term heavy oil contamination and ensure stable elastic buffering performance.
- Installation and Adjustment Specifications: During equipment maintenance and disassembly, a standard gap for wrenches should be reserved. If the installation space needs to be reduced, a shortened key body can be used for installation. During assembly, ensure the accuracy of coaxiality to avoid increased eccentric wear of the elastomer due to human installation deviations.
- Replacement at the End of Aging Period: Under normal temperature and regular load conditions, the fatigue loss of the elastomer is extremely low. For equipment with frequent start-stop operations or continuous operation, it is recommended to regularly check the fatigue state of the elastomer. If there is a reduction in buffering performance or abnormal noise during operation, replace it in time to avoid affecting the stability of the equipment's transmission.
Q1: Does HRC Industrial Coupling require regular lubricant addition during operation?
A1: HRC coupling is a maintenance-free elastic coupling. Its overall structure does not require any lubricating medium. There is no need to add grease throughout the process. There are no risks of oil leakage or seepage. Daily lubrication maintenance is not necessary. It is suitable for long-term continuous operation conditions.
- Q2: This coupling is suitable for oily working conditions. Will it age rapidly when exposed to engine oil and lubricating oil for a long time?
A2: The product is made of high-quality wear-resistant elastic material. It has excellent oil resistance, anti-aging and anti-fatigue properties. It can work stably in a normal temperature oily environment for a long time, without deformation or damage, and has a much longer service life than ordinary rubber elastic couplings.
- Q3: What installation and operation deviations of the equipment can the HRC coupling compensate for?
A3: The product has the ability to compensate for all kinds of deviations. It can flexibly adapt and compensate for the radial, axial, and angular installation deviations and dynamic offsets during the operation of the equipment, effectively eliminating assembly errors, reducing the rigid friction loss of the shaft system, and protecting the core components such as the motor, bearings, and reducer.
- Q4: The equipment frequently starts and stops, and has a high vibration level. Can the HRC coupling provide protection?
A4: The HRC is equipped with a highly resilient elastic buffer body, which can effectively absorb the vibration and impact loads during the equipment operation, buffer the instantaneous loads during start-up and stop, reduce the eccentric friction and rigid wear of the shaft system, and reduce the load on the transmission source, thereby lowering the overall failure rate of the equipment.
- Q5: What types of general mechanical equipment is HRC Industrial Coupling mainly suitable for?
A5: It is widely applicable to industrial fans, water supply and drainage pumps, air compressors, and other general mechanical equipment. It is suitable for medium and low-speed, regular load, continuous operation under normal temperature conditions. It is a cost-effective and maintenance-free accessory for general mechanical transmission scenarios.
