For industrial purchasers who seek stability, low cost and high adaptability, the YL-YLD Type Flange Coupling is the best choice for rigid transmission scenarios. The product has a wide range of application conditions, high precision, and no frequent maintenance requirements. When combined with overload protection, it enables equipment safety upgrades. Additionally, the factory direct supply price advantage, stable quality guarantee and complete service system fully meet the needs of enterprises for long-term batch purchases and equipment retrofitting. It is a cost-effective product that replaces traditional ordinary couplings.

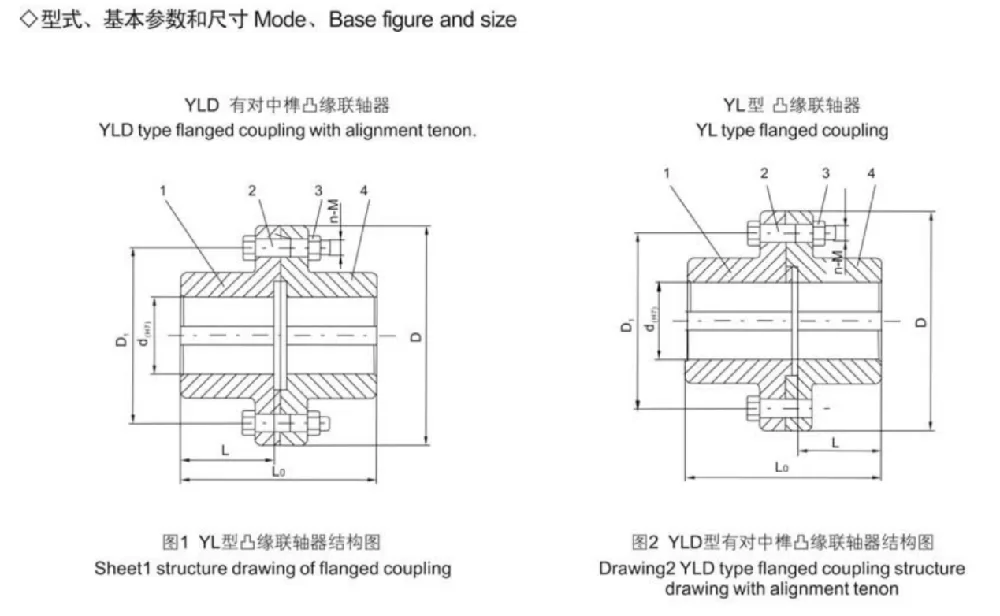

YL-YLD Type Flange Coupling is a classic rigid coupling, which is a fundamental core component in mechanical transmission systems. It has a mature structure and standardized technology, and is suitable for most conventional industrial transmission scenarios. It connects two transmission shafts through a flange structure and is tightened with bolts. It directly transmits torque and power through a rigid structure, without elastic deformation or transmission gap, ensuring zero power loss in the transmission. It is mainly used for precise alignment of two shafts of equipment and power transmission, solving common problems such as loose connection, transmission deviation, and power loss in industrial equipment shaft systems, and ensuring the stable operation of the equipment.
The YL-YLD Type Flange Coupling has extremely strong scene compatibility. It is specifically designed to meet the transmission requirements of various industries and working conditions, making it a necessary accessory for general industrial transmissions, and it is suitable for various factory production line operation scenarios.
It can stably adapt to the transmission shaft systems of heavy equipment such as metallurgy, mining, and chemical industry, and perfectly match the power transmission requirements of conveyors, mixers, various pump bodies, etc., which are heavy-load and continuous operation equipment.
It is compatible with equipment that requires high transmission rigidity and transmission accuracy, such as machine tools, fans, compressors, etc., ensuring the smooth transmission and precise operation of precision equipment.
It is compatible with various medium-speed general machinery transmission systems. Its compatibility in regular working conditions is fully achieved, and there is no need for repeated selection. Its universality is extremely strong.
For equipment with overload-prone and unstable load conditions, by combining with a torque limiter, overload protection can be achieved, avoiding equipment failures caused by sudden load fluctuations.

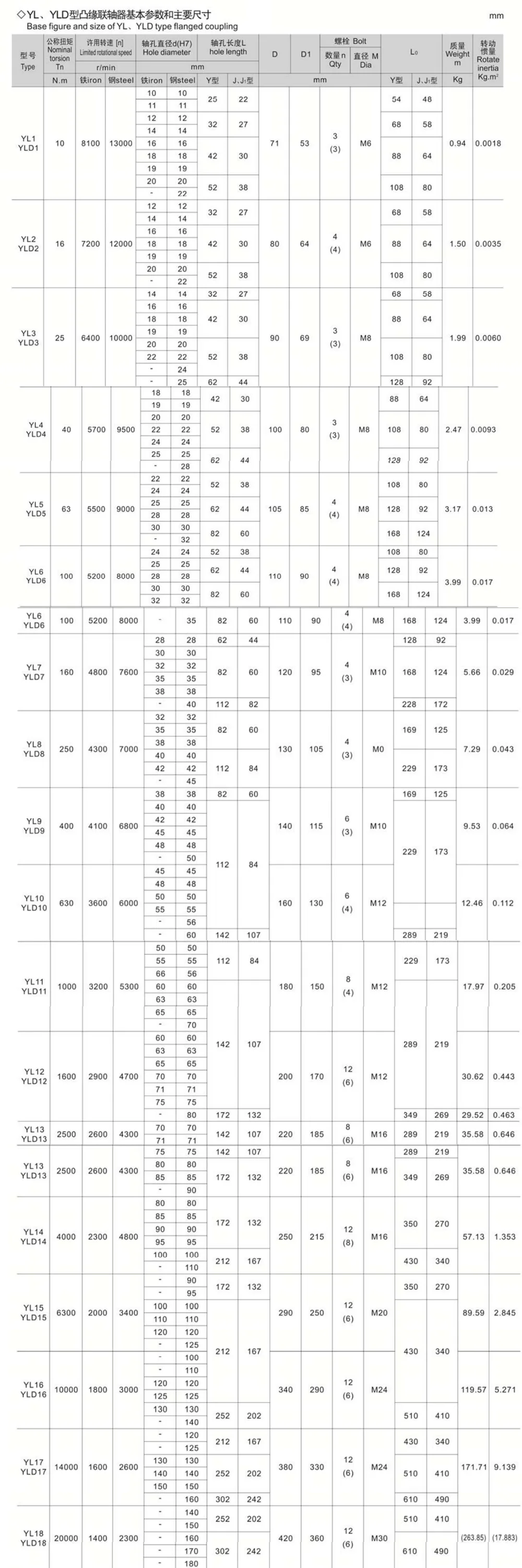

① The mass and moment of inertia of the coupling are approximate values calculated based on cast iron (cast steel in parentheses), with the minimum bore diameter and maximum shaft extension length.
② The allowable speed of the coupling is an approximate value calculated based on cast iron with an allowable linear velocity of 30 m/s, and steel with an allowable linear velocity of 50 m/s.
③ Number of bolts; values in parentheses refer to bolts for reamed holes.
④ The shaft bore, key type and dimensions of the flange coupling shall comply with the relevant provisions of GB 3852-1997 Shaft Bore and Keyway Types and Dimensions for Couplings.

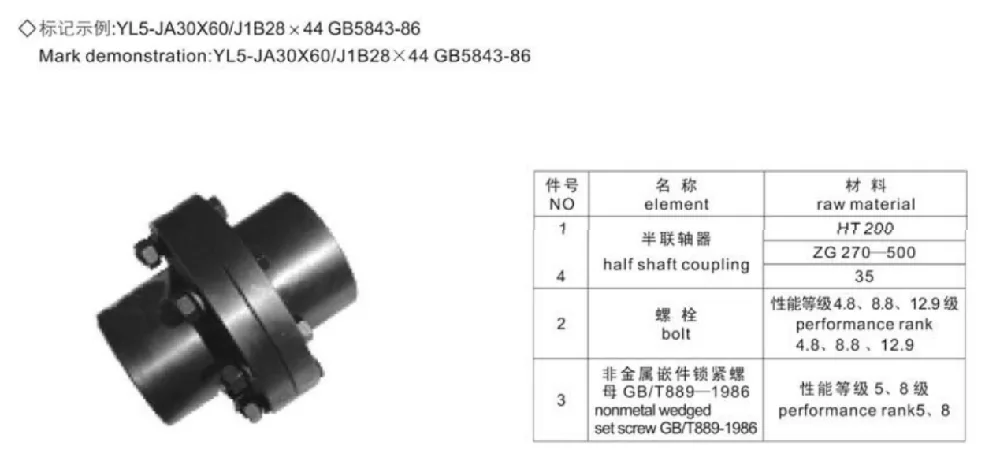

⑤ Marking example: YL5-JA30×60/J1B28×44 GB5843-86
Relying on the production advantages of its own factories, Jiteng ensures the quality, delivery and after-sales service of YL-YLD Type Flange Coupling from the source.
- Original factory production, controllable quality: As the original manufacturer, the products are processed, assembled and tested independently throughout the process. We strictly control the dimensional accuracy, material strength and transmission performance, and eliminate the problems of adulteration by middlemen and uneven quality.
- Standardized process, stable performance: Adopting mature standardized production processes, each product undergoes torque testing and accuracy verification before leaving the factory, ensuring compliance with rigidity standards and stable transmission, suitable for long-term high-intensity industrial operations.
- Adequate stock, efficient delivery: Standard models are always in stock, supporting rapid shipping, and also supporting customized adaptation and batch production to meet the needs of enterprises for bulk purchases and emergency replenishment.
- Professional after-sales service, full protection: Providing precise pre-sale selection, progress tracking during sales, installation guidance and troubleshooting services after sales, solving the procurement problems for customers such as difficulty in selection, inability to install and lack of guidance for later maintenance.
