Also commonly referred to as Plum-type Elastic Couplings, the Jaw Elastic Coupling is a widely utilized flexible damping component in industrial power transmission, finding extensive application across various medium-to-low power shaft-drive systems.
Unlike traditional rigid couplings, the Jaw Elastic Coupling utilizes a central, plum-shaped elastic element to flexibly bridge the two coupling halves (each featuring protruding "jaws"). This design allows the coupling to automatically compensate for relative shaft misalignment between connected equipment, while effectively damping operational vibrations.
Thanks to a comprehensive suite of advantages—including structural simplicity, no lubrication requirements, ease of maintenance, and high load-bearing capacity—it has become the preferred component for applications involving frequent start-stops and rapid forward-reverse switching.
However, the product does have specific operational limitations; it is generally not suitable for heavy-duty applications or specialized scenarios where axial space is severely restricted. Purchasers are advised to select the specific model based on their actual equipment operating conditions to ensure optimal compatibility and stable performance.

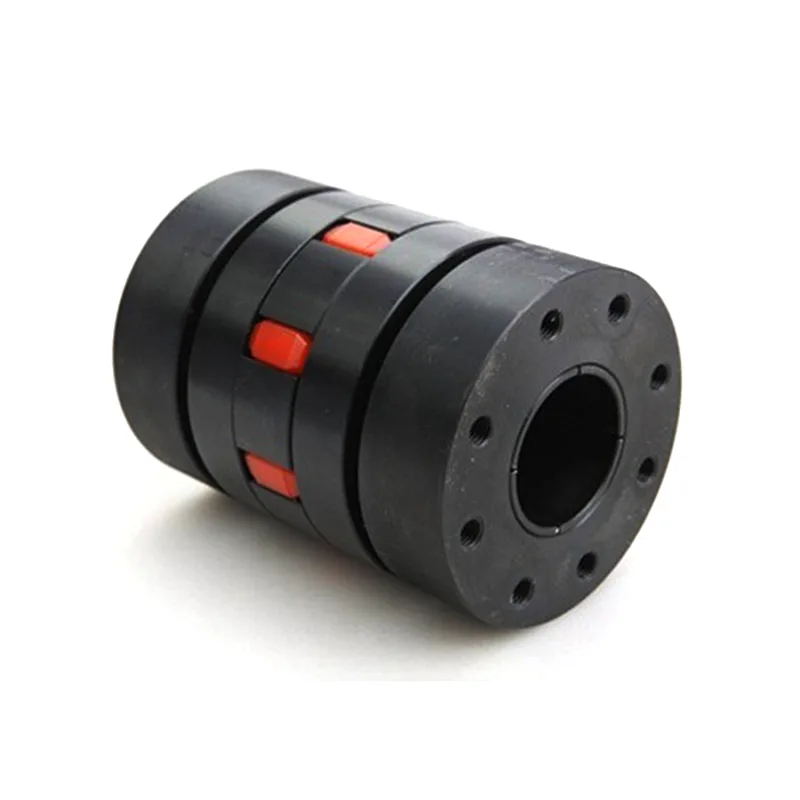

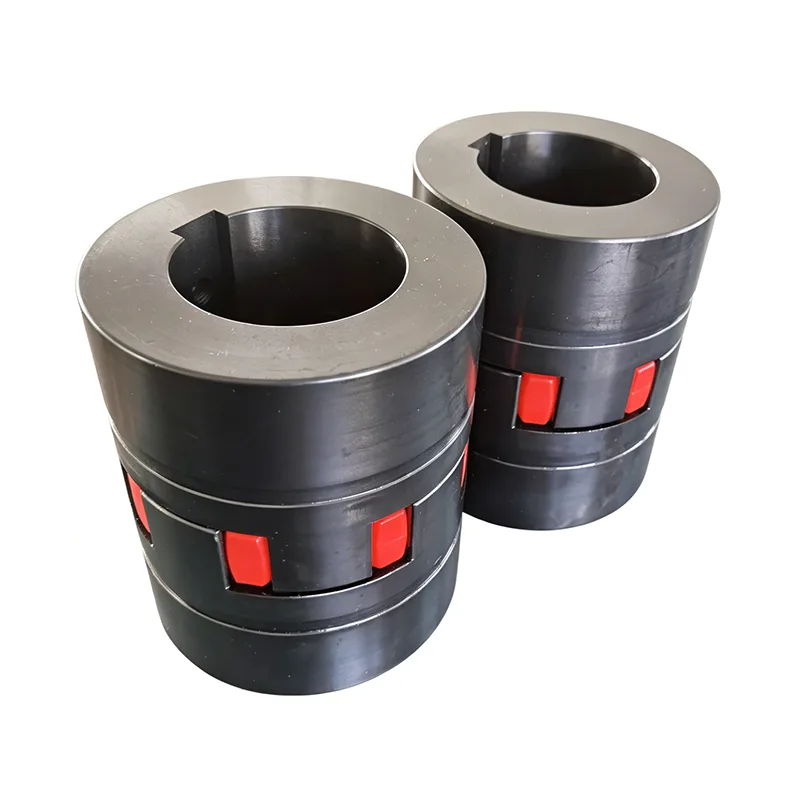

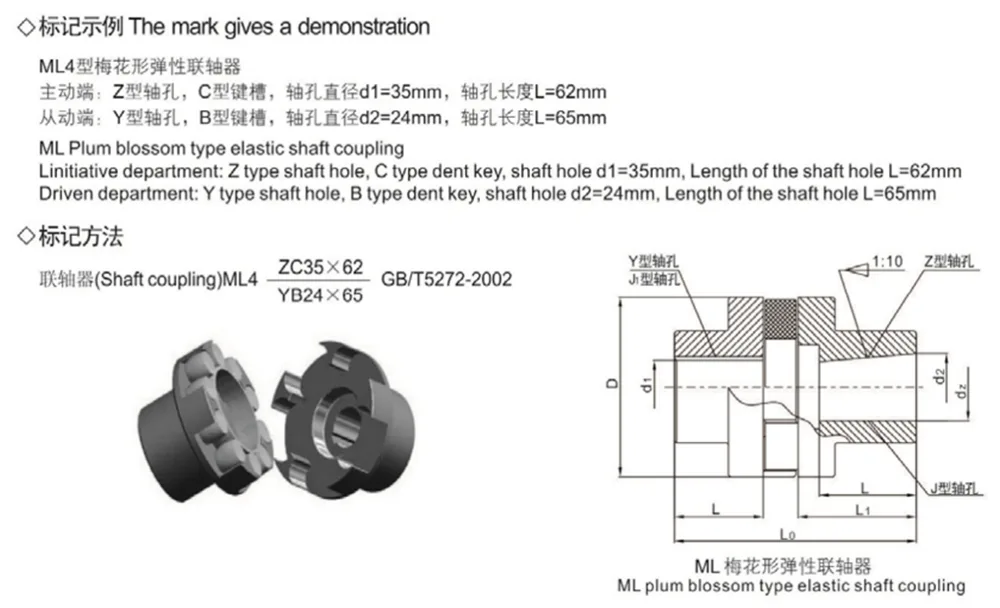

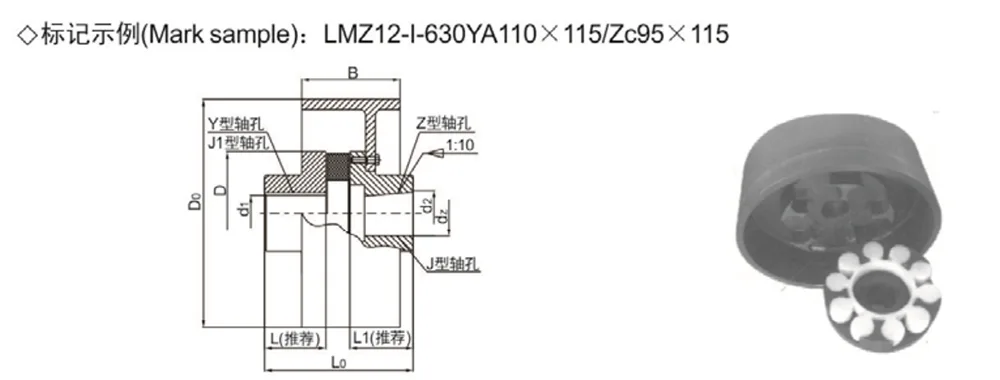

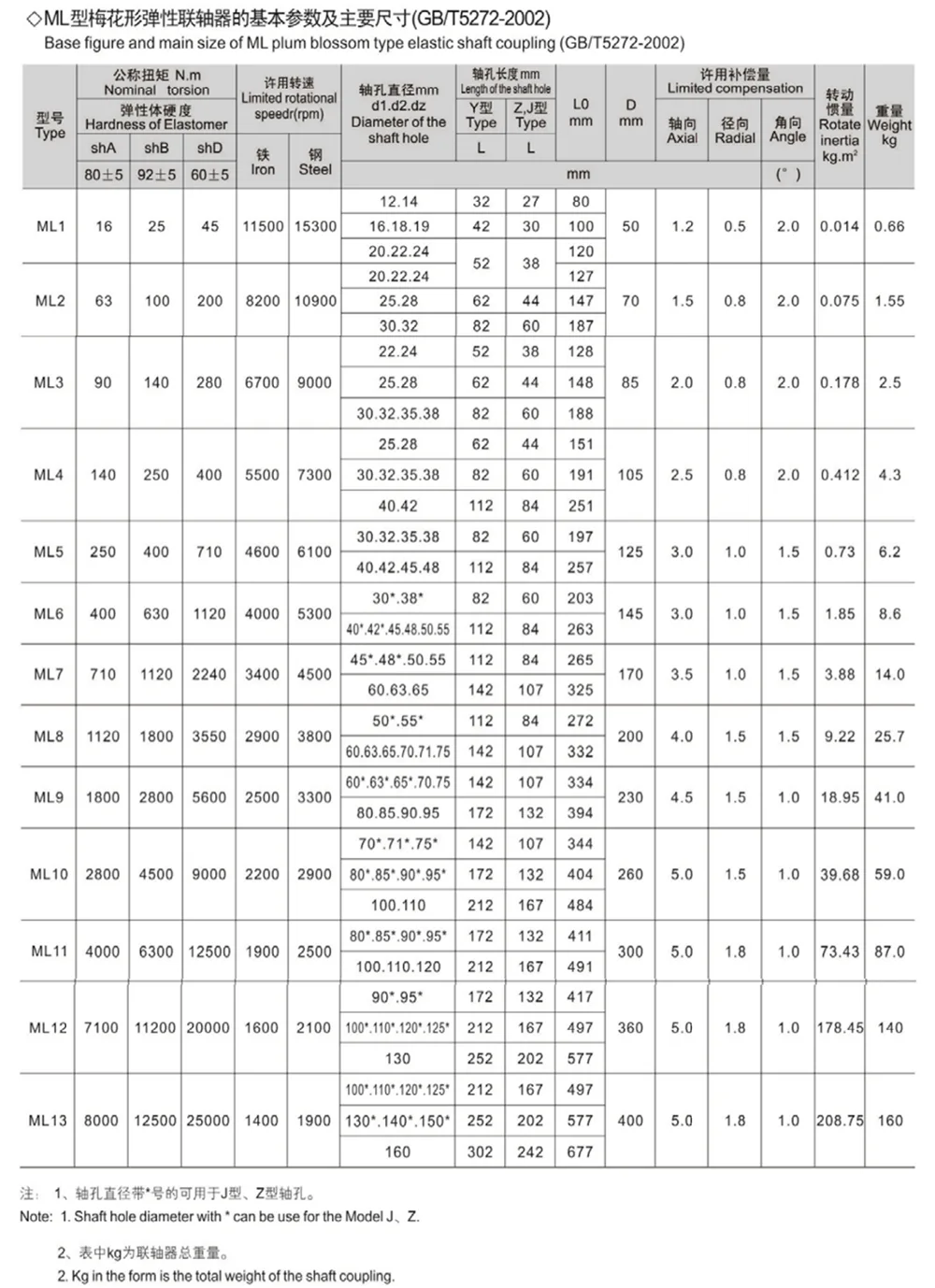

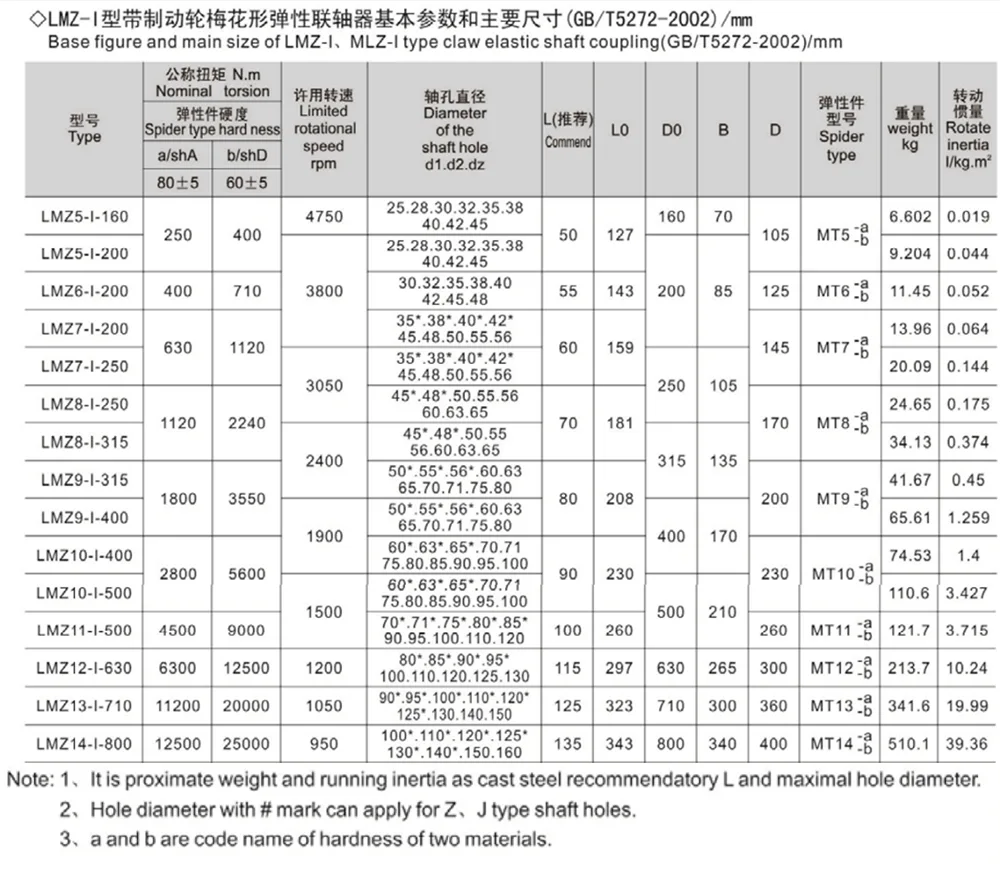

The Jaw Elastic Coupling features a streamlined and scientifically engineered design. With minimal components and a simple assembly logic, it stands as a highly practical and lightweight flexible transmission component.
The complete assembly consists of two identical coupling halves—each featuring protruding "jaws" or lugs—and a central, plum-shaped elastic insert. Power is transmitted stably through the mechanism as the jaws firmly grip and engage with the elastic element.
The plum-shaped elastic insert serves as the core damping medium, sandwiched between the jaws of the two coupling halves. By eliminating direct metal-to-metal contact, this design fundamentally reduces transmission wear and mitigates mechanical shock to the equipment.
With a small overall outer diameter and minimal installation footprint, the coupling is ideally suited for compact equipment layouts, ensuring it does not impose any structural burden on the host machinery.
The Jaw Elastic Coupling is specifically engineered for standard medium-to-low power transmission scenarios. Its core advantages—stability, durability, maintenance-free operation, and high adaptability—make it a highly suitable component for the majority of general industrial equipment applications.
Automatically compensates for relative offset errors between drive shafts, mitigating transmission stuttering and wear issues caused by installation deviations and operational deformation, thereby enhancing transmission stability.
Leveraging the flexible transmission characteristics of its elastomer element, it effectively dampens operational vibrations and absorbs start-up/shut-down shocks, reduces operational noise, and protects critical components such as motors and spindles.
The overall structure requires no lubrication, eliminating the risk of oil leaks or seepage. It requires no complex daily maintenance, significantly reducing equipment upkeep and labor costs.
Offers excellent load-bearing performance relative to its size, making it suitable for continuous-operation applications involving small to medium power outputs. Replacing the elastomer element later is a simple process; it can be accomplished merely by axially shifting one of the coupling halves, ensuring high maintenance efficiency.
Based on its structural design and performance characteristics, the Jaw Elastic Coupling is specifically tailored for stable transmission applications—including those involving frequent switching—offering a clearly defined scope of application and enabling precise product selection.
- High-Frequency Start/Stop Transmission Equipment: Specifically designed for small-to-medium power drive systems that require frequent starting, stopping, and forward/reverse switching; effectively buffers the shock loads generated during these transitions.
- Medium-to-Low Speed: Stable Operation Equipment: Suitable for the drive systems of industrial machinery operating at low to medium speeds, making it ideal for production environments where high demands are placed on transmission stability and operational reliability.
- General-Purpose Small/Medium Power Equipment: Widely utilized across various small-to-medium power mechanical transmission systems; serves as a standard transmission component for conventional industrial assembly lines and general-purpose processing machinery.
- Q1: Does it require periodic lubrication or maintenance?
A1: The Jaw Elastic Coupling features a flexible elastomer transmission structure that requires no lubrication during operation, eliminating oil contamination issues. It is maintenance-free in daily use; periodic checks to ensure the elastomer is free from aging or excessive wear are the only requirements, resulting in extremely low operational and maintenance costs.
- Q2: Is this coupling suitable for high-speed or heavy-load equipment?
A2: This product is primarily designed for medium-to-low speed and small-to-medium power transmission applications, specifically tailored for conditions involving frequent starting/stopping and forward/reverse switching. It is not designed to withstand prolonged heavy loads or ultra-high-speed operation; for heavy-load scenarios, we recommend switching to a specialized heavy-duty coupling.
- Q3: Is it necessary to dismantle the entire assembly to replace the spider elastomer?
A3: There is no need to dismantle the entire assembly; the elastomer can be replaced simply by shifting the two coupling halves axially. This procedure is quick and straightforward, and it does not affect the main structure of the equipment. However, this assumes that sufficient axial clearance has been provided within the equipment setup.
