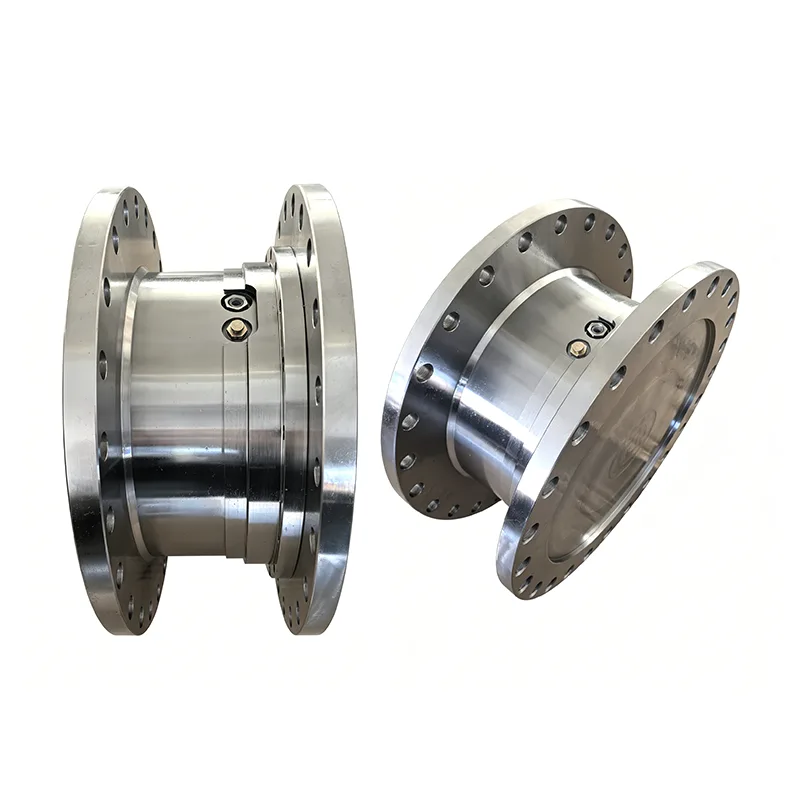

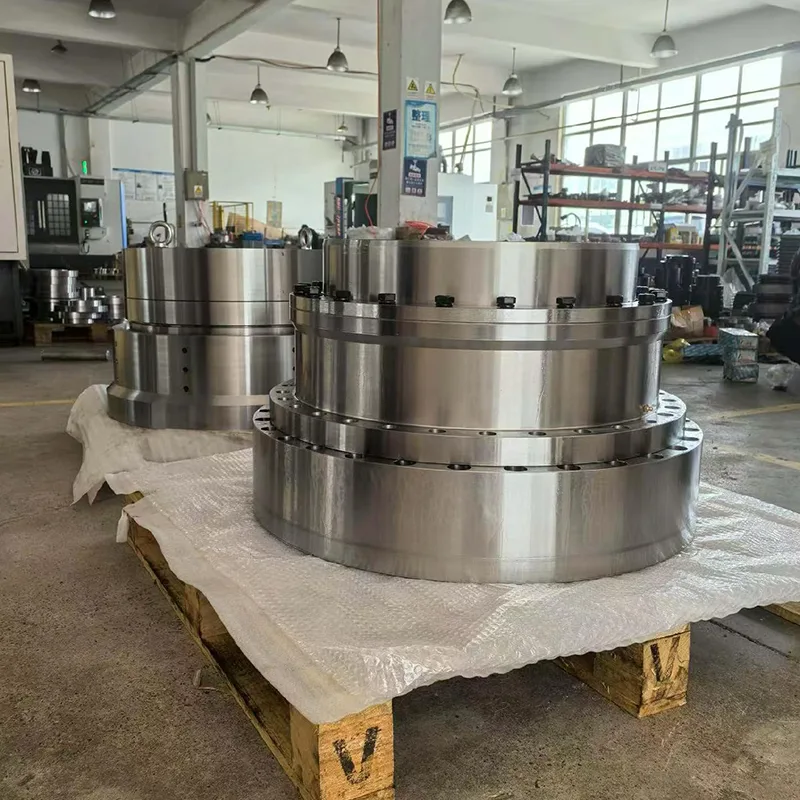

As an experienced manufacturer and integrated supplier of transmission components, Jiteng has independently developed the Hydraulic Safety Coupling—a hydraulic torque-limiting transmission component custom-engineered for heavy-duty industrial machinery. It represents an advanced upgrade over traditional friction-based and mechanical torque limiters, specifically designed for use in heavy-load and high-risk operating environments.
Unlike standard mechanical overload protection devices, the Hydraulic Safety Coupling eliminates wear-prone structures such as springs and friction plates. Instead, it utilizes high-pressure hydraulic fluid to induce elastic deformation in its inner and outer sleeves, relying on the frictional force generated at the contact surfaces to transmit power.
The system achieves zero backlash and zero wear during normal operation. In the event of a jam or impact overload, a specialized shear tube instantly ruptures to release pressure, severing power transmission within milliseconds. This fundamentally prevents irreversible failures such as shaft breakage or gear tooth damage.
Leveraging unique advantages—including a fully sealed structure, explosion-proof and spark-free operation, and the elimination of frequent recalibration requirements—this coupling is widely deployed in heavy-duty, all-weather machinery such as crushing equipment, mining conveyors, cement mills, and metallurgical rolling lines.

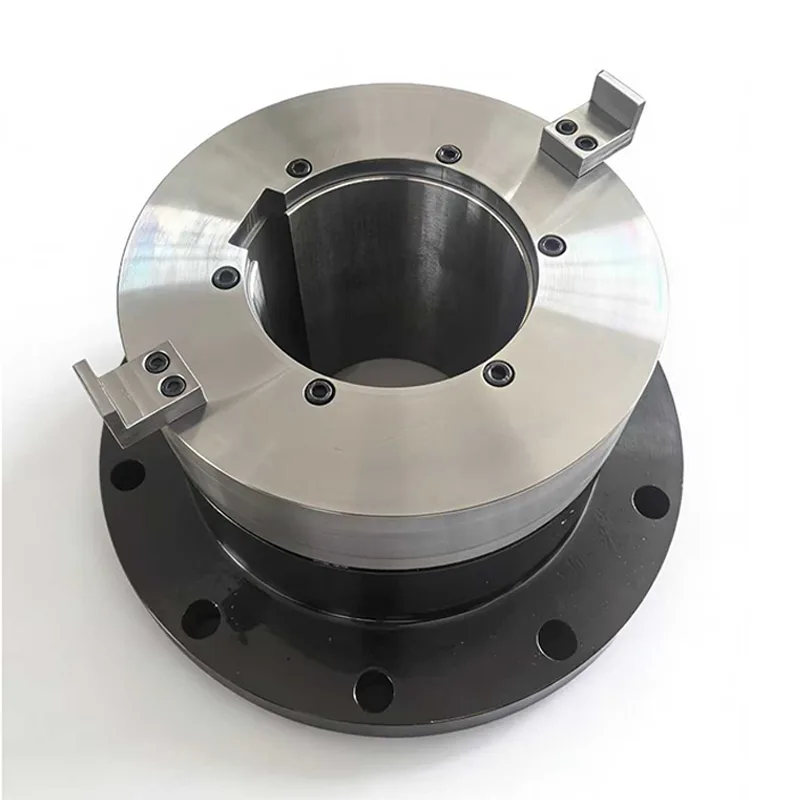

The core operating logic of the Hydraulic Safety Coupling is based on hydraulic expansion and friction-based power transmission. Its operation is divided into three distinct phases: Normal Transmission, Overload Protection, and Reset & Restart. The system demonstrates stable operational performance and a response speed far superior to that of traditional mechanical protection devices.
Pressurized hydraulic fluid is injected into the internal oil chamber of the unit, causing the inner and outer sleeves to undergo elastic deformation. The inner sleeve tightly grips the drive shaft, while the outer sleeve expands outward to firmly engage with the hub. Torque transmission is achieved through the frictional force generated at these contact surfaces; the magnitude of the transmitted torque is directly proportional to the hydraulic pressure. Throughout this phase, there is absolutely no slippage, no backlash, and no wear on internal components, resulting in exceptionally high transmission precision.
If the machinery encounters issues such as load stagnation or material impact—causing the actual torque to exceed the preset protection threshold—relative slippage occurs between the sleeves. The shear ring instantly severs the internal shear tube, rapidly releasing the hydraulic pressure within the oil chamber and allowing the sleeves to elastically rebound to their original, disengaged positions. The driving end enters an idle state while the driven end comes to an immediate halt; the entire torque-disengagement process is completed within 20 milliseconds, thereby rapidly blocking the transmission of overload shock.
Following an overload event, the main body of the product sustains no permanent structural damage. Restoration of power transmission requires only the replacement of a shear tube and the replenishment of the oil chamber with standard-pressure hydraulic fluid to re-engage the expansion sleeve. Components can be repeatedly disassembled and reused, significantly reducing long-term replacement costs.
Leveraging three core features—wear-free transmission, millisecond-level pressure relief, and a fully sealed, explosion-proof design—the Hydraulic Safety Coupling is compatible with the vast majority of harsh, heavy-duty operating conditions found in the market today. It effectively resolves industry shortcomings associated with traditional couplings, such as susceptibility to wear, vulnerability to dust, and unsuitability for use in explosion-hazardous zones.
- High-Impact and Stall Conditions: Ideal for equipment prone to sudden torque spikes, such as crushers and scraper conveyors. When material jamming causes an overload, the product executes a millisecond-level pressure release to disengage torque; this protective action is completed before the shock force can propagate to downstream components, thereby completely eliminating irreversible failures such as shaft fractures or gearbox gear damage.
- Frequent Reversing Conditions: Suitable for applications involving metallurgical roller tables and specialized tilting machinery. The product maintains uniform and stable expansion-clamping force, ensuring zero-backlash transmission throughout operation. It effectively counteracts the reverse shock loads generated during directional reversals, providing comprehensive protection for gearbox gears and support bearings.
- Continuous, All-Weather Operation: Compatible with equipment requiring uninterrupted, 24-hour operation, such as cement mills and ball mills. Due to its friction-plate-free design, the preset torque value remains constant over time without drifting; this eliminates the need for frequent shutdowns to recalibrate parameters, thereby effectively reducing equipment downtime for maintenance.
- Harsh, Dusty Environments: Features an integrated, fully sealed housing structure that effectively isolates the oil chamber and clamping contact surfaces from the ingress of dust, sand, and other impurities. This prevents clamping failures or torque deviations caused by contamination, making the coupling ideally suited for high-dust production environments in industries such as mining and building materials.
The Hydraulic Safety Coupling employs a fully mechanical hydraulic structure that relies on no electronic control components, sensors, or external power sources. Even in scenarios involving equipment runaway, plant-wide power outages, or total failure of the electrical control system, the product's overload protection function remains fully operational and unaffected by circuit faults, ensuring maximum protection stability.
Overload pressure relief is achieved through the shearing and fracture of a shear tube. Unlike friction-slip type products, the operation and disengagement processes do not generate high temperatures or sparks caused by friction. This prevents the triggering of safety accidents in dust-laden, flammable, or explosive environments—such as those found in chemical plants and mines—thereby ensuring a higher level of safety.
The fracture of the shear tube serves as an intuitive physical indicator that an overload event has occurred, allowing personnel to quickly identify whether the equipment has suffered an overload fault. Furthermore, by analyzing the time and frequency of such faults, production parameters and material feeding processes can be optimized, providing valuable data references for equipment maintenance and operational upgrades.
- Q1: What are the core advantages of the Hydraulic Safety Coupling compared to standard friction-type couplings?
A1: Traditional friction-based models rely on the slipping of friction plates for protection, which leads to issues such as wear and tear, heat accumulation, spark generation, and parameter drift. The hydraulic model, conversely, contains no consumable friction parts; it offers zero wear, requires no frequent recalibration, achieves ultra-fast disengagement within 20ms, and disengages without generating sparks. This makes it ideally suited for high-end heavy-duty equipment involving heavy loads, explosion-proof requirements, and continuous 24-hour operation.
- Q2: If the equipment disengages due to an overload, is the repair and resetting process difficult or costly?
A2: The repair process is simple and low-cost. After an overload event, the main structure of the coupling remains intact and undamaged; resetting requires only the replacement of the low-cost shear tube and the replenishment of hydraulic fluid. There is no need to dismantle the entire transmission assembly or replace expensive primary components, and the entire operation can be completed by a single person.
- Q3: Is an electrical control system required for the coupling to function properly?
A3: No, it is not required. The Hydraulic Safety Coupling features a purely mechanical-hydraulic design; operating independently, it effectively handles both power transmission and overload protection. Unaffected by issues such as power outages, signal failures, or circuit aging, it significantly reduces the costs associated with auxiliary electrical control systems, making it ideally suited for the retrofitting and upgrading of various types of aging heavy-duty equipment.
- Q4: Is the sealing performance reliable in high-dust and humid mining environments?
A4: Featuring an original, integrated, and fully sealed structure—reinforced by multiple dust-proofing and leak-prevention mechanisms—the unit effectively prevents dust, moisture, and impurities from entering the internal oil chamber. This design eliminates potential malfunctions such as jamming, torque drift, and oil pressure leakage, ensuring stable and reliable long-term operation in demanding environments such as mines and building material production facilities.
