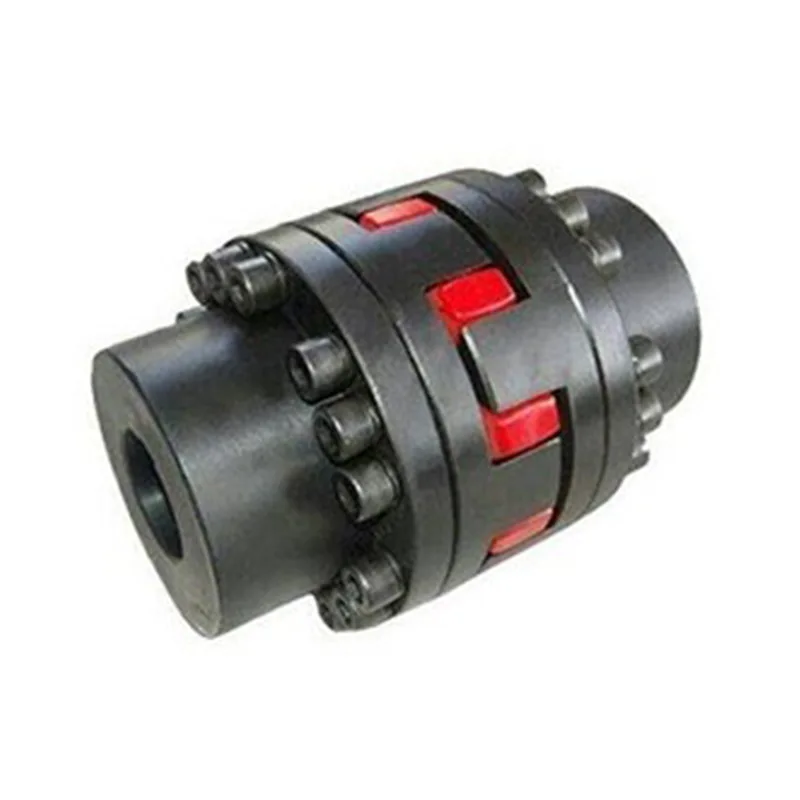

The Flange Type Star Elastic Coupling is an upgraded and optimized specialized transmission accessory based on the conventional star-shaped elastic coupling. It differs from the standard straight-through star-shaped coupling and can specifically address issues such as the need for flange-end face installation, limited installation space, and the requirement for shock absorption and buffering.
We have maintained the excellent elastic buffering, noise reduction, and deviation compensation performance of the star-shaped coupling. At the same time, it is compatible with fixed flange installation equipment, making the installation more stable and the fit more precise. As a factory-direct supply product, all standard models are available, and they can directly be adapted to general industrial equipment such as pump bodies, fans, reducers, and machine tools. At the same time, non-standard sizes and special conditions can also be customized. It is a highly adaptable and cost-effective elastic transmission accessory for flange installation scenarios.
This Flange Type Star Elastic Coupling adopts a differentiated composite structure design, balancing installation stability and transmission practicality, and is suitable for scenarios where fixed-end equipment needs to be connected.

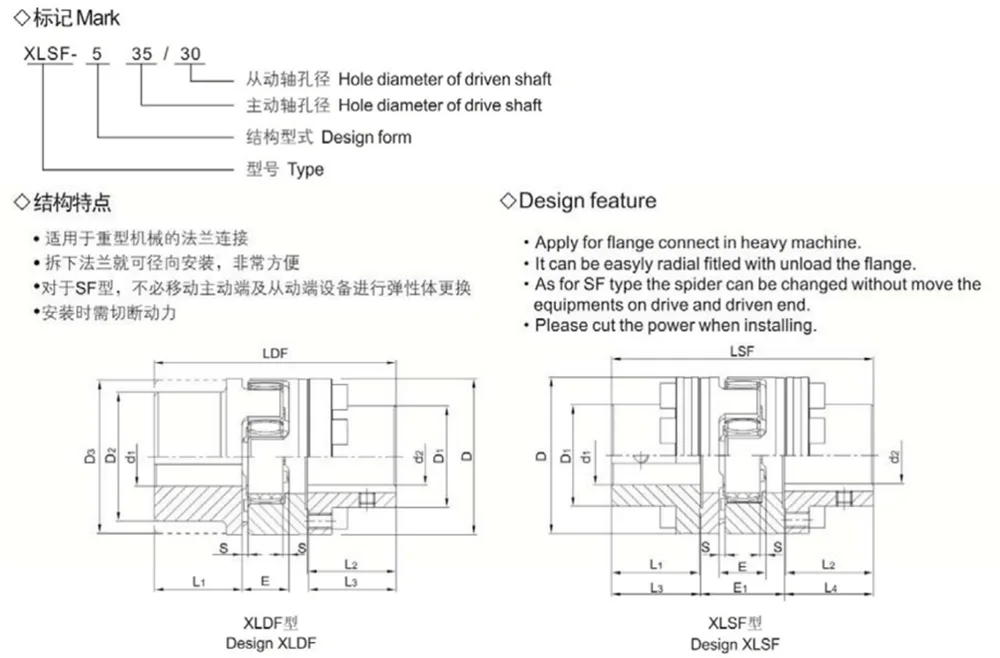

We adopt a dedicated design with one end being a flange structure and the other end being a conventional sleeve structure. It is an upgraded derivative of the standard star coupling, specifically designed for equipment shaft systems that require flange locking fixation.
A star-shaped elastic body is configured at the core transmission position. It flexibly connects the two ends through the elasticity of the elastic body, effectively absorbing equipment vibrations and buffering start-stop impacts during operation, achieving a flexible shock absorption transmission effect.
The overall structure is highly integrated, requiring no additional auxiliary components. It is compact and does not occupy much space, perfectly adapting to working conditions where equipment installation space is limited, without affecting the overall layout of the equipment.
Relying on the exclusive flange structure and elastic buffering configuration, Flange Type Star Elastic Coupling possesses precise working condition adaptation properties, specifically addressing common operational issues of industrial flange transmission equipment.
The installation method on the flange end face is evenly stressed, with high fixation strength. Long-term heavy-load operation is less likely to cause loosening, eccentricity, or slipping problems, making it suitable for fixed industrial equipment for continuous operation over a long period.
By leveraging the physical buffering characteristics of the intermediate star-shaped elastic body, it can effectively counteract mechanical vibrations and noise generated by equipment startup and shutdown, load fluctuations, etc., protecting the main shaft, bearings, and other core components of the equipment, and extending the equipment's service life.
Compact structural design, suitable for the narrow installation space within equipment, solving the problem of traditional coupling structures being bulky and unable to adapt to compact equipment.
Suitable for the shaft connection of various industrial pumps and fans. It can buffer the vibrations and impacts caused by fluid operation, ensuring the stable operation of the equipment.
Suitable for reducers, precision machine tools, and industrial processing equipment. It meets the production requirements of precise transmission, low vibration, and low noise.
Suitable for packaging machinery, conveying production lines, etc. It is suitable for continuous start-stop and high-frequency operation modes.
Can be used in metallurgy, mining, and general chemical machinery. It is suitable for the flange-fixed transmission requirements under complex working conditions.
Relying on its own production workshop and mature processing techniques, Jiteng can provide stable and high-quality Flange Type Star Elastic Coupling supply guarantees, with full-process original factory quality control and source delivery.
- Full range of stock reserves: All standard models are complete, and regular-sized, regular-hardness elastic body couplings are in stock ready for purchase in bulk and emergency replenishment. The delivery cycle is short.
- Professional non-standard customization capability: For special shaft diameters, special flange sizes, special torque, and special working conditions requirements, exclusive non-standard customized processing can be provided, suitable for the matching needs of various special equipment.
- Full-process original factory quality control: From raw material selection, precise processing to finished product assembly and performance testing, the entire process is completed independently, strictly controlling product accuracy, shock absorption performance and structural stability, and eliminating defective products from shipment.
