The Type Z7B Locking Assembly is a specialized, keyless friction-locking component featuring a double-tapered design, engineered specifically for heavy-duty applications involving medium to large shaft diameters:
1. Structural Configuration: It consists of one inner ring paired with two outer rings. The design employs an internal clamping force mechanism—compressing inward without expanding outward—which ensures a large contact surface area and delivers exceptional centering precision.
2. Enhanced Strength: Both the overall wall thickness and structural rigidity have been comprehensively reinforced; consequently, its rated load-bearing torque exceeds that of the standard, lightweight Z7A model.
3. Primary Applications: Primarily designed for locking hollow shafts in gear reducers and securing heavy-duty components in large-scale transmission systems, it is widely utilized in complete sets of heavy industrial equipment across sectors such as metallurgy, mining, port operations, and wind power generation.
The Type Z7B Locking Assembly employs a fully rigid friction-transmission structure. By design, it inherently avoids the common pitfalls associated with elastic components—specifically, the risk of aging and subsequent failure—making it ideally suited for the alternating-impact operating conditions typical of steel mills, mines, and port facilities.
1. Elimination of Elastic Weaknesses: It overcomes the inherent shortcomings of ordinary elastic coupling components—such as susceptibility to aging and fatigue failure—by relying on rigid tapered surfaces to transmit torque. Consequently, it is immune to the performance degradation often caused by elastic decay.
2. Adaptability to Demanding Conditions: It is engineered to withstand frequent start-stop cycles, impact loads resulting from forward-reverse reversals, and continuous, heavy-duty operation around the clock, demonstrating outstanding tolerance for alternating loads.
3. Exceptional Durability: Even under prolonged and repetitive impact loads, the assembly remains free from loosening, slippage, or torque degradation. Capable of uninterrupted, continuous operation throughout the year, its durability far surpasses that of conventional coupling components.
The assembly offers ample tolerance for installation errors, imposing less stringent requirements on the machining precision of the workpieces. This feature specifically addresses and resolves the challenging assembly issues often encountered when working with older equipment where shaft surfaces may have suffered wear or damage.
1. High Tolerance for Fit Variations: It exhibits a strong capacity to accommodate variations in the fit tolerances between the shaft and the hub. This capability allows for lower precision standards during the initial machining of workpieces, thereby reducing the overall costs associated with the precision finishing of components.
2. Type Z7B Locking Assembly compensates for defects in aging equipment—such as shaft surface wear, slight oval deformation, and excessive fit clearance—thereby eliminating transmission backlash without the need to replace the entire shaft and hub assembly, enabling cost-effective retrofitting.
3. The assembly position is freely adjustable and requires no precise datum positioning, effectively reducing the complexity of on-site retrofitting for older equipment.
Leveraging a closed, integral clamping structure, the Type Z7B Locking Assembly resolves numerous safety hazards associated with traditional parallel key connections, ensuring stable and reliable locking performance even under harsh operating conditions.
1. It eliminates common failure risks associated with traditional parallel keys—such as wear, fracture, axial displacement, and transmission seizure—thereby enhancing the safety redundancy of equipment operations.
2. The integral structure distributes loads uniformly, preventing localized stress concentrations; consequently, the assembly is highly resistant to component misalignment, detachment, or breakage during operation.
3. It maintains a secure lock under severe conditions—including heavy shock loads, high temperatures, dusty environments, and intense vibration—thereby preventing equipment damage and production safety incidents caused by sudden transmission failures, and ultimately boosting the overall safety factor of the machinery.

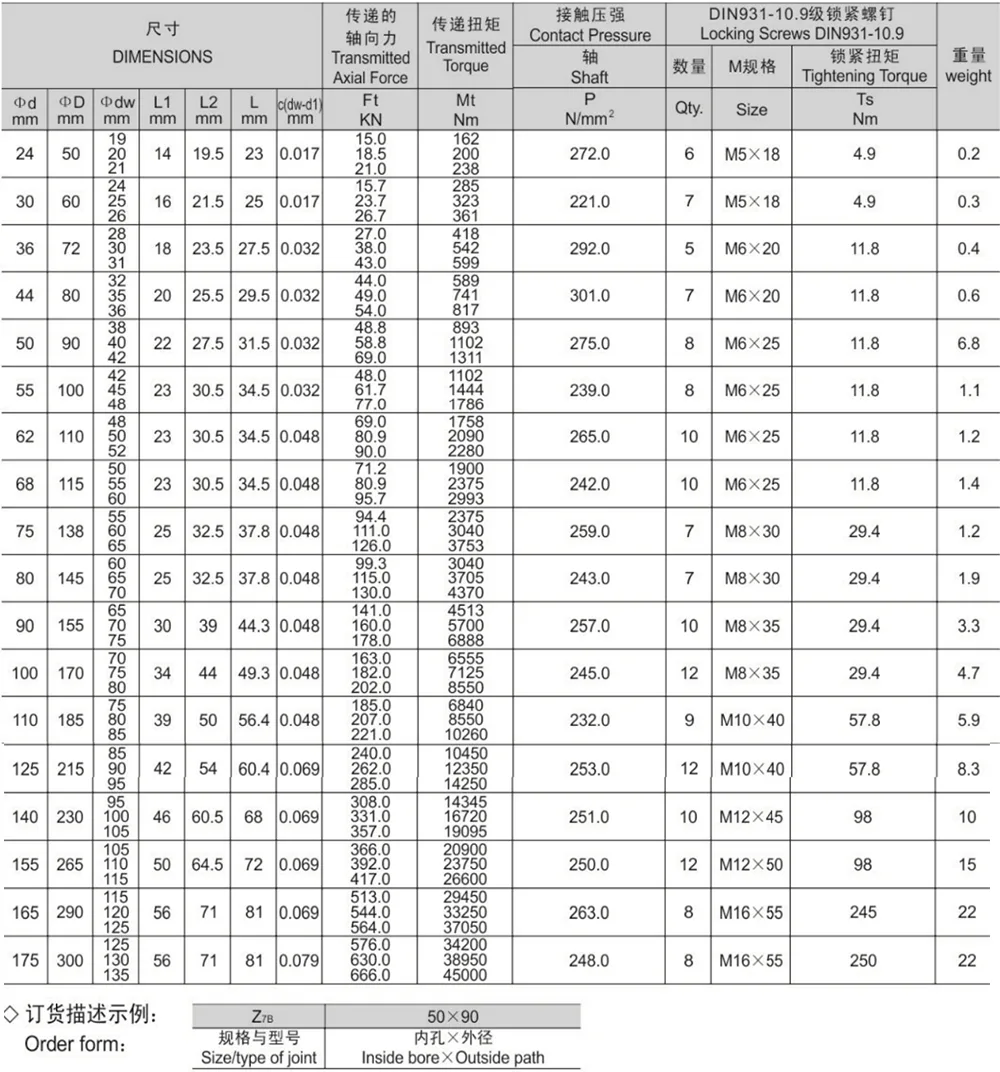

The Type Z7B Locking Assembly is available in a comprehensive series of basic dimensions and parameters. For product selection, please refer to the Z7B Locking Assembly Basic Dimensions and Parameters Chart to determine the appropriate model based on the shaft diameter, rated torque, and available installation space.
