Technical engineers arrive at the customer’s extrusion and granulation workshop to conduct on-site survey of transmission installation dimensions. The customer’s equipment is currently equipped with a standard coupling without overload protection. In case of screw jamming or foreign object blockage, the lack of overload protection may easily result in sheared screws, stripped gear teeth of the reducer and burnt-out motors, bringing high maintenance costs and heavy downtime losses.
📌 On-site Photos: Transmission Retrofit Survey for Twin-Screw Extruder Unit

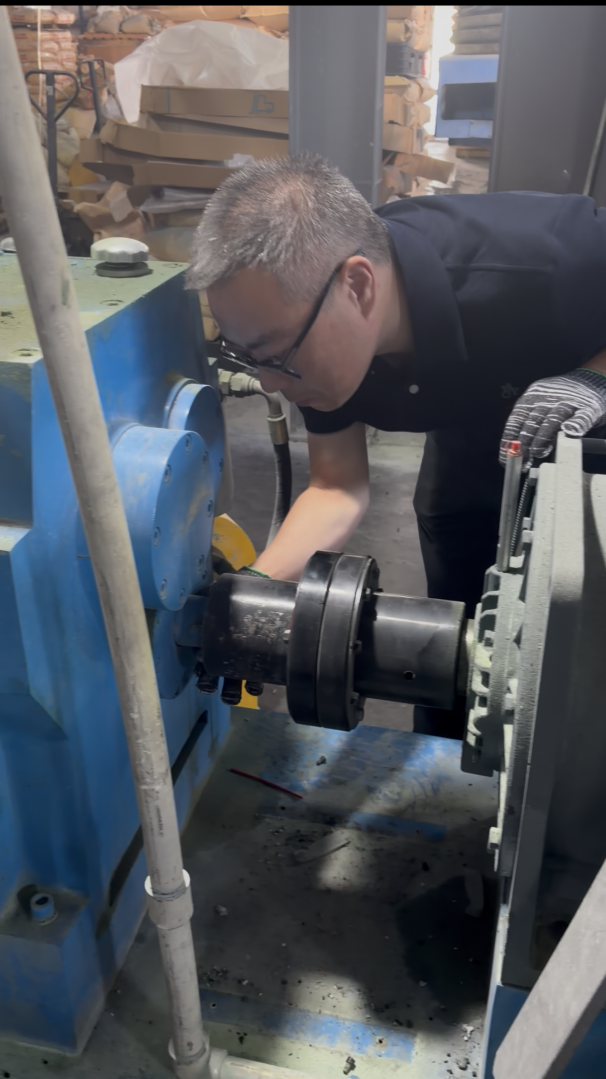

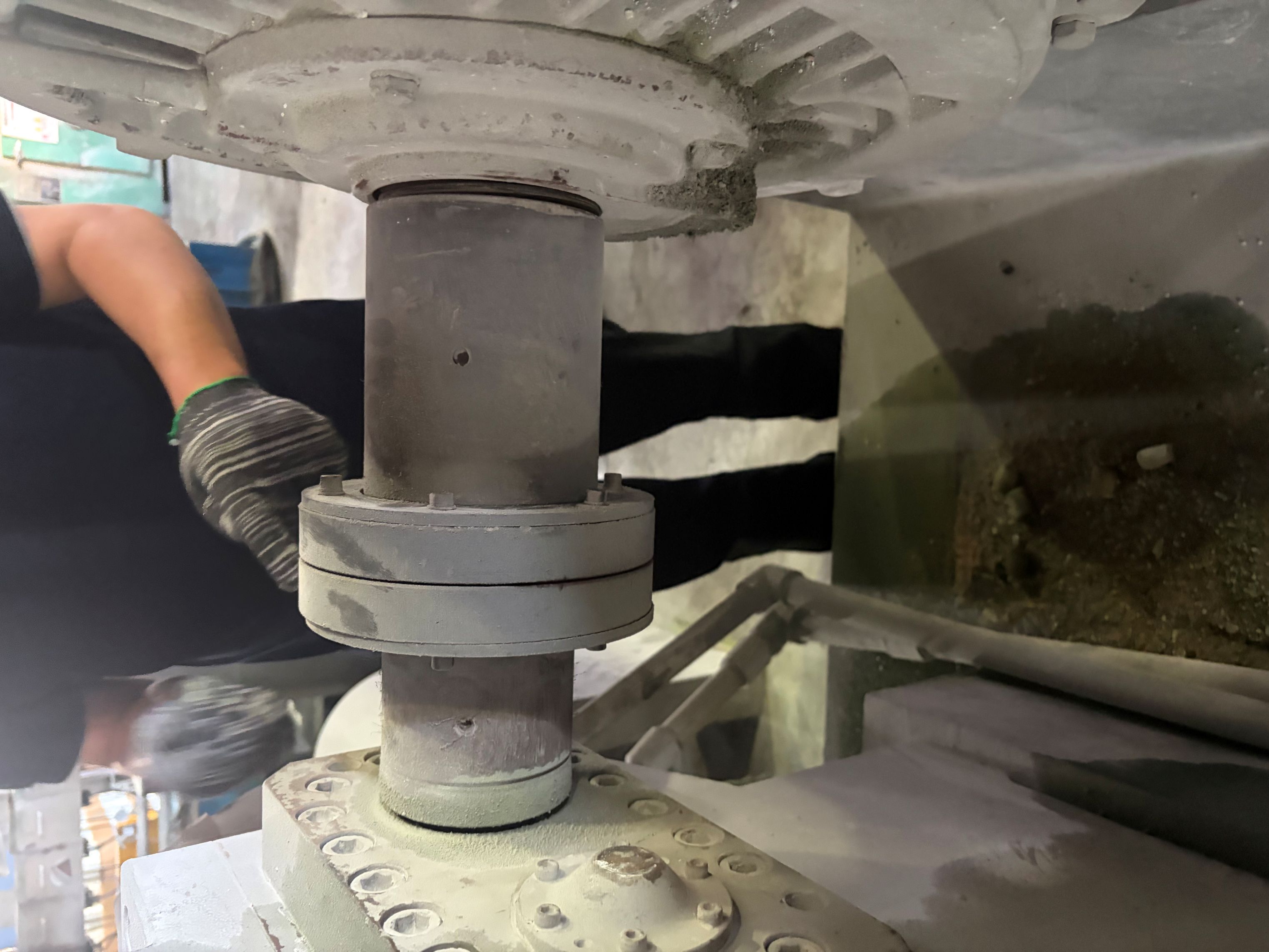

Engineers perform field measurements at the connection between the motor and gearbox, including shaft diameter, shaft end length, keyway specifications and the mounting distance between two shafts. They also record the equipment’s rated torque, operating speed and impact load.
To solve the pain point that the original standard coupling has no safety protection, we customize torque limiter solutions to directly replace the existing coupling, with no modification to the equipment base required.
✅ On-site Survey & Measurement Services
Take on-site measurements of shaft diameter, keyway, shaft extension length, end face clearance and installation space, and record all assembly dimensions.
Evaluate impact working conditions caused by extruder material jamming, calculate safe disengagement torque and select the matching torque limiter specification.
Analyze risks of the original standard coupling and explain the working principle of overload protection.
Recommend suitable models.
Provide survey drawings and installation plans; finished machined products can be directly installed for replacement.
💡 Why is it recommended to fit a torque limiter on extruders?
A standard coupling only transmits torque and provides no overload protection. When material impurities cause blockage and lock the screw, huge impact torque will be rigidly transferred to the reducer and screw, leading to irreversible damage to core components.
The torque limiter instantly disengages and cuts off power once the torque exceeds the preset value, protecting the reducer, screw and motor. It greatly reduces major overhaul costs and long production downtime.
🏭 Applicable Equipment: Twin-screw extruders, granulators and other polymer extrusion production lines, mining equipment, metallurgical machinery, crushers, pulverizers, printing equipment, coal mining machinery, die-cutting machines, packaging machinery, chemical equipment, pumps, wind power equipment, automation systems, marine machinery, etc.
