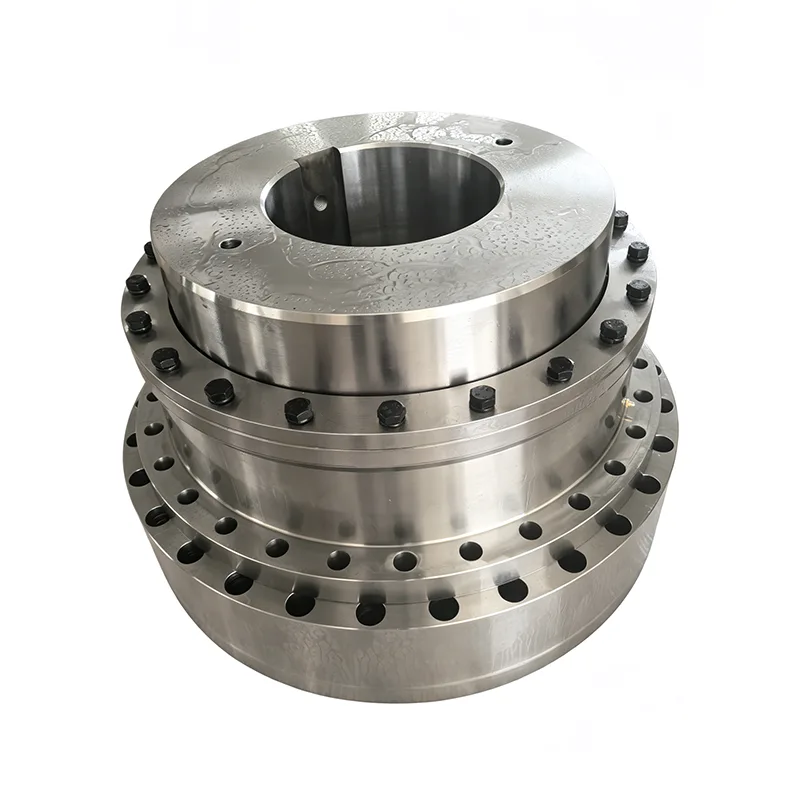

GICL Type Drum Gear Coupling

The GICL Type Drum Gear Coupling serves as a mainstay heavy-duty connecting component in industrial power transmission systems. Utilizing a unique meshing structure that pairs convex (crowned) external teeth with straight internal teeth, it overcomes the limitations of standard straight-tooth gear couplings—which suffer from limited misalignment compensation capabilities—by leveraging the curved profile of its gear teeth to achieve multi-directional compensation for installation misalignments.

This product features an exceptional maximum torque capacity and minimal power loss. It is capable of supporting the continuous, full-load operation of heavy machinery—such as ball mills and crushers—over extended periods, while also being ideally suited for high-precision transmission assemblies and equipment operating in harsh, open-air environments.

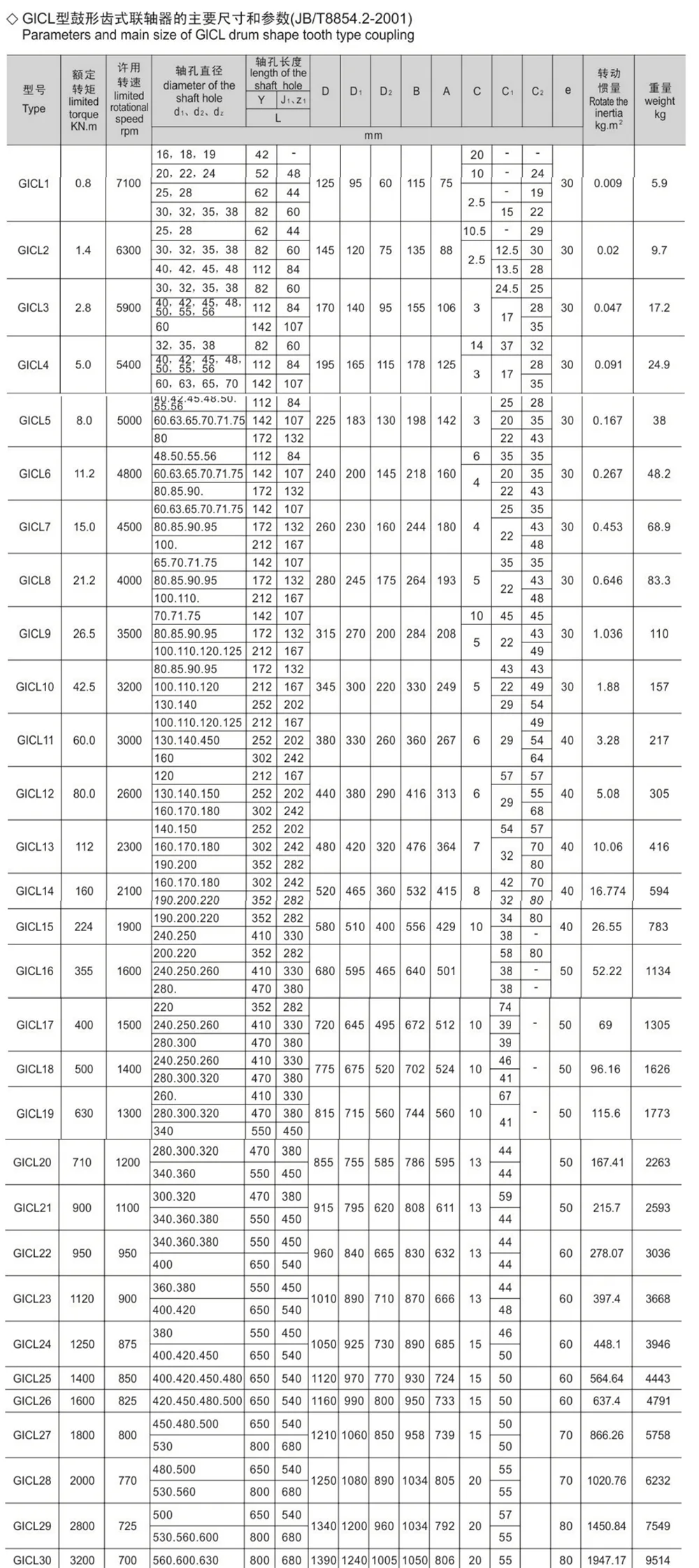

1. The quality and moment of inertia are approximations calculated by the least diameter and the biggest length of axis length.

2. Seal ring are adopted by the circular surface felted by rubber.

3. On the basis of need, J1-axle hole could not use block ring at the end.

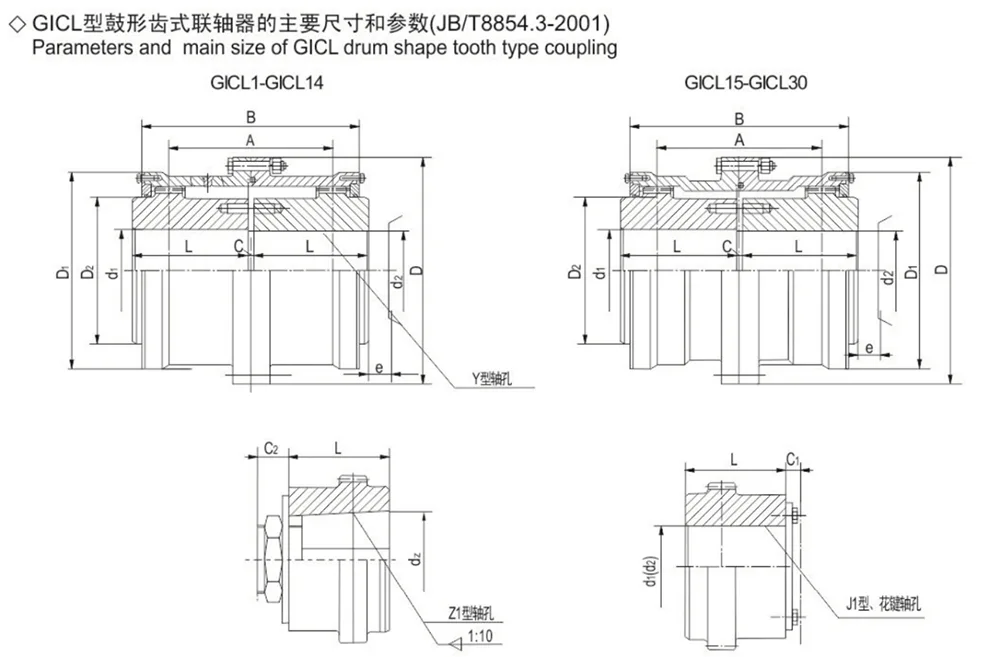

4. Allow orientation compensate1° 30’

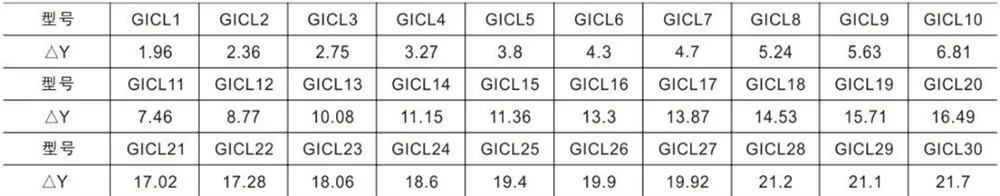

5. Allow radial compensate , Y are according to the following list

What are its Performance Advantages?

1. Ultra-High Load Capacity & Energy-Efficient Transmission

The GICL Type Drum Gear Coupling boasts outstanding rated torque capacity and extremely low power transmission loss, resulting in high transmission efficiency. It facilitates energy conservation and cost reduction even during prolonged, full-load operation, effectively meeting the continuous power demands of high-output heavy machinery.

2. Multi-Dimensional Misalignment Compensation via Crowned Teeth

Thanks to its unique crowned gear structure—which utilizes the inherent clearance provided by the curved tooth profiles—the coupling can simultaneously compensate for axial, radial, and angular misalignments. This effectively resolves the industry-wide challenge of achieving precise coaxial alignment during equipment assembly.

3. Smooth Operation, Noise Reduction, and Long-Term Protection

The coupling provides inherent cushioning and vibration-damping effects during operation, resulting in low overall noise levels. It ensures smooth power transmission across both high- and low-speed operating conditions, effectively reducing overall machine vibration and component wear, thereby extending the service life of the entire transmission system.

Universal Application Across All Scenarios

1. Standard Component for Heavy Machinery

The GICL Type Drum Gear Coupling is compatible with a wide range of mainstream heavy machinery, including ball mills, crushers, hoists, conveyors, rolling mills, winches, chemical pumps, and large-scale compressors. It serves as a frequently specified connecting component for original equipment manufacturers (OEMs) of heavy industrial machinery.

2. Stable Operation in Diverse Environments

Whether deployed in harsh outdoor environments exposed to wind and rain, in high-load workshops requiring continuous, round-the-clock production, or in precision transmission stations where high alignment accuracy is paramount, this coupling maintains stable and reliable performance.

3. Cost-Effective Standard Components

Highly adaptable to diverse environments and characterized by low field failure rates, these components offer controllable overall procurement and maintenance costs. They stand out as highly cost-effective standard components for various heavy-duty transmission systems found in industrial and mining applications.

Direct Supply Guarantee from the Source Factory

Leveraging our own in-house processing lines, we achieve fully autonomous production across the entire workflow—from quality control, customization, and pricing to after-sales support—thereby eliminating markups imposed by intermediaries.

1. Strict, Standardized Quality Control

All products are manufactured and shipped in strict compliance with current industry standards. Every finished unit undergoes a rigorous three-step inspection process—precision dimensional verification, actual rated torque testing, and comprehensive visual inspection—to guarantee uncompromising factory quality.

2. Flexible Non-Standard Customization Services

We offer flexible customization services to meet specific client requirements, including non-standard external dimensions and specialized bore diameters. Furthermore, we can engineer custom-modified models specifically designed to withstand challenging operating conditions, such as corrosive environments or extreme temperatures.

3. Direct-from-Factory Pricing and After-Sales Support

By eliminating layers of intermediary markups, we offer competitive pricing—with even more favorable rates available for bulk orders. We provide comprehensive technical support and after-sales service, continuously delivering cost-effective transmission solutions to a wide range of industrial and mining enterprises.

FAQ

Q1: What is the core difference between the GICL Type Drum Gear Coupling and a standard straight-tooth gear coupling?

A1: Standard straight-tooth couplings feature a linear tooth profile, which allows for only minimal misalignment and imposes strict requirements for installation alignment. In contrast, the GICL utilizes a "drum-shaped" (crowned) external tooth profile; this design ensures more uniform load distribution across the tooth surfaces and offers a significantly wider range of compensation for axial, radial, and angular misalignments. Consequently, the GICL functions reliably even when equipment installation exhibits greater alignment deviations, making it suitable for a broader spectrum of operating conditions.

Q2: Can this product be used for extended periods in outdoor environments characterized by heavy dust and rainfall?

A2: This product features an all-metal gear structure and contains no elastic components—such as rubber or nylon—that are prone to aging. It operates stably in humid, dusty outdoor environments; routine periodic lubrication with grease is the only maintenance required. This makes it an ideal choice for year-round use in mining operations and outdoor crushing plants.

Q3: Is the GICL coupling a suitable choice for equipment that frequently switches between high and low operating speeds?

A3: The GICL Type Drum Gear Coupling ensures smooth power transmission under both high- and low-speed operating conditions, offering excellent vibration damping and noise reduction capabilities. Vibrational shocks resulting from frequent speed fluctuations are effectively buffered and absorbed through the meshing of the gear teeth, thereby minimizing wear on the shaft system and the reducer.

Q4: What if the required shaft bore dimensions do not match the standard specifications? Can the factory perform custom bore machining?

A4: We support custom machining services. As a direct manufacturer, we can machine non-standard shaft bores to match the actual shaft diameters of our customers' equipment. Additionally, for applications involving corrosive environments or high-temperature conditions, we can apply specialized surface treatments to meet the specific assembly requirements of non-standard machinery.
