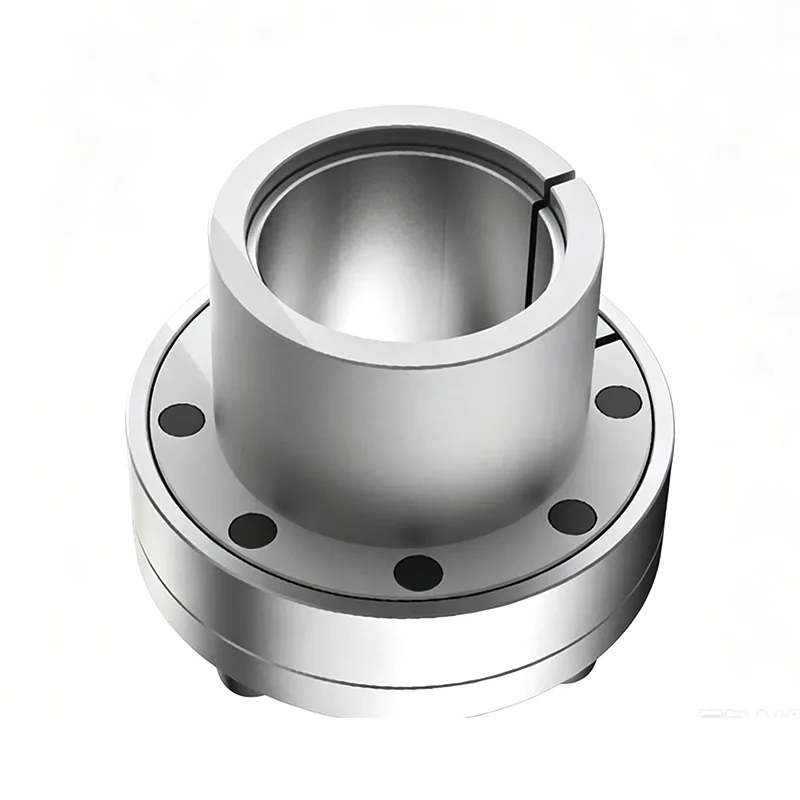

Type Z11 Locking Assembly

The Type Z11 Locking Assembly is distinguished by its ultra-thin axial dimensions, serving as a specialized, high-precision, heavy-duty coupling component designed specifically for confined installation environments. It relies on a finely ground, self-locking tapered structure to achieve highly coaxial power transmission. The product excels in high-precision centering, shock absorption/load relief, and environmental durability; assembly and adjustment can be quickly completed by a single person. It allows for direct retrofitting into both new and existing precision machinery without requiring any structural modifications to the machine body, demonstrating exceptional applicability within the field of light industrial precision transmission.

High-Precision Centering Performance

Leveraging a fine-grinding process on its tapered surfaces, the assembly achieves automatic self-centering. It has been custom-developed for high-precision transmission scenarios—such as servo linkages and precision machining operations—and is engineered to structurally minimize radial runout errors.

1. Both the inner and outer tapered surfaces undergo precision grinding; during the locking process, the assembly automatically centers itself with high accuracy. This keeps coaxial errors within a minimal range, effectively preventing issues related to eccentricity and radial runout during equipment operation.

2. It fully meets the operational standards required for high-precision applications—including servo linkages, precision cutting, and uniform-speed conveying—consistently maintaining equipment operational accuracy and ensuring the long-term stability and reliability of the entire machine system.

Shock Absorption and Load Relief Protection

Capitalizing on a structural advantage where the entire contact surface bears uniform pressure, the assembly effectively mitigates instantaneous impact stresses generated during equipment start-up and shut-down cycles, thereby providing targeted protection for critical and valuable components such as precision shafts and bearings.

1. The Type Z11 Locking Assembly establishes uniform contact and pressure distribution across its entire surface area. This effectively dampens the impact loads generated during the momentary start-up and shut-down of equipment, while simultaneously dispersing torsional stresses caused by sudden fluctuations in load.

2. It eliminates the risk of damage to core components—such as precision shafts and bearings—that can result from stress concentration. This reduces the rate of abnormal wear on precision transmission components, thereby extending the overall service life of the entire equipment system.

Comprehensive Durability and Environmental Resistance

1. The product features a factory-applied anti-corrosion and anti-rust surface treatment, making it well-suited for typical workshop environments characterized by dust, mild humidity, and minor oil contamination. Furthermore, the locking integrity remains unaffected by fluctuations in ambient temperature. 1. The surface features anti-rust and anti-corrosion treatments, while also offering dust-proof, anti-oxidation, and mild oil-resistant properties; this ensures stable and continuous operation in both standard industrial environments and moderately humid working conditions.

2. The raw materials possess stable physical and chemical properties; consequently, clamping force remains constant even amidst environmental temperature fluctuations, preventing issues such as loosening or seizing. This ensures stable, reliable performance over the long term.

Advantages in On-Site Assembly and Commissioning

Installation eliminates the need for thermal assembly equipment and complex tooling, allowing a single individual to independently complete the locking process. The use of a standardized locking torque minimizes the time-consuming process of repeated adjustments, thereby reducing labor costs.

1. Assembly requires neither heating equipment nor specialized complex tools; standard fasteners are sufficient to achieve secure locking. The axial installation position can be freely adjusted, facilitating convenient alignment and calibration.

2. The Type Z11 Locking Assembly utilizes a standardized tightening torque setting, eliminating the need for assembly personnel to repeatedly fine-tune parameters. This reduces the labor hours required for both initial machine assembly and subsequent maintenance, effectively saving on on-site labor expenses.

Compatibility Across Diverse Working Conditions

This product bridges two major application categories: light-load precision equipment and small-to-medium heavy-duty transmission systems. It can be installed directly—without requiring structural modifications to the main equipment body—whether for the pre-assembly of new machinery or the retrofitting of existing equipment.

1. Type Z11 Locking Assembly is compatible with a wide range of light-duty precision machinery while simultaneously meeting the transmission requirements of small-to-medium heavy-duty applications, effectively balancing both transmission precision and load-bearing stability.

2. Boasting exceptional versatility, the product allows for the retrofitting of both new and old equipment without the need to alter the machine's structural body; users can simply replace the original connecting components to put the equipment back into operation. This capability addresses the precision transmission accessory requirements across numerous industrial sectors.

Scope of Application

The Type Z11 Locking Assembly is primarily designed to serve as a key accessory for precision machine tools, printing machinery, textile equipment, servo transmission systems, precision automation equipment, and small-scale speed reducers. It stands as the preferred locking component solution for precision transmission equipment operating within space-constrained environments.

Basic Dimensions and Parameters of Type Z11 Locking Assemblies
