Type Z8 Locking Assembly

Manufactured by Shanghai Jiteng Machinery Technology Co., Ltd., the Type Z8 Locking Assembly is a high-torque, heavy-duty locking connector. Based on the principle of precision tapered-surface friction locking, it enables high-strength power transmission without the need for keys. Characterized by ease of installation, superior positioning capabilities, and convenient disassembly, it is particularly well-suited for industrial transmission environments involving confined spaces, heavy loads, and frequent start-stop cycles. As an economical keyless connection component for general heavy machinery, it is widely utilized in sectors such as metallurgy, building materials, conveying machinery, industrial fans, water pumps, and gearbox support applications.

Core Features

1. Heat-Treated Alloy Construction for Enhanced Strength

The Type Z8 Locking Assembly is precision-machined from high-quality alloy steel. Undergoing a rigorous quenching and tempering heat treatment process, the assembly exhibits high overall strength and excellent toughness, along with superior wear resistance and resistance to deformation. Its tapered surfaces are processed to high-precision standards, ensuring a tight and uniform fit. This allows for the generation of a durable and stable radial clamping force, facilitating the smooth transmission of high torque while effectively preventing common transmission failures—such as slippage or shaft misalignment—at the source.

2. Keyless Assembly Design

Utilizing a keyless friction-based transmission structure, this design eliminates the need to machine keyways into the shaft or hub. Consequently, it avoids damaging the base material of the equipment and fully preserves the shaft's original mechanical strength. This effectively mitigates common failure modes associated with traditional keyed connections—such as shaft fracture, surface wear, and loose fits—thereby significantly reducing the probability of transmission-related equipment failures.

3. Flexible Assembly and Maintenance

The installation process requires no heat-fitting or heating procedures; locking and positioning can be achieved simply by uniformly tightening the high-strength bolts. The axial mounting position is freely adjustable, allowing for flexible and convenient on-site commissioning. Even after prolonged operation, the assembly remains free of seizing or jamming issues, making subsequent disassembly and maintenance simple and hassle-free. It can be utilized as a single independent unit or combined in multiple sets to increase overall torque-carrying capacity, thereby accommodating the diverse load requirements of various equipment types.

Adaptability to Operating Conditions

1. Universal Compatibility with New and Existing Equipment

Possessing exceptional overall versatility, the assembly can be installed and utilized directly—whether as a pre-installed component in brand-new equipment or as a replacement part for upgrading the transmission systems of older machinery. This eliminates the need for structural modifications to the main equipment body, thereby significantly reducing the costs and technical complexity associated with equipment upgrades and retrofits.

2. Compatible with a Wide Range of Heavy and Light Industrial Machinery

The Type Z8 Locking Assembly is broadly compatible with a diverse array of general-purpose light and heavy industrial machinery. Applications include conveyors, mixers, crushers, industrial fans, cooling tower systems, and auxiliary metallurgical transmission equipment, covering the transmission requirements across a multitude of industrial scenarios.

3. Optimized Equipment Operating Status

By selectively replacing aging or failed transmission components, issues such as loose connections and unstable power transmission can be effectively resolved. This enhances the overall operational stability of the machinery and reduces the frequency of equipment downtime caused by malfunctions.

Practical Advantages

1. Universal Standard Specifications

The entire product series utilizes industry-standard dimensions and specifications, offering excellent interchangeability and full compliance with universal industrial sizing standards. When components wear out, direct replacement parts can be selected and installed immediately without the need for secondary machining or modification, significantly boosting the efficiency of equipment maintenance and component replacement.

2. Wear-Resistant Structure

The Type Z8 Locking Assembly contains no internal wear-prone components; therefore, it requires neither periodic lubrication nor frequent routine inspections and maintenance. Once installed, it ensures long-term, stable operation, substantially reducing the daily workload associated with operations and maintenance, and saving on labor costs for upkeep.

3. Long-Term Operational Stability

Featuring a robust structure that is highly resistant to wear and deformation, the assembly ensures continuous, stable operation over extended periods with an extremely low failure rate.

Basic Specifications and Parameters

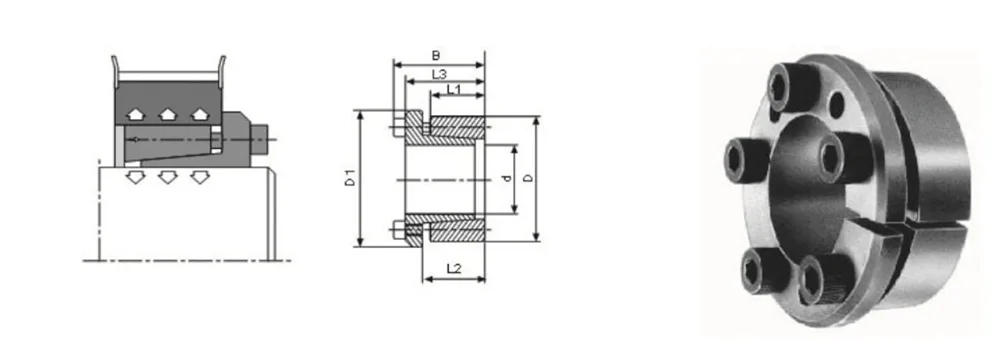

The Type Z8 Locking Assembly features a comprehensive system of standard dimensions and performance parameters. You can select the precise model best suited to your application by cross-referencing your equipment's shaft diameter, required transmission torque, and available installation space against the basic dimension parameter chart for the Type Z8 Locking Assembly.

FAQ

Q1: In which operating environments is the Type Z8 Locking Assembly most suitable?

A1: It is specifically designed for industrial transmission applications involving confined installation spaces, heavy loads, and frequent equipment start-stop cycles. It is widely utilized in general heavy industrial machinery—such as metallurgical equipment, construction material machinery, conveyor systems, industrial fans, water pumps, and speed reducers—and is equally well-suited for production environments requiring continuous, uninterrupted operation.

Q2: Does installing the Z8 Locking Assembly require thermal fitting (heating) or specialized equipment?

A2: This product requires neither thermal fitting processes nor complex, specialized tools. Installation and positioning are achieved simply by uniformly tightening the high-strength bolts. The assembly process is straightforward, the positioning is adjustable, and the technical threshold for on-site installation is extremely low.

Q3: Does the Z8 Locking Assembly require periodic maintenance or lubrication during long-term use?

A3: This product contains no wear-prone components; therefore, it requires neither periodic lubrication nor frequent routine maintenance. Once installed, it ensures long-term, stable operation, thereby significantly alleviating the burden of equipment operations and maintenance for businesses.
