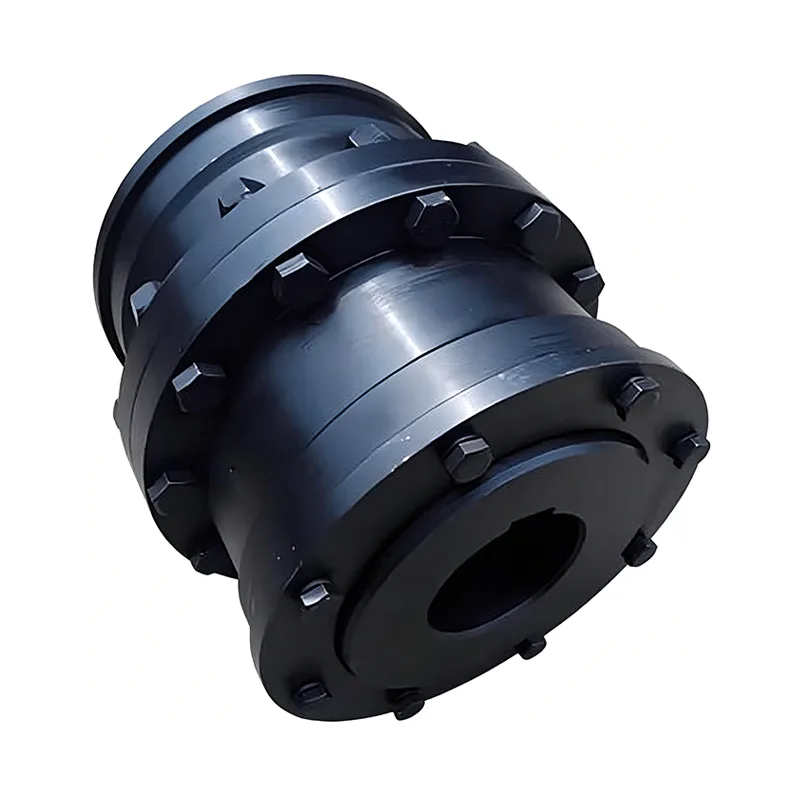

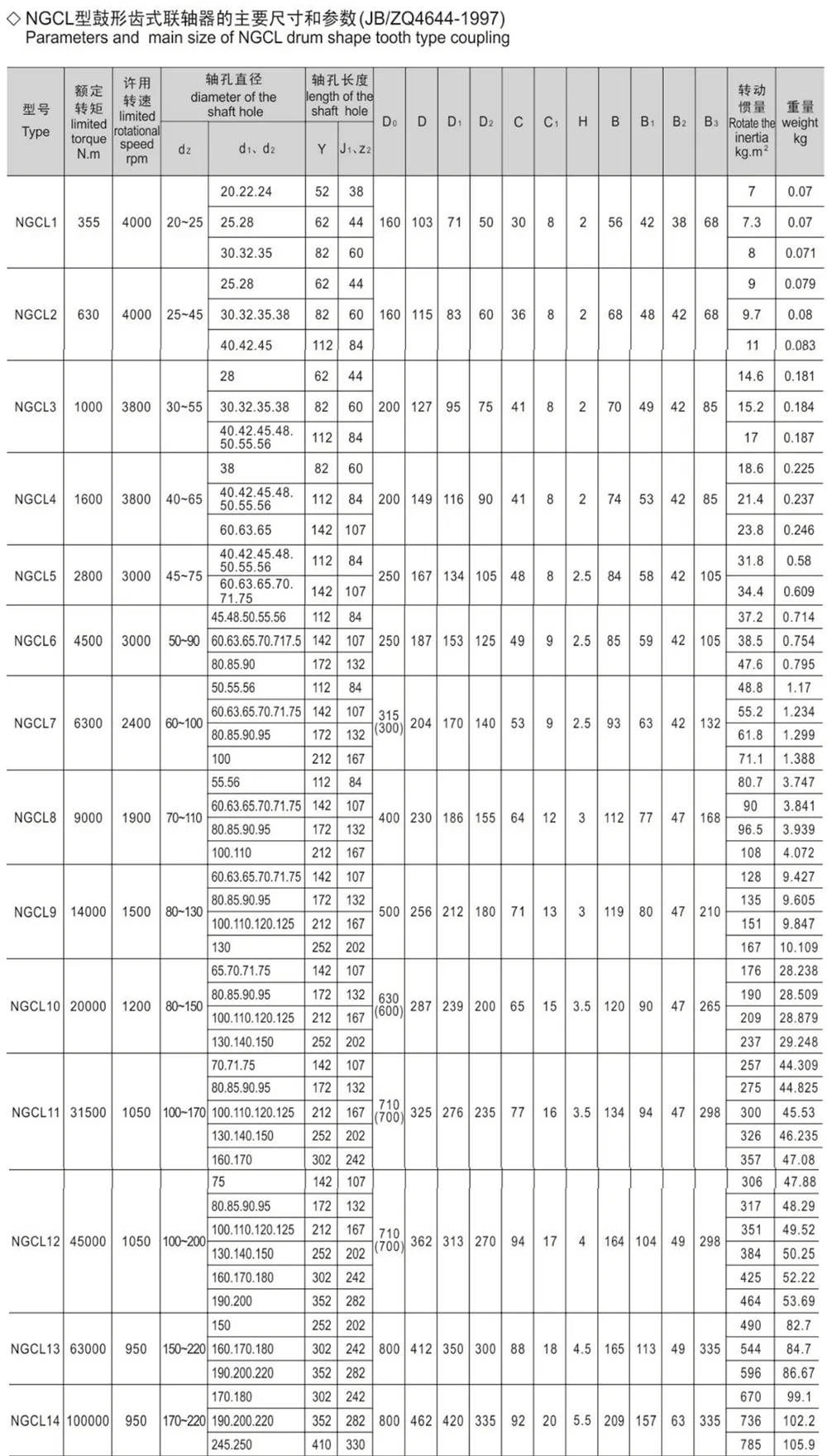

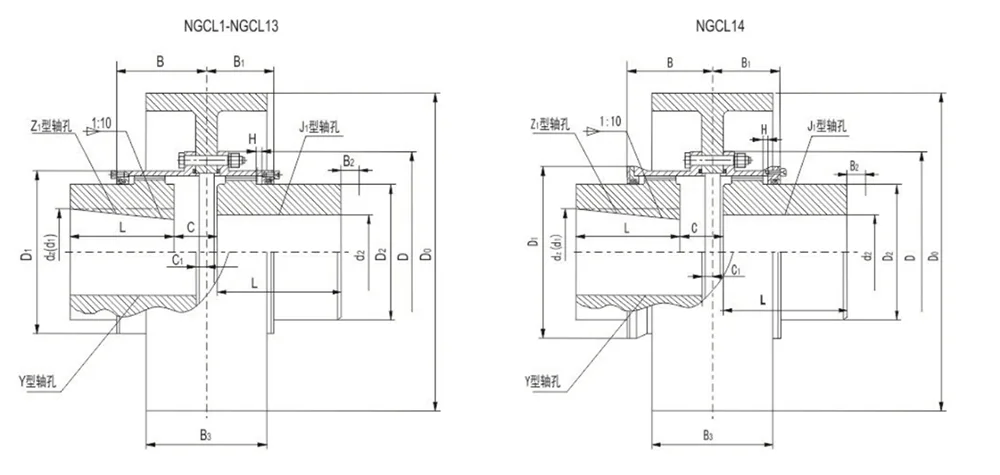

The NGCL Type Drum Gear Coupling is a specialized, integrated transmission component for hoisting machinery—a rare customized product on the market that uniquely combines a braking wheel and a gear coupling into a single unit. Unlike conventional gear couplings—which require separate assembly, the addition of a standalone braking wheel, and tedious on-site alignment procedures—the NGCL integrates the transmission gear body and the braking wheel into a single, unified casting. Shipped as a complete structural unit, it effectively eliminates common issues at the source, such as on-site assembly misalignment and braking synchronization failures.
The braking wheel undergoes precision machining to ensure a flat, smooth friction surface; combined with the misalignment-compensating capabilities of its crowned gear teeth, the unit not only reliably transmits heavy-duty torque but also facilitates precise braking in conjunction with various brake systems—specifically addressing the operational demands of hoisting equipment, such as frequent starts, stops, and instantaneous braking requirements.
The braking wheel and the coupling body are cast as a single, integrated unit. This eliminates the need to separately purchase and install independent braking components, thereby simplifying the overall transmission layout of the machinery. It significantly conserves the limited installation space typically available within hoisting equipment, resulting in a more compact and streamlined structural configuration.
The friction surface of the braking wheel is processed using precision turning techniques, ensuring exceptional flatness and tight dimensional tolerances. This allows for a perfect, seamless interface with a wide range of standard brake systems currently available on the market, ensuring sensitive braking response without any stuttering or lag.
It achieves synchronized, coordinated operation between power transmission and mechanical braking. This effectively resolves common operational issues inherent to hoisting equipment—such as high-frequency starts and stops, delayed braking response, and significant coaxiality deviations during on-site assembly—while being specifically engineered to withstand the alternating shock loads characteristic of hoisting operations.
Through a rationalized structural layout, the NGCL Type Drum Gear Coupling is comprehensively tailored to meet the high-intensity and high-frequency operational demands of hoisting equipment across three key dimensions: mating precision, environmental protection, and ease of assembly/maintenance.
- High Rigidity; Resistant to Deformation and Loosening: The brake wheel and the gear body feature high-precision mating and strong structural integrity, ensuring ample overall rigidity for the unit. Under the influence of instantaneous shocks and alternating loads typical of hoisting operations, the coupling remains resistant to structural deformation, flange loosening, and gear body misalignment, thereby ensuring exceptional operational stability.
- Fully Sealed; Adapted for Harsh Environments: Equipped with a high-quality composite sealing structure, the coupling offers triple-layer protection against dust, water ingress, and grease leakage. This enables it to withstand long-term, high-intensity continuous operation in outdoor, open-air environments characterized by high dust levels, high humidity, and all-weather conditions.
- Convenient Assembly; Simple Maintenance: The overall structure is well-organized, facilitating easy assembly, alignment, and fine-tuning without the need for specialized or complex tooling. Routine maintenance requires only periodic lubrication, effectively reducing labor costs associated with upkeep and minimizing equipment downtime losses, thereby ensuring the long-term, stable operation of the machinery.
- Periodic Lubrication and Upkeep: Replenish with high-quality gear grease at regular intervals based on operational frequency. For applications involving frequent starts and stops, it is recommended to inspect the lubrication status monthly and perform a complete grease replacement every 3 to 6 months. This prevents dry friction on gear surfaces, abnormal wear, and transmission stuttering, ensuring smooth engagement of the drum-shaped gear teeth.
- Brake Wheel Surface Inspection: During routine inspections, pay close attention to the condition of the brake wheel's friction surface. Promptly remove any accumulated dust, oil residue, or impurities to prevent surface slippage, which could lead to brake failure or delayed braking response. If the friction surface exhibits uneven wear, grooving, or deformation, perform immediate repairs or replacements to ensure braking precision.
- Sealing and Fastener Inspection: Periodically inspect the integrity of the end seals and gaskets. Replace them immediately if signs of aging, leakage, or damage are detected to prevent dust and rainwater from entering the interior and causing wear to the gear body. Simultaneously, check the tightness of the flange bolts to prevent loosening or misalignment caused by prolonged vibration. - Operational Condition Management: Strictly prohibit prolonged operation under overload or over-speed conditions. Avoid frequent, high-intensity emergency braking to minimize instantaneous impact wear on the gear body and brake drum. For equipment operating outdoors, ensure adequate protective measures are in place to reduce prolonged exposure to direct sunlight and rainwater immersion, thereby slowing down the aging rate of components.
Jiteng adheres strictly to industry standards throughout the entire production process of our NGCL Type Drum Gear Couplings. We have established a comprehensive service chain—spanning quality inspection, inventory management, custom manufacturing, and after-sales support—to safeguard our customers' purchasing and operational interests.
- Rigorous Multi-Stage Quality Inspection: Before leaving the factory, every finished product undergoes a sequence of three core inspection stages: precision dimensional verification, rated torque load testing, and comprehensive visual screening. This rigorous process ensures that no defective products are shipped, guaranteeing the stable and reliable quality of every unit.
- Direct-from-Factory Supply with Ample Stock: Operating on a pure direct-sales model, we eliminate the layers of markups typically imposed by intermediaries. We maintain a ready stock of standard specifications to ensure rapid delivery. Furthermore, large-volume purchases qualify for tiered pricing discounts, offering exceptional value for money.
- Comprehensive Non-Standard Customization Support: We offer full-dimensional customization capabilities to meet specific equipment requirements—including non-standard external dimensions, specialized bore sizes, and unique keyway specifications. Additionally, we can implement process upgrades and modifications tailored to special operating environments, such as those involving high temperatures, high humidity, or heavy dust loads.
- One-Stop Technical and After-Sales Support: We provide a range of complimentary technical services—including product selection guidance, installation instructions, and operational optimization consulting—backed by a robust and comprehensive after-sales support system.
- Q1: What is the key difference between the NGCL coupling and the GIICL/GICL gear couplings?
A1: The NGCL Type Drum Gear Coupling features an integrated, one-piece brake drum design, serving the dual function of both power transmission and braking. It is specifically designed for use in hoisting and winching equipment. In contrast, the GIICL and GICL models are purely transmission-focused couplings; they lack an internal braking structure and require the separate installation of an external brake drum. These models are typically utilized in heavy-duty machinery—such as ball mills and conveyor systems—where braking functionality is not required.
- Q2: If my existing hoisting equipment utilizes an older-model brake system, will the NGCL brake drum be compatible with it?
A2: The standard braking wheel disc surface is machined to match common brake dimensions, allowing for direct installation with most mainstream hoisting brakes currently available on the market. For specialized, non-standard brake specifications, our factory can customize the outer diameter and width of the braking wheel upon request.
- Q3: Is this coupling suitable for long-term use on overhead cranes operating in outdoor industrial facilities?
A3: Yes, it is. The product features a built-in dustproof and waterproof sealing structure capable of preventing the ingress of outdoor rainwater, sand, and dust. This ensures it meets the operational requirements—including frequent starts and stops—of outdoor hoisting equipment under all-weather conditions.
