The TCL Drum Gear Coupling is a lightweight, gear-type transmission component developed to meet the standard transmission requirements of small to medium-sized general-purpose machinery. Unlike heavy-duty gear couplings—which are characterized by their large size and bulky construction—this Gear Coupling prioritizes a miniaturized, compact structural design. While retaining the core performance capabilities of drum-shaped teeth—specifically multi-dimensional misalignment compensation and vibration damping—it significantly reduces the overall space occupied by the equipment.
1. Damping performance with a higher buffer, and a relatively large axial, angular, radial displacement error compensation capabilities.
2. As with plastic and metal parts, has a good self-lubricating properties, is a very good approximation of universal flexible coupling.
3. Shell molding process simplified, low cost. Ambient temperature -20 ℃~+80 ℃.
4. Particularly simple assembly and maintenance. Widely used in various hydraulic pumps, lubrication pumps, pneumatic pumps, compressors, textile machines and other machinery.

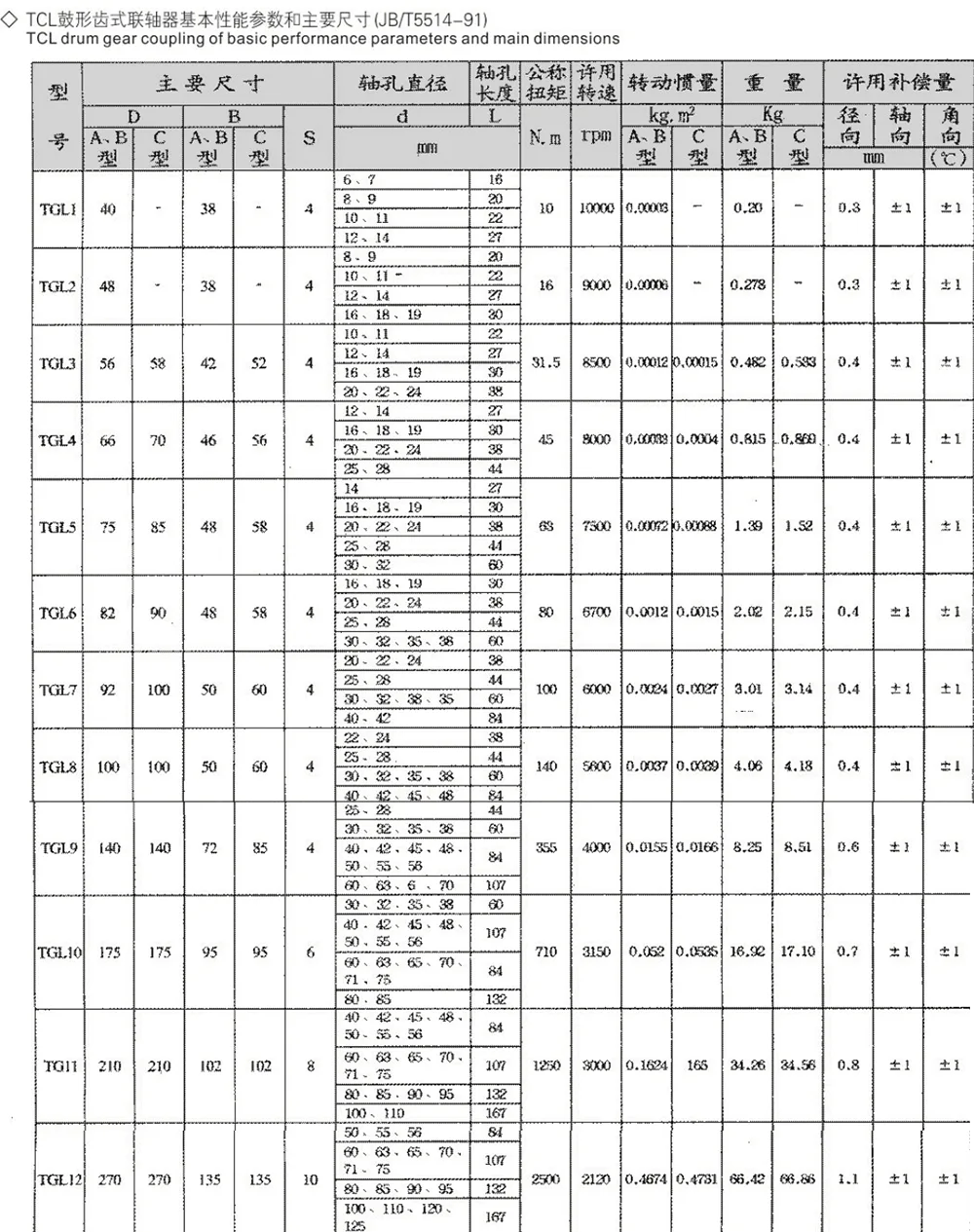

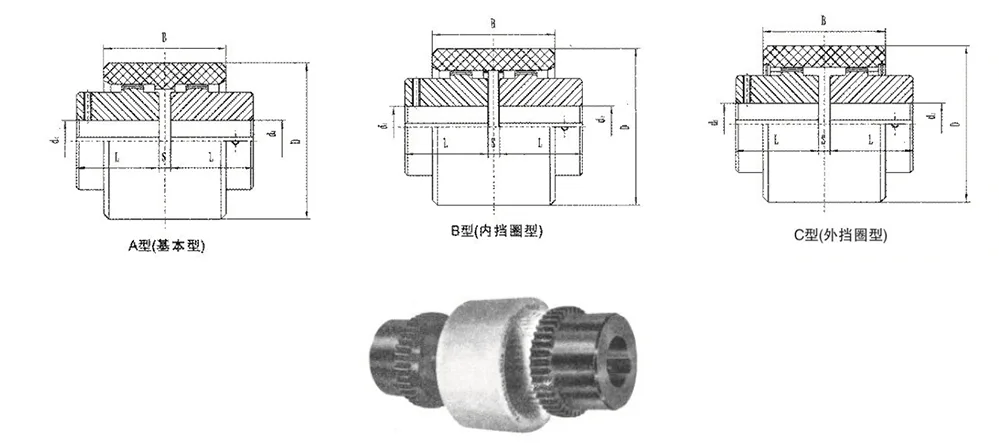

5. TCL Drum Gear Coupling can be made of steel shell (B-type or C type), to deliver more torque.
1.Design selection, it is necessary for the calculation of torque, and to consider the torque changes, starting frequency, environmental conditions, a reasonable choice condition factor.
2.Dust and larger venues, with the C-type structure is better.
3.Assembly Do not leave debris in the cavity.
4.Assembled, the inner ring should be able to slide freely by hand.
5.Small size screws can be used
Use B-TGL6 drum gear coupling
Active side: J1 type shaft hole, A type keyway d = 22, L = 38
Slave side: J1 type shaft hole, A type keyway d = 32, L = 60
The TCL Drum Gear Coupling features a small overall footprint and a compact structure; once assembled, it occupies virtually no additional installation space on the equipment, making it ideally suited for small to medium-sized machinery with compact layouts. The product's assembly and disassembly processes are simple and efficient; on-site alignment, removal for inspection, and routine maintenance require no complex procedures. This significantly reduces equipment assembly lead times and subsequent maintenance man-hours, effectively meeting the demands for rapid, batch-scale equipment installation.
The TCL Drum Gear Coupling boasts exceptional three-dimensional misalignment compensation capabilities, precisely offsetting radial, axial, and angular installation deviations that may arise during equipment assembly, while also dynamically adapting to structural deformations that occur during operation. During equipment start-up, shut-down, and load fluctuations, it effectively dampens vibrations and shock loads, thereby alleviating operational stress on the entire shaft system. By minimizing wear and tear on transmission components, it safeguards critical precision drive elements—such as motors, reducers, and spindles—at the source, thereby effectively extending the overall service life of the machinery.
Featuring an upgraded, fully enclosed sealing structure, the coupling provides dual protection against both dust ingress and lubricant leakage, making it suitable for standard industrial continuous-operation environments and ensuring stable, reliable performance.
Equipped with this advanced enclosed sealing mechanism, the TCL Drum Gear Coupling effectively blocks external dust and impurities from entering the internal gear-meshing zone while simultaneously preventing the leakage of internal lubricating grease, thereby ensuring that the gear teeth remain in a well-lubricated state over the long term.
It reliably supports continuous equipment operation in ambient-temperature environments with light dust levels. The coupling contributes to low overall machine noise and a reduced probability of failure, eliminating the need for frequent downtime for maintenance and inspection, and thereby significantly lowering corporate equipment maintenance costs and losses associated with operational downtime.
Jiteng is a professional manufacturer and supplier of gear couplings in China. With our own dedicated factory, we maintain a comprehensive range of specifications and ample inventory, enabling us to effectively address both standardized mass-production requirements and specialized, non-standard customization needs. We ensure stable delivery and offer broad compatibility across various applications.
Our TCL Drum Gear Coupling series features a complete range of specifications and categories; standard models are kept in stock and readily available, allowing us to respond rapidly to customers' bulk purchasing requirements. Furthermore, we support custom machining for non-standard bore diameters and external dimensions, making our products ideal for retrofitting various aging equipment or meeting the specific assembly needs of machinery operating under unique conditions. Our products undergo rigorous quality control to ensure consistent, uniform standards across every unit shipped. Specifically designed to meet the general power transmission needs of small to medium-sized industrial equipment, our couplings deliver stable performance and exceptional value, making them the preferred choice for a wide array of general mechanical transmission applications.
