The GIICL Type Drum Gear Coupling is a high-end gear-type transmission component meticulously engineered for heavy-duty transmission applications characterized by long spans and significant alignment deviations. Unlike conventional single-drum gear couplings, this product employs a precision dual-drum gear meshing structure, resulting in vastly improved fault tolerance and adaptability. Boasting exceptional structural rigidity and high concentricity precision, it resists deformation and loosening even during prolonged operation. It specifically addresses critical industry challenges associated with long-span transmission shafts—such as poor alignment, equipment settlement, frame deformation, and operational displacement.
The GIICL Type Drum Gear Coupling is precisely tailored for heavy industry environments involving long-span transmissions, significant installation misalignments, and continuous, high-intensity operations. It is compatible with a comprehensive range of equipment types and demonstrates exceptional adaptability to diverse environmental conditions, ensuring a low failure rate and high operational reliability.
It serves as a comprehensive accessory solution for a wide array of large and medium-sized heavy-duty machinery—including ball mills, rotary kilns, crushers, hoists, long-distance conveyors, steel rolling equipment, large winches, industrial fans, compressors, and heavy-duty pumps. It covers the core machinery requirements across the mining, metallurgy, building materials, and chemical industries.
It performs reliably in challenging environments—including outdoor open-air sites, high-dust workshops, and humid conditions. It enables equipment to sustain 24-hour, uninterrupted, high-intensity production cycles without frequent breakdowns, thereby effectively preventing costly equipment downtime.
Engineered to specifically address the critical issues associated with long-span transmission shafts—such as susceptibility to misalignment and poor alignment precision—its stable structure resists deformation and loosening. It stands as the standard, preferred component for heavy-duty, long-distance industrial transmission applications.
The unit features a neat, compact overall layout with a flange connection method that ensures a firm and reliable joint, preventing any loosening or shifting during operation. The installation, disassembly, and alignment/commissioning processes are straightforward, requiring no complex tools or specialized technical expertise, thereby significantly reducing on-site labor and time costs.
The GIICL Type Drum Gear Coupling features an integrated, tight-sealing structure that effectively prevents the ingress of external dust while simultaneously eliminating internal lubricant leakage. This extends lubrication intervals, reduces the need for frequent maintenance and oil replenishment, and significantly lowers operational costs and downtime losses for enterprises.
The entire product series utilizes a standardized design, natively compatible with mainstream connection methods such as standard keyways, cylindrical bores, and tapered bores. Furthermore, we support the customization of various non-standard dimensions and special structures, allowing us to match the transmission connection ports of the vast majority of heavy-duty machinery.

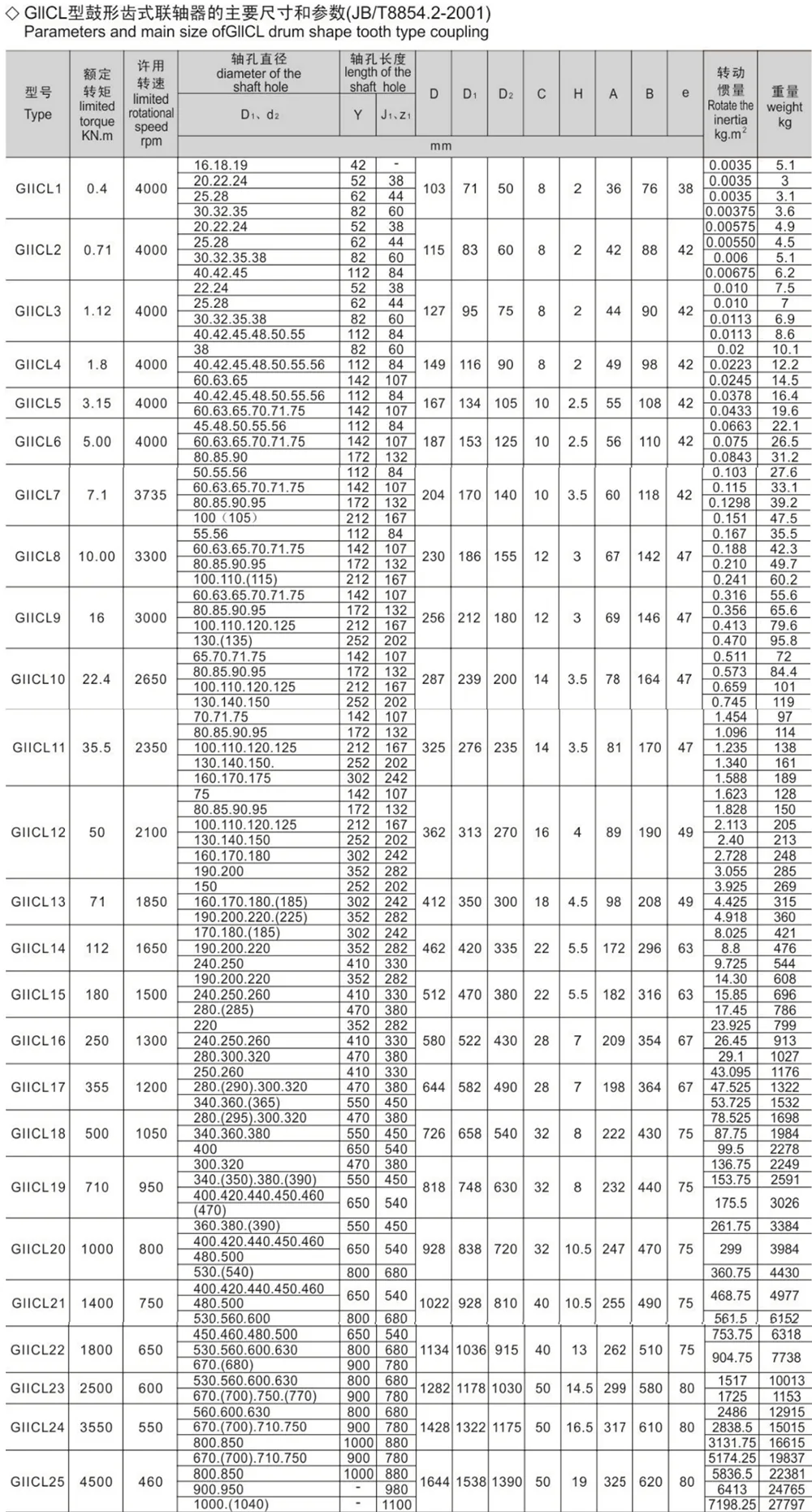

1. the rotation volume and weight are calculated by J1, and including axle extend. 2, the length of axle is determined by J type
2. the hole diameter with bracket are not use when new design.
As an original equipment manufacturer (OEM), Jiteng maintains independent control over the entire value chain—encompassing R&D, production, quality inspection, and after-sales service—thereby safeguarding customer interests across multiple dimensions: quality, supply reliability, customization capabilities, and service excellence.
- Rigorous, End-to-End Quality Control: Before leaving the factory, every GIICL Type Drum Gear Coupling undergoes three core inspection stages: precision dimensional measurement, rated torque testing, and comprehensive visual quality inspection. This rigorous process eliminates the release of defective products and ensures that every unit operates with stability and durability.
- Direct-from-Factory Value (No Intermediaries): Our pure factory-direct supply model eliminates the price markups associated with intermediaries. This offers significant cost-performance advantages for bulk purchasing, making it an ideal choice for equipment manufacturers seeking batch components and for industrial/mining enterprises requiring regular inventory replenishment.
- Flexible Non-Standard Customization: We offer flexible customization services, including non-standard dimensional machining, specialized shaft bore configurations, and modifications tailored to specific operating conditions. We can specifically optimize product design and manufacturing processes to suit challenging environments—such as those involving high temperatures, high humidity, or high dust levels.
- Comprehensive Technical and After-Sales Support: We provide a suite of supporting services, including one-on-one product selection guidance, technical troubleshooting for installation, and customized equipment integration solutions. Our goal is to deliver stable, efficient, and durable heavy-duty transmission solutions to a wide range of industrial and mining enterprises.
Leveraging a precision-meshed, double-crowned gear structure, the GIICL Type Drum Gear Coupling offers deviation compensation capabilities and operational fault tolerance that far exceed those of standard couplings. This makes it ideally suited for adapting to complex, variable, and non-standard operating conditions. - Intelligent Multi-Dimensional Misalignment Compensation: Featuring a precision dual-crowned gear meshing design, this coupling comprehensively compensates for axial, radial, and angular misalignments that occur during equipment operation. It perfectly resolves common industrial challenges such as poor alignment in long drive shafts, equipment settlement, frame deformation, and operational displacement.
- Uniform Load Distribution to Prevent Transmission Failures: The specialized gear tooth profile ensures uniform load distribution during meshing. This effectively prevents issues such as localized tooth surface wear, transmission jamming, abnormal operational noise, and power output deviations, thereby significantly enhancing the operational stability of the entire transmission system.
- Adaptability to Complex Conditions with High Misalignment Tolerance: This coupling imposes lower requirements on equipment installation precision. It is well-suited for production environments characterized by significant installation errors and complex, variable operating conditions, and is fully compatible with the transmission retrofit requirements of various aging or modified equipment.
- Q1: What is the core difference between the GIICL-type and the standard GICL-type drum gear couplings?
- A1: The GIICL utilizes a dual-crowned gear meshing structure, offering superior misalignment compensation capabilities, operational fault tolerance, and structural stability. It is specifically designed for complex operating conditions involving long-span drive shafts, significant installation errors, and equipment settlement or deformation. The GICL, conversely, features a conventional single-crowned structure; it is better suited for standard short-distance, heavy-duty applications where alignment precision is relatively high. Consequently, the application scenarios for these two types differ significantly.
- Q2: Why is the GIICL coupling the preferred choice for long-distance conveying equipment?
- A2: Long-span drive shafts are highly susceptible to issues such as misalignment, structural settlement, and frame deformation. The GIICL's exceptional multi-dimensional misalignment compensation capabilities make it perfectly suited for such conditions. Furthermore, its robust structural rigidity prevents loosening or deformation, while its effective sealing mechanism ensures an extremely low failure rate. This guarantees the long-term stability of heavy-duty, long-distance transmission systems, making it the dedicated and ideal choice for such applications.
- Q3: Is the routine maintenance for this coupling difficult?
- A3: The GIICL Type Drum Gear Coupling features a tightly sealed structure that effectively prevents dust ingress and oil leakage. This allows for extended lubrication intervals, eliminating the need for frequent equipment shutdowns to replenish lubricant or perform maintenance. Routine maintenance simply requires periodic checks of the flange bolt tightness and the integrity of the seals, thereby significantly reducing equipment downtime and associated losses.
