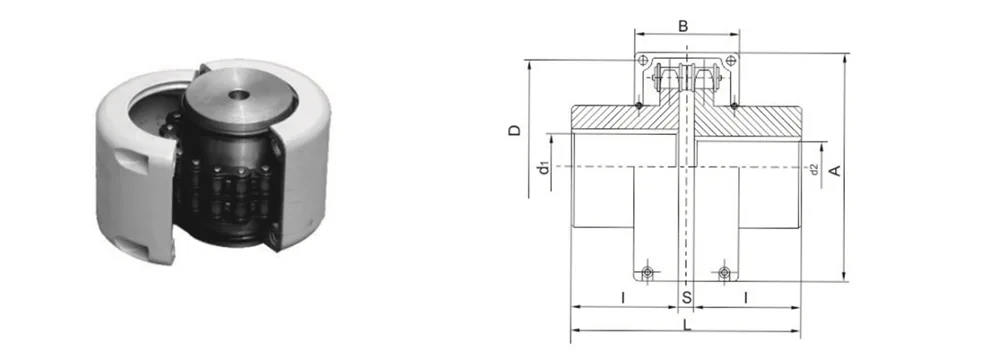

As a professional manufacturer and reliable supplier of heavy-duty couplings, Jiteng introduces the KC type roller chain coupling—an internationally recognized, heavy-duty flexible connector utilizing chain-based technology. It is currently one of the most widely utilized standard couplings in heavy industrial equipment worldwide. Unlike the domestically customized GL-type chain coupling, the KC model is manufactured strictly in accordance with universal international dimensional standards, offering superior overall interchangeability and a more compact outer diameter profile.
Leveraging the inherent clearance within its double-row chain structure, the coupling can adaptively compensate for radial, axial, and angular misalignments that occur during equipment assembly. This reduces the difficulty of alignment during the installation phase and minimizes assembly time.
For a given torque rating, the KC type roller chain coupling features a smaller outer diameter compared to conventional elastic couplings and other chain-type couplings. It occupies less installation space, making it ideal for integrated equipment systems with compact internal structures and limited clearance.
All components are precision-machined from high-quality steel, rendering them impervious to moisture, dust, oil contamination, and extreme temperatures. Unlike couplings utilizing elastic elements, this design eliminates failure modes such as elastomer aging, cracking, or corrosion, making it suitable for use in complex, all-weather industrial environments.
The overall structure is simple; disassembly and replacement require no specialized tools, allowing a single person to complete maintenance tasks. However, due to the inherent rotational backlash (free travel) within its structure, this model is strictly prohibited for use in transmission systems subject to heavy-duty reverse shock loads or frequent directional reversals.
The product adheres to universal international manufacturing standards and features a mature, comprehensive specification system. Products of the same specification can serve as direct replacements for equivalent overseas models, offering exceptional component interchangeability. This effectively resolves common pain points associated with sourcing spare parts for imported equipment—specifically, the difficulty of procurement and lengthy delivery times.
Compatible with the vast majority of medium-to-heavy-duty transmission equipment currently on the market, including various standard gear reducers, industrial fans, water supply and drainage pumps, material conveyors, and a full range of specialized mining machinery.
Thanks to its stable load-bearing performance, exceptional environmental adaptability, and affordable unit price, the KC type roller chain coupling has become a globally recognized classic component for medium-to-low-speed, heavy-duty, unidirectional power transmission applications.
The sprocket blanks are crafted from high-quality carbon structural steel. After undergoing multiple stages of precision turning and gear hobbing, the tooth surfaces are subjected to a hardening and quenching treatment. This ensures sufficient surface hardness, providing excellent resistance to compressive stress and wear. During prolonged meshing operations, the sprockets are highly resistant to issues such as tooth chipping, slippage, or abnormal wear.
Equipped with specialized, thickened double-row transmission chains, the coupling features a high tensile limit and a load-bearing capacity far exceeding that of single-row chains. Its overall torsional rigidity is substantial, allowing it to reliably handle continuous medium-to-heavy loads without succumbing to failures such as chain elongation or breakage.
Power transmission loss is extremely low, resulting in superior transmission efficiency. Throughout the equipment's operation, the system remains free of vibration and loose components, ensuring the entire downstream transmission system runs continuously at a constant speed and minimizing the likelihood of unplanned equipment downtime.
The KC type roller chain coupling is suitable for mining machinery, metallurgical conveying equipment, chemical mixing units, and building material molding production lines. It is designed to withstand complex production environments characterized by high dust levels, high humidity, and mild corrosion.
Widely utilized in field-operation agricultural machinery, stationary material conveying equipment, large-scale ventilation fans, and associated gear reducers, the coupling is well-suited for both outdoor open-air operations and indoor continuous production environments.
Recommended exclusively for equipment operating at medium-to-low rotational speeds under continuous, heavy-duty, unidirectional loads. It is strictly not recommended for use in precision transmission systems involving frequent forward/reverse cycling, heavy reverse impact loads, or abrupt start-and-stop operations.
- Q1: What is the primary difference between the KC-type and GL-type roller chain couplings?
A1: The KC-type is an internationally recognized standard model; it features a smaller outer diameter and greater versatility, making it ideal for use as a replacement part for imported equipment. The GL-type, conversely, is a domestic model adhering to national standards. The most critical distinction is that the KC series inherently features rotational clearance (or "backlash"), allowing for unidirectional power transmission only; it cannot withstand reverse shock loads. The GL series, conversely, is backlash-free and offers a much broader range of operational applicability.
- Q2: Why are KC type roller chain couplings unsuitable for equipment involving frequent forward and reverse rotation?
A2: The structural design of the product inherently incorporates rotational clearance—also known as "backlash." During the instant of reverse rotation, a severe impact occurs; this can easily lead to sprocket tooth failure or chain breakage, while simultaneously generating loud, abnormal noises. Consequently, this significantly reduces the service life of both the coupling and the host machinery.
- Q3: What routine maintenance is required for all-metal chain couplings?
A3: Routine maintenance is simple. As there are no aging-prone or consumable components, frequent part replacement is unnecessary. Operators need only periodically check the chain tension and replenish the lubricating grease. For operations in dusty or humid environments, regular removal of contaminants ensures long-term, stable performance.
- Q4: Can the KC series be used as a direct replacement for equivalent chain couplings found on imported machinery?
A4: Absolutely. The KC series is developed and manufactured in strict compliance with universal international dimensional standards. Its bore diameter, outer diameter, overall length, and rated torque are all benchmarked against mainstream overseas models, ensuring a high degree of interchangeability. Upon delivery, no bore modification is required; the unit can be installed directly onto the machinery and put into immediate operation.
