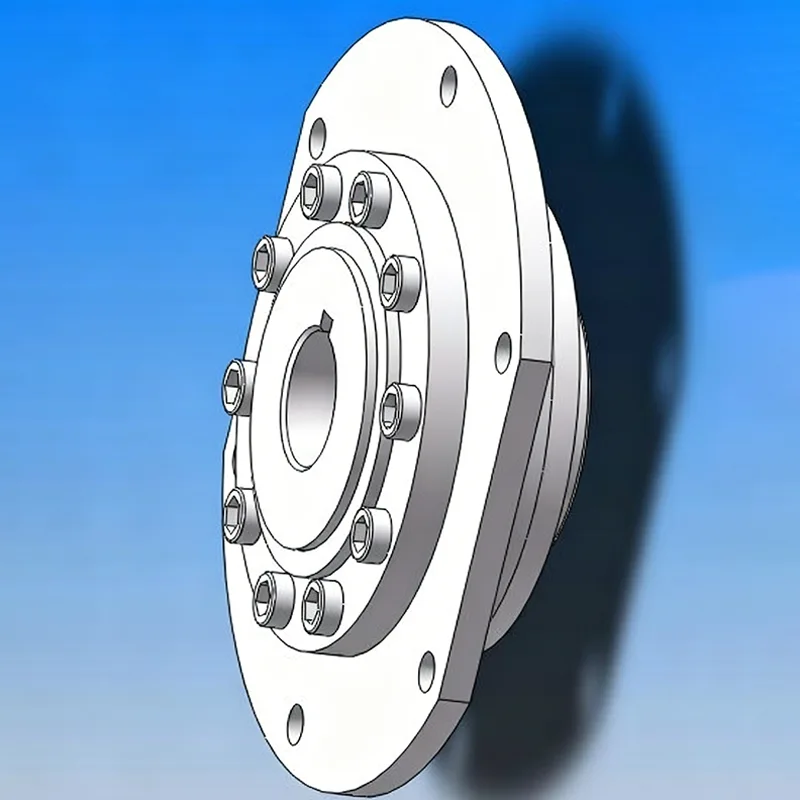

The WJA-type Spherical Roller Coupling is an upgraded transmission connection component specifically designed for heavy-duty and heavy-load working conditions. Relying on a mature spherical roller transmission structure and a highly versatile cylindrical shaft hole connection method, it strikes a balance between ease of installation and operational stability.
Unlike ordinary transmission components, it possesses multi-dimensional displacement compensation, high-strength load-bearing capacity, and strong environmental adaptability. Through integrated forging and precise processing, it enhances structural performance and can effectively handle complex and harsh working conditions as well as high-frequency operation modes for a long time. It is the core preferred component for power transmission in various heavy industrial equipment.
Utilizing high-quality high-strength alloy raw materials, the product is formed through a complete forging process. The overall structure has no joint gaps, and its basic strength and structural toughness far exceed those of ordinary welded products. This ensures that problems such as heavy-load deformation and fracture are avoided from the very beginning.
The entire machine is processed using CNC precision machining. The dimensional errors of key components are controllable, and the coaxiality deviation is small, ensuring the accuracy of component assembly and preventing excessive assembly clearance from causing running jitter, loosening faults.
The WJA-type Spherical Roller Coupling undergoes an overall heat treatment process optimization. This simultaneously enhances the overall hardness and structural toughness of the product, achieving a balance of rigidity and toughness. It can withstand heavy-load impacts and avoid fatigue damage caused by long-term alternating loads.
The core transmission rollers have their contact surfaces finely ground. The mating contact surfaces are smooth and flat, ensuring smooth and unobstructed meshing during operation without any jamming or sticking wear, significantly reducing transmission loss.
Multiple levels of quality inspection standards are implemented, strictly controlling core parameters such as size accuracy, coaxiality, and clearance. This controls the quality from the source and ensures that the product can run continuously without loosening, failure, or unstable performance over a long period.
- Wide temperature range weather resistance: The WJA-type Spherical Roller Coupling has excellent tolerance to high and low temperatures, capable of adapting to extreme weather conditions such as outdoor exposure to sunlight, extreme cold and humidity, unaffected by regular temperature changes, and maintaining stable operation in all seasons.
- Resistance to corrosion in complex environments: With a reinforced sealing structure, it can effectively prevent the erosion of dust, oil, and moisture from the outside, providing comprehensive protection for the internal roller transmission structure, suitable for dusty, greasy, and humid harsh production workshops.
- Adaptability for high-intensity operation modes: It can perfectly adapt to high-intensity operation modes such as 24-hour continuous operation, frequent start-stop, and reciprocating motion of equipment, with continuous and stable power output, without power attenuation or transmission failures.
- Universal heavy-duty application: Suitable for various heavy industrial equipment such as cranes, metallurgical machinery, and mining machinery, it can stably handle various harsh heavy-duty conditions and is a reliable supporting component for heavy-duty transmission systems.

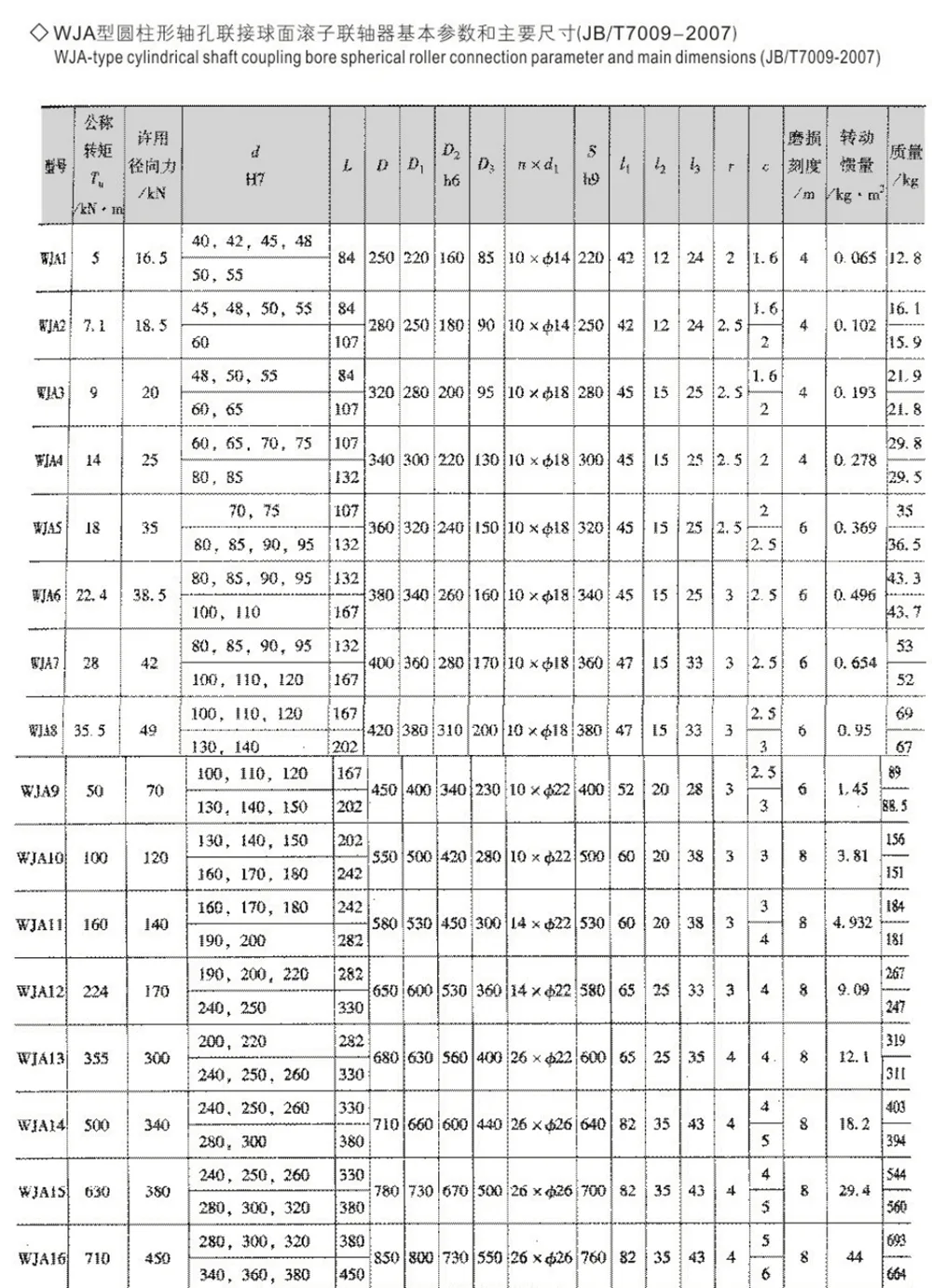

Note: 1. Moment of inertia and mass are calculated according to the minimum diameter of the shaft hole approximately.
2. Use shaft hole diameter and the degree of Si L outside the scope of the listed or other keyway type, in consultation with the manufacturer.

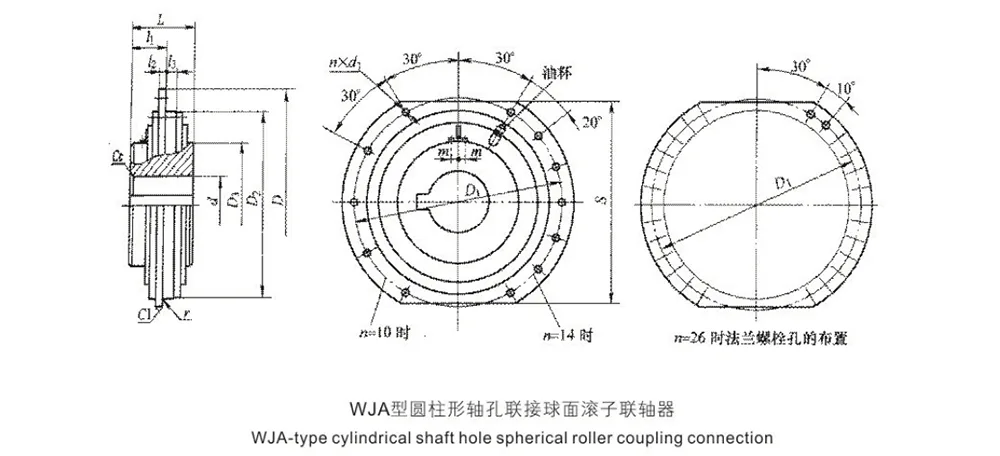

The shaft hole, connection form and dimensions of the WJA type coupling shall comply with the J1-type shaft hole and type A or type B keyway specified in GB/T 3852—1997, and the surface roughness Ra of the shaft hole shall not exceed 3.2μm.
Deburr the coupling before installation. During assembly, apply lubricating grease to the roller cavities.

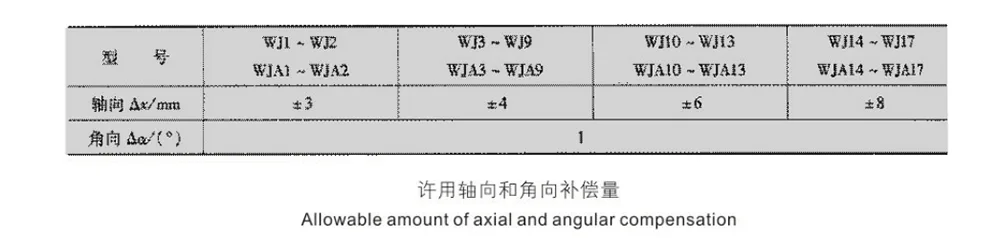

After assembly, each half-coupling shall be able to rotate freely and move axially by the Δx value specified in Table 4-107.
Q1: What are the core advantages of the WJA type spherical roller coupling?
A1: The WJA-type Spherical Roller Coupling uses cylindrical shaft holes for connection, featuring high versatility and simple assembly alignment. It also retains the multi-dimensional displacement compensation capability of the spherical roller coupling, balancing ease of installation with transmission stability. It is specifically designed to adapt to the gearboxes, drums, and motor transmission mechanisms of various heavy equipment.
Q2: Can it be used for a long time in dusty, oily, and humid outdoor environments?
A2: The product is equipped with a reinforced sealing structure, which can effectively prevent dust, oil, and water vapor from entering the internal structure. At the same time, it has excellent resistance to temperature changes in both high and low temperatures, and can be adapted to complex and harsh working conditions such as outdoor open areas, dusty and oily workshops, etc., for long-term operation.
Q3: Can this product be suitable for heavy-load equipment that frequently starts and stops and operates continuously for 24 hours?
A3: The product has undergone overall heat treatment to enhance its strength and has excellent fatigue resistance. It can withstand the impact of frequent startups and stops as well as long-term full-load continuous operation. The power output is stable, the failure rate is low, and it is suitable for high-intensity industrial operation modes.
- Q4: How does the processing technology advantage of the WJA type product benefit the operation of the equipment?
A4: Integrated forging + CNC precision processing ensures the overall machine accuracy, with small coaxiality error and no jitter during operation; the fine grinding treatment of the roller contact surface makes the meshing smoother, the transmission loss lower, and it is less likely to loosen or fail over a long period of operation, significantly reducing maintenance costs.
