The ZL Type Elastic Pin Gear Coupling is classified as a heavy-duty connection component utilizing non-metallic elastic elements. It is a rare hybrid coupling on the market that uniquely integrates the transmission characteristics of gear couplings with the shock-absorbing properties of elastic pins. Unlike conventional elastic pin couplings—which often suffer from the limitation of low load-bearing ceilings—this product draws upon the high-load structural characteristics of gear couplings. By employing MC nylon elastic pins as the core transmission medium, it significantly boosts torque-carrying capacity while simultaneously reducing the overall installation footprint.
The overall structure of the ZL Type Elastic Pin Gear Coupling has undergone targeted optimization, combining the design advantages of both gear structures and elastic pin structures. All machining dimensions and assembly standards strictly adhere to national standards, making the coupling compatible with the vast majority of heavy-duty transmission equipment.
- Unique Semi-circular Groove Engagement Design: The outer edges of the two coupling flanges and the inner edge of the outer sleeve are machined with matching semi-circular grooves designed to securely seat and fix the nylon transmission pins. Power is transmitted from the driving-end flange to the outer sleeve, and subsequently—via the pins—to the driven-end flange; this transmission logic ensures stability and uniform force distribution.
- Defined Temperature Operating Range: Suitable for standard industrial workshop environments, the coupling operates within a permissible temperature range of -20°C to +70°C, thereby meeting the operational requirements of most general heavy-duty equipment used in indoor and semi-outdoor settings.

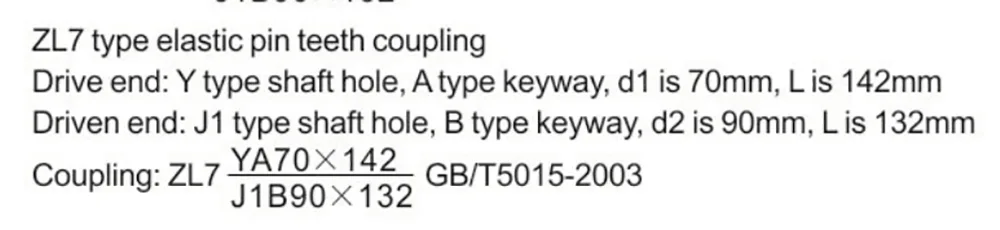

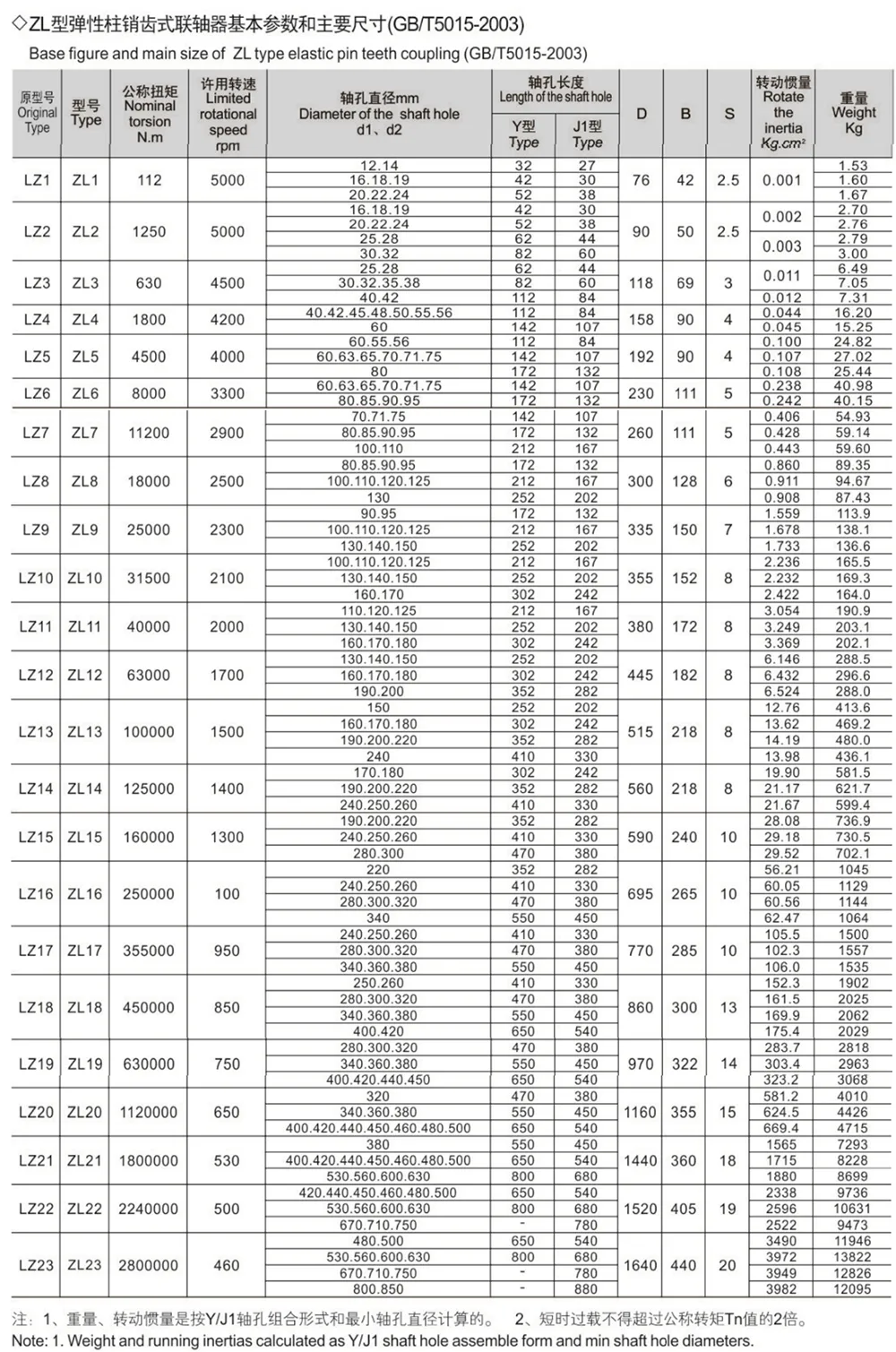

- Unified National Standard Specifications: The product's shaft bore configurations, keyway dimensions, and notation conventions strictly comply with the national standard GB/T 3852-1997: Couplings—Bore Dimensions, Connection Forms, and Sizes. This ensures high interchangeability, allowing for the direct replacement of older standard components without the need for secondary bore modifications.
- Usage and Assembly Restrictions: Due to the structural characteristics of the nylon material, this product generates slight operational noise during use; it is therefore not suitable for precision equipment with strict requirements regarding noise levels. An optional locking kit is available to facilitate reinforced installation, making the coupling suitable for heavy-load applications involving high vibration.

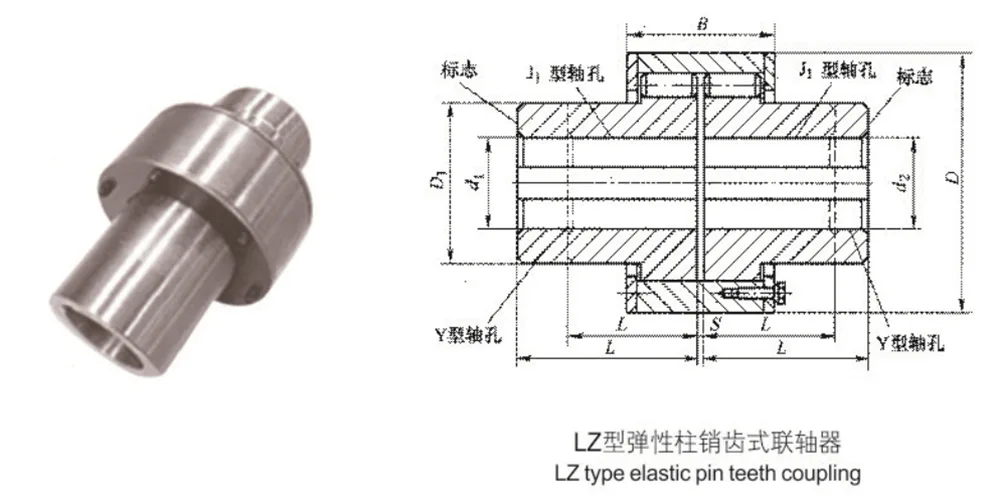

- Core Components: The complete coupling assembly consists primarily of three parts: two coupling halves, an outer sleeve, and multiple MC nylon drive pins. It contains no superfluous precision or fragile components, resulting in a robust and durable structure.
- Interlocking Assembly Method: The outer rims of the two coupling halves feature precisely cut grooves that mate with the inner surface of the outer sleeve to form enclosed positioning holes. The nylon pins are inserted into these holes to mechanically link and secure the driving and driven shafts.
- Transmission Mechanism: During operation, torque is transmitted through the nylon pins, which bear the resulting shear and compressive forces. Simultaneously, leveraging the inherent elasticity of the nylon material, the coupling automatically compensates for axial, radial, and angular misalignment errors. This process also provides simultaneous shock absorption and damping, effectively mitigating the impact of alternating loads.
The ZL Type Elastic Pin Gear Coupling strikes an optimal balance between three core factors: load-bearing capacity, installation footprint, and maintenance costs. Compared to traditional gear couplings and standard elastic pin couplings, it offers superior overall adaptability and is particularly well-suited for low-speed, heavy-load machinery.
- Dual Structural Benefits: It integrates the dual advantages of gear couplings—high torque transmission—with those of elastic pin couplings—shock absorption and damping. The resulting compact structure occupies minimal space, while its load-bearing capacity per unit volume significantly exceeds that of standard elastic couplings of the same size.
- Multi-Dimensional Compensation and Damping: By utilizing high-quality MC nylon pins as the power transmission medium, the coupling benefits from the material's inherent self-damping properties. It automatically compensates for various alignment errors, ensuring smooth operation and effectively mitigating the impact of start-up/shut-down transients and high-frequency vibrations.
- Low, Hassle-Free Maintenance Costs: The lightweight, simplified structure reduces the complexity of installation and commissioning. Furthermore, the nylon pins possess self-lubricating properties, eliminating the need for routine lubrication. When replacing aging pins, there is no need to move the main machinery; the pins can be directly removed and replaced, thereby substantially reducing maintenance expenses.
- Versatile Adaptation for Heavy-Duty Industrial Applications: Our entire product line is mass-produced in strict compliance with national standards, featuring a comprehensive range of specifications and high interchangeability. Constructed from wear-resistant and fatigue-resistant nylon material, these couplings ensure a long service life. They are specifically engineered to suit various low-speed, heavy-duty transmission systems across industries such as mining, metallurgy, chemicals, water pumps, fans, and conveying machinery.
As the primary source manufacturer of ZL Type Elastic Pin Gear Couplings, we maintain rigorous quality control over the entire production process—from raw material procurement to the final factory release. We provide both standardized units and non-standard customization services to domestic and international buyers.
In addition to standard specifications, we offer customized services including non-standard bore machining, length modifications, and specialized surface treatments. Based on a client's specific operating parameters and working conditions, we can optimize the product structure to precisely suit various types of non-standard, heavy-duty equipment.
Operating under a direct-from-factory sales model, we eliminate intermediary markups, thereby offering more competitive pricing for products of equivalent quality. Furthermore, we provide comprehensive technical documentation—including detailed drawings and installation manuals—along with dedicated one-on-one remote technical support.
