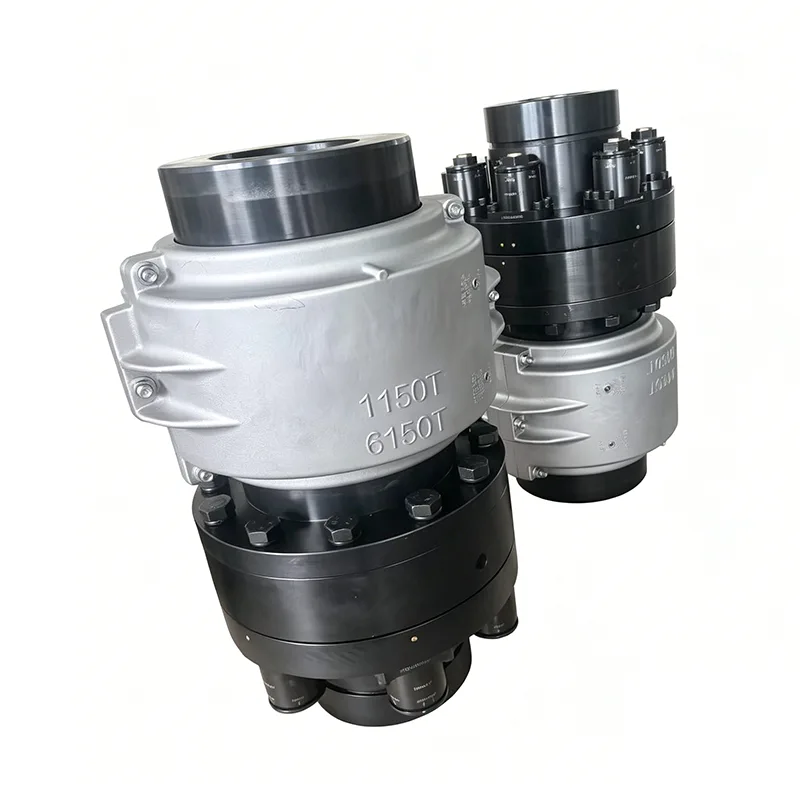

The JS Series Serpentine Spring Coupling represents a high-performance, variable-stiffness elastic metal transmission component. It serves as an advanced upgrade product, specifically designed to replace non-metallic elastic couplings in medium-to-high-speed, heavy-duty operating environments. Unlike flexible couplings made from rubber or nylon—materials prone to aging—this product eschews perishable non-metallic substances. Instead, it relies on high-strength serpentine spring strips as its core elastic torque-transmitting elements, utilizing the elastic deformation of the springs to absorb shock and counteract resonance. The complete assembly consists of two coupling halves, a protective cover housing, sealing rings, and the serpentine spring strips. Power transmission is achieved through the interlocking engagement of the spring strips within the coupling's gear slots, thereby combining the high transmission efficiency of rigid couplings with the buffering and compensation capabilities of flexible couplings.
- Complete Standard Assembly: A full unit comprises two coupling halves, two sections of the outer protective housing, two dust-proof sealing rings, and the serpentine spring strips. The total number of parts is significantly lower than that of other heavy-duty couplings with equivalent load capacities, resulting in a lower failure rate.

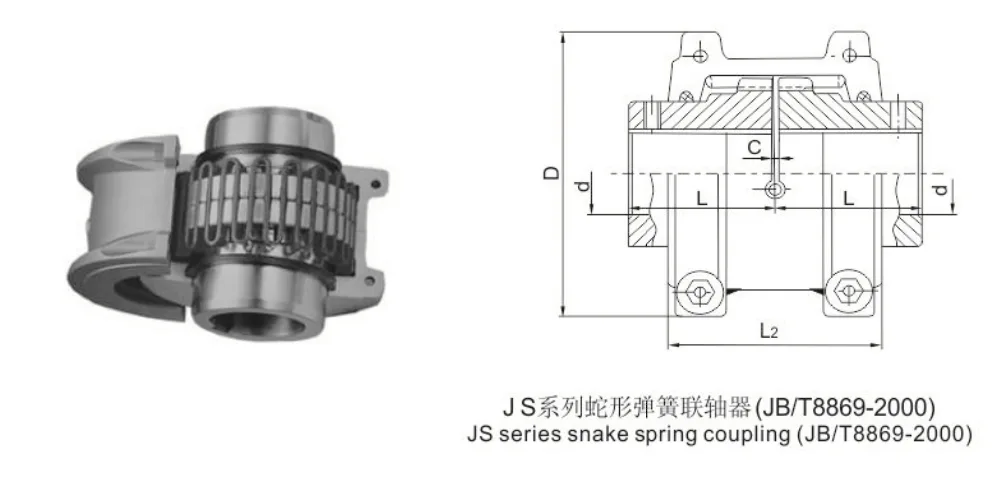

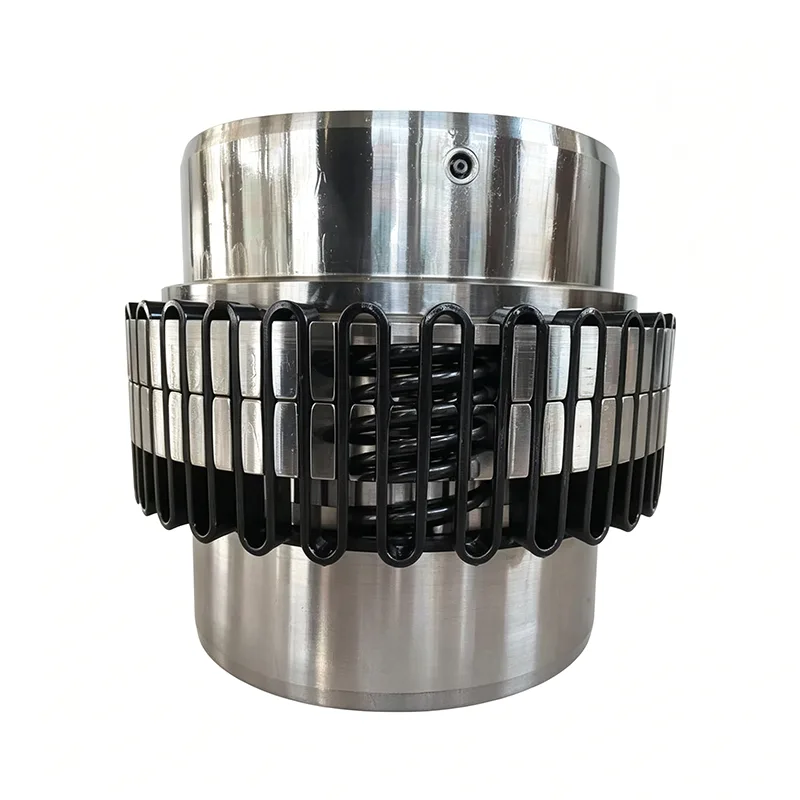

- Exclusive Axial Torque Transmission Structure: The serpentine spring strips are axially inserted and seated within the gear slots of the two coupling halves. Torque transmission is driven by the uniform pressure exerted by the flanks of the gear slots against the springs; this ensures a balanced distribution of forces, thereby preventing localized stress concentrations that could lead to structural failure.
- Enclosed Protective Design: The coupling features a split-type outer housing paired with sealing rings. This design not only secures the position of the spring strips but also effectively prevents the ingress of external dust and moisture into the engagement zone, thereby protecting both the spring strips and the gear slot structure while minimizing daily wear and tear.
The JS Series Serpentine Spring Coupling employs a variable-stiffness transmission logic based on the compressive interaction between the gear slots and the spring strips. During operation, the coupling can dynamically adjust its buffering intensity, thereby fundamentally mitigating common issues within transmission systems, such as vibration and resonance.
- Standard Power Transmission Logic: The driving shaft and driven shaft are coupled via corresponding half-couplings at each end. The side walls of the driving-side gear slots exert a circumferential force upon the serpentine springs; through the elastic deformation of these spring elements, the driven side is driven to rotate synchronously, thereby accomplishing the transmission of torque.
- High-Efficiency Shock Absorption and Vibration Suppression Mechanism: During equipment startup, shutdown, or load fluctuations, the serpentine springs undergo adaptive elastic deformation to attenuate vibrations induced by alternating loads, thereby preventing the entire transmission system from entering a state of resonance. The product boasts an average damping and vibration reduction rate exceeding 36%, delivering shock-absorbing performance that far surpasses that of standard elastic couplings.
- Variable Stiffness Adapting to Load Conditions: As the magnitude of the transmitted torque varies, the degree of elastic deformation in the spring elements changes correspondingly, automatically adjusting the overall stiffness of the coupling. This design effectively balances operational smoothness under light loads with robust load-bearing capacity under heavy loads, making it ideally suited for applications involving fluctuating load conditions.
The core elastic components are fabricated from specially customized spring steel, reinforced through a multi-stage heat treatment process. This approach effectively resolves common industry pain points associated with non-metallic elastic elements—such as susceptibility to aging, fatigue failure, and poor high-temperature resistance.
- High-Quality Spring Raw Materials: The serpentine spring elements are crafted from select, industrial-grade spring steel billets. These materials undergo a comprehensive series of precision treatments—including quenching and tempering—to ensure that their tensile strength, fatigue resistance, and toughness all meet the highest industry standards.
- Long-Lasting Durability and Minimal Wear: The metallic spring body is immune to issues such as aging, hardening, or corrosive cracking, and remains unaffected by extreme high or low-temperature operating environments. Compared to non-metallic elastic couplings (e.g., those made of rubber or nylon), this design offers a significantly extended overall service life.
- Adaptability to Complex Alternating Loads: The JS Series Serpentine Spring Coupling is engineered to withstand prolonged exposure to frequent start-stop cycles, bidirectional shock loads, and high-speed reciprocating deformation. Even when operating continuously within high-load, alternating-stress environments, it maintains stable mechanical performance and exhibits minimal susceptibility to elastic degradation.
- Ultra-High Transmission Efficiency: Utilizing a surface-contact transmission mechanism between the gear slots and the spring elements, the coupling minimizes power loss. Its overall transmission efficiency can reach as high as 99.47%, delivering energy utilization rates that outperform the vast majority of flexible transmission couplings currently available.
- Bidirectional Overload Protection: Features short-term overload buffering capabilities, with an ultimate load capacity reaching up to twice the rated torque. This allows it to effortlessly absorb instantaneous peak loads, thereby preventing catastrophic failures—such as shaft breakage or gear tooth collapse—caused by sudden overloads.
- Multi-Dimensional Misalignment Compensation: Leveraging the multi-directional deformation characteristics of its serpentine springs, the coupling can simultaneously compensate for axial, radial, and angular installation misalignments. This lowers the installation threshold regarding shaft coaxiality, making it ideally suited for integration into existing equipment where alignment deviations may exceed standard tolerances.
- Compact and Lightweight Structure: The JS Series Serpentine Spring Coupling features a compact footprint and a lightweight design. For a given torque rating, it occupies significantly less installation space compared to other coupling types, making it perfectly suited for use within confined or enclosed transmission systems.
- Simplified Assembly and Disassembly: Each coupling unit utilizes only 2 to 4 spring elements, ensuring a simple and intuitive assembly/disassembly sequence. Compared to diaphragm or gear-type couplings, the complexity and difficulty associated with inspection and component replacement are drastically reduced.
- Low-Frequency Routine Maintenance: The metal springs require no frequent replacement, while the sealed housing structure effectively protects internal components. Routine maintenance is limited to periodic checks of the housing's fastening status and lubrication levels, eliminating the need for the periodic replacement of elastic wear parts typically required by other coupling types.

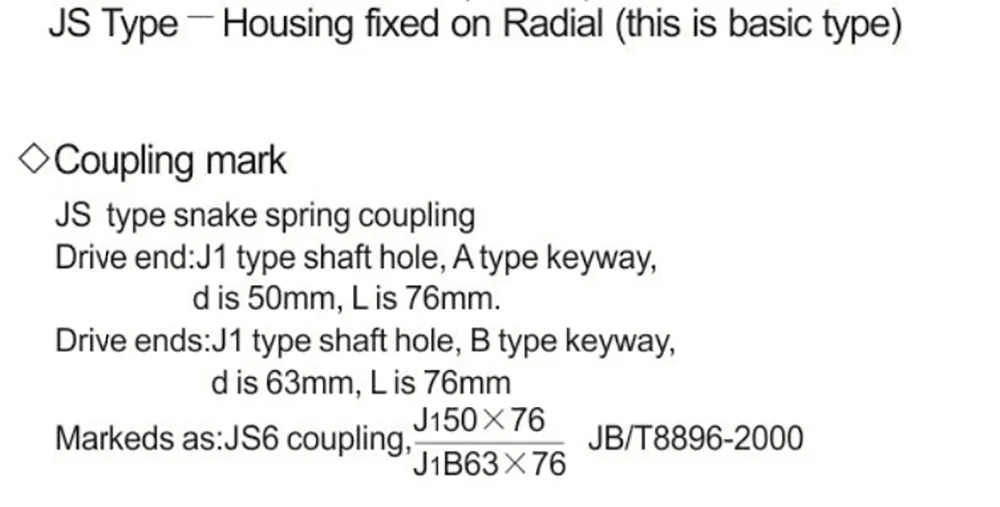

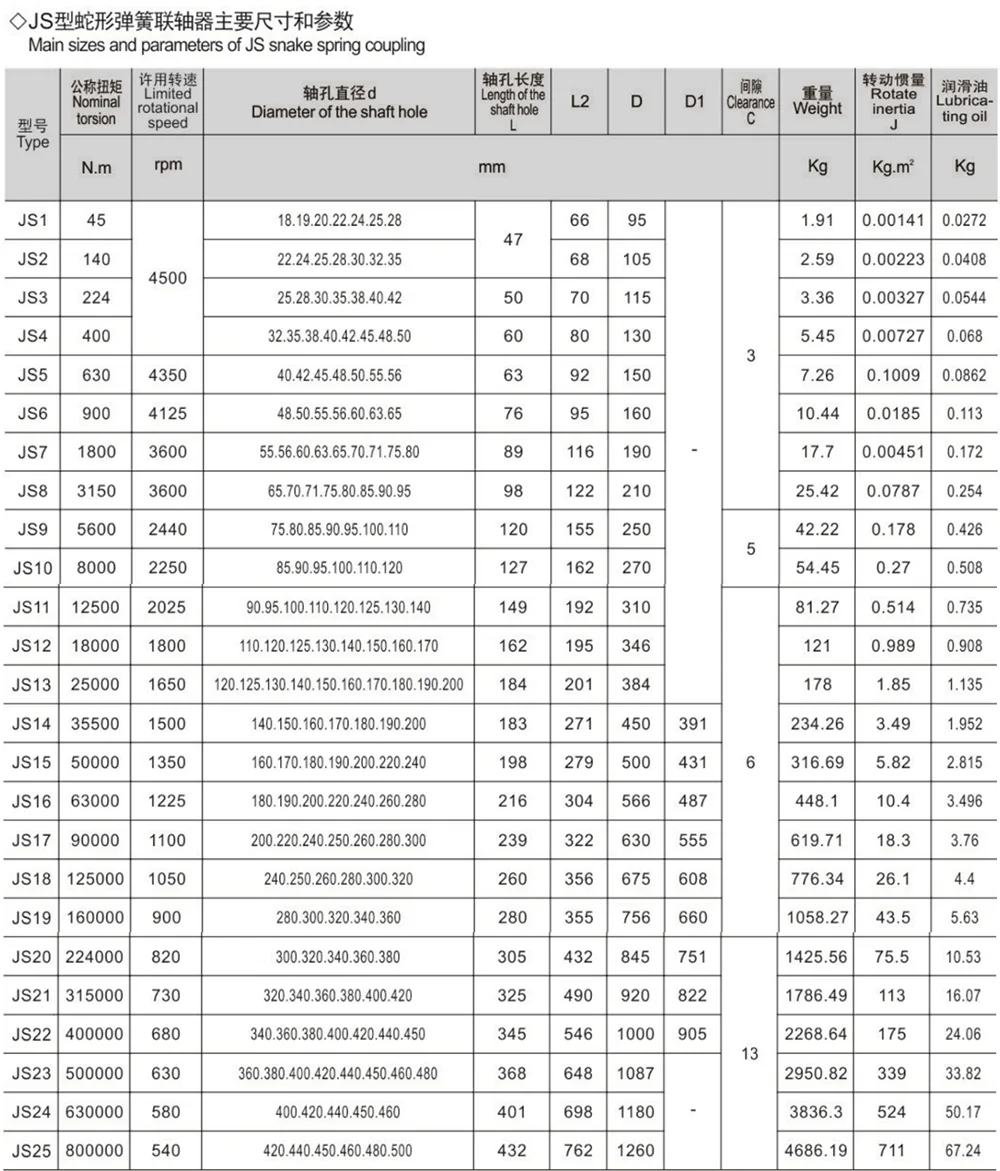

Note: 1. Please consult with our technology department when you select shaft holes (GB/T 3852). 2. Calculating weight and rotating inertia as no hole status.
