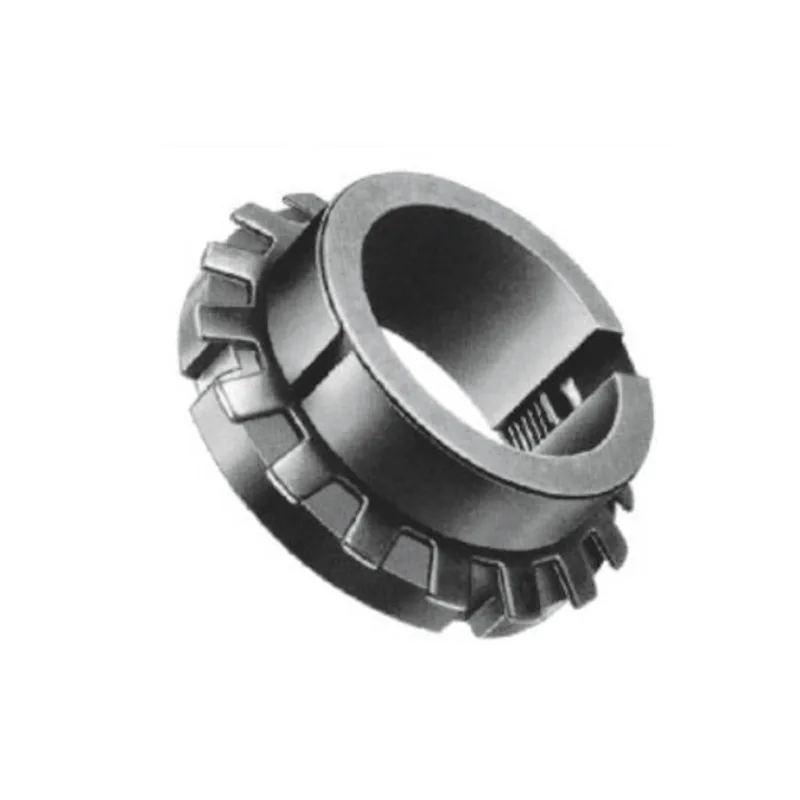

Type Z9 Locking Assembly

The Type Z9 Locking Assembly is a proprietary, lightweight, yet heavy-duty keyless locking component developed by Jiteng Machinery. Its operation relies on the principle of precision conical self-locking for power transmission. Boasting a slim, compact profile that occupies minimal installation space, it provides uniform and stable clamping force, making it compatible with both solid and hollow shafts of various types. It is specifically engineered for applications involving confined spaces, medium-to-heavy loads, and frequent start-stop operations, finding widespread application in general machinery—including automation systems, woodworking equipment, and packaging machinery.

Lightweight Design and Space-Saving Advantages

Distinguishing itself from conventional, bulky expansion sleeves, the Type Z9 features a thin, lightweight structural design. For any given torque rating, it offers a smaller overall footprint and a thinner profile—specifically engineered to resolve assembly challenges within equipment characterized by compact internal spaces and restricted layouts.

1. Smaller Footprint for Equivalent Torque: While maintaining standard medium-to-heavy load-bearing capabilities, the assembly features a slim, streamlined structure. Its thickness and overall volume are superior to those of standard expansion sleeves with equivalent torque specifications, effectively achieving a "small size, high load" performance ratio.

2. Optimized for Compact Equipment Layouts: Designed with the confined installation spaces found in automation systems and precision light industrial machinery in mind, the assembly occupies no excess space once installed. This facilitates a neat and organized internal layout for the host machine, thereby supporting the transition toward lighter-weight and more integrated equipment designs.

3. High Versatility Across Shaft Diameters: The Type Z9 Locking Assembly enables power transmission connections for a wide variety of solid and hollow shaft specifications. Its broad range of compatible shaft diameters ensures high versatility, allowing it to be utilized across multiple types of equipment without the need to frequently switch between different component models.

Load Buffering and Shaft Protection Capabilities

1. Buffering Instantaneous Impact Loads: During the start-up and shut-down phases of equipment operation, instantaneous impact forces and sudden torque fluctuations are generated. The Type Z9 Locking Assembly’s uniform clamping structure effectively buffers these impact forces, thereby mitigating the mechanical stress—or "hard stress"—imposed on the transmission system by abrupt load changes.

2. Elimination of Stress Concentration Damage: By discarding the inherent drawback of single-point load bearing associated with traditional key connections, the system achieves uniform load distribution across the entire contact area. This completely eliminates stress concentration issues within the shaft and hub, thereby preventing failures such as shaft deformation, surface damage, and component cracking.

3. Extended Service Life of Core Components: Through its characteristics of cushioning load impacts and ensuring uniform torque transmission, the system significantly reduces the wear rate of critical drivetrain components—such as main shafts, bearings, and hubs—thereby effectively extending the operational lifespan of the entire machine's core assemblies.

Weather Resistance and Environmental Adaptability

1. Superior Dust and Rust Resistance: Featuring an enhanced surface protection process, the assembly exhibits excellent resistance to dust and rust. It is capable of long-term, reliable operation in standard industrial workshop environments characterized by the presence of dust, mild humidity, or minor oil contamination.

2. Stability in Fluctuating Temperatures: The material possesses stable physical properties; consequently, it remains secure—neither loosening nor seizing—when subjected to environmental temperature fluctuations involving thermal expansion and contraction. This prevents issues such as loosening of the locking mechanism, jamming, or corrosion-induced seizing.

3. All-Weather Stable Clamping and Torque Transmission: The Type Z9 Locking Assembly remains unaffected by minor disturbances typical of standard operating environments. It maintains consistent clamping torque and transmission precision throughout the year—day and night—demonstrating exceptional stability and adaptability across a wide range of operating conditions.

Advantages in High-Efficiency Transmission

1. Zero-Backlash Transmission with Minimal Loss: The tapered surfaces achieve a tight, gap-free fit, ensuring power transmission without any "dead travel" or lag. This completely eliminates power losses caused by mechanical backlash, resulting in a substantial increase in transmission efficiency.

2. Reduced Equipment Energy Consumption: The highly efficient and precise power transmission structure minimizes the consumption of ineffective energy. During long-term, continuous operation, this effectively lowers the equipment's overall energy footprint, thereby reducing production operating costs.

3. Consistent Enhancement of Production Capacity: The equipment's transmission system operates with greater efficiency and smoothness—free from power interruptions or rotational speed decay. This consistently upholds operational efficiency, leading to a steady and reliable increase in the enterprise's overall production capacity.

Applicable Scenarios

The Type Z9 Locking Assembly is specifically engineered for lightweight yet heavy-duty transmission applications. Compatible with a wide variety of equipment types, it serves as the ideal component choice for transmitting heavy loads within confined or space-constrained environments. Widely applied in various types of light industrial and general heavy-duty equipment, including automation systems, woodworking machinery, packaging machinery, auxiliary metallurgical equipment, speed reducers, industrial fans, water pumps, and conveying systems.

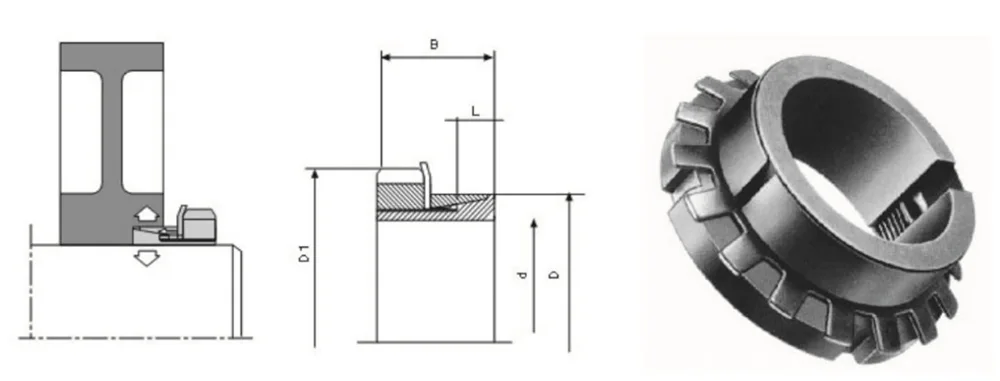

Basic Dimensions and Parameters of Type Z9 Locking Assemblies

FAQ

Q1: What is the core difference between the Type Z9 Locking Assembly and standard heavy-duty locking assemblies?

A1: The Z9 is primarily characterized by a compact, lightweight, yet heavy-duty design. For equivalent torque capacities, it features a smaller overall volume and a thinner profile. It is specifically engineered for assembly scenarios where internal equipment space is limited, effectively balancing a compact form factor with robust load-bearing performance. It serves as an exclusive, specialized component for precision automation and light industrial equipment.

Q2: Can this unit be installed and operated normally in confined installation spaces?

A2: The Z9 features a custom-engineered compact structure, developed specifically for equipment with tight spatial layouts. It occupies minimal space and allows for convenient installation and removal; assembly difficulties caused by spatial constraints are completely avoided, making it perfectly suited for various types of integrated precision equipment.

Q3: Is the Z9 Locking Assembly suitable for equipment involving frequent start-stop cycles?

A3: The Z9 possesses excellent shock-absorbing and load-dissipating capabilities. It can effectively absorb the impact stresses generated by frequent start-stop operations or sudden load fluctuations, thereby protecting the shaft from damage and completely eliminating issues related to loosening or slippage. It is ideally suited for continuous-operation environments involving high-frequency start-stop cycles.

Q4: What advantages does the Z9 Locking Assembly offer in terms of transmission efficiency compared to traditional keyed connections?

A4: Traditional keyed connections are prone to issues such as fitting backlash (clearance), power transmission lag, and significant wear-related losses. In contrast, the Type Z9 Locking Assembly utilizes a zero-backlash, self-locking tapered surface mechanism. This ensures lossless power transmission, rapid response times, and low energy consumption. It maintains stable operational efficiency over the long term and is free from issues related to torque degradation.
